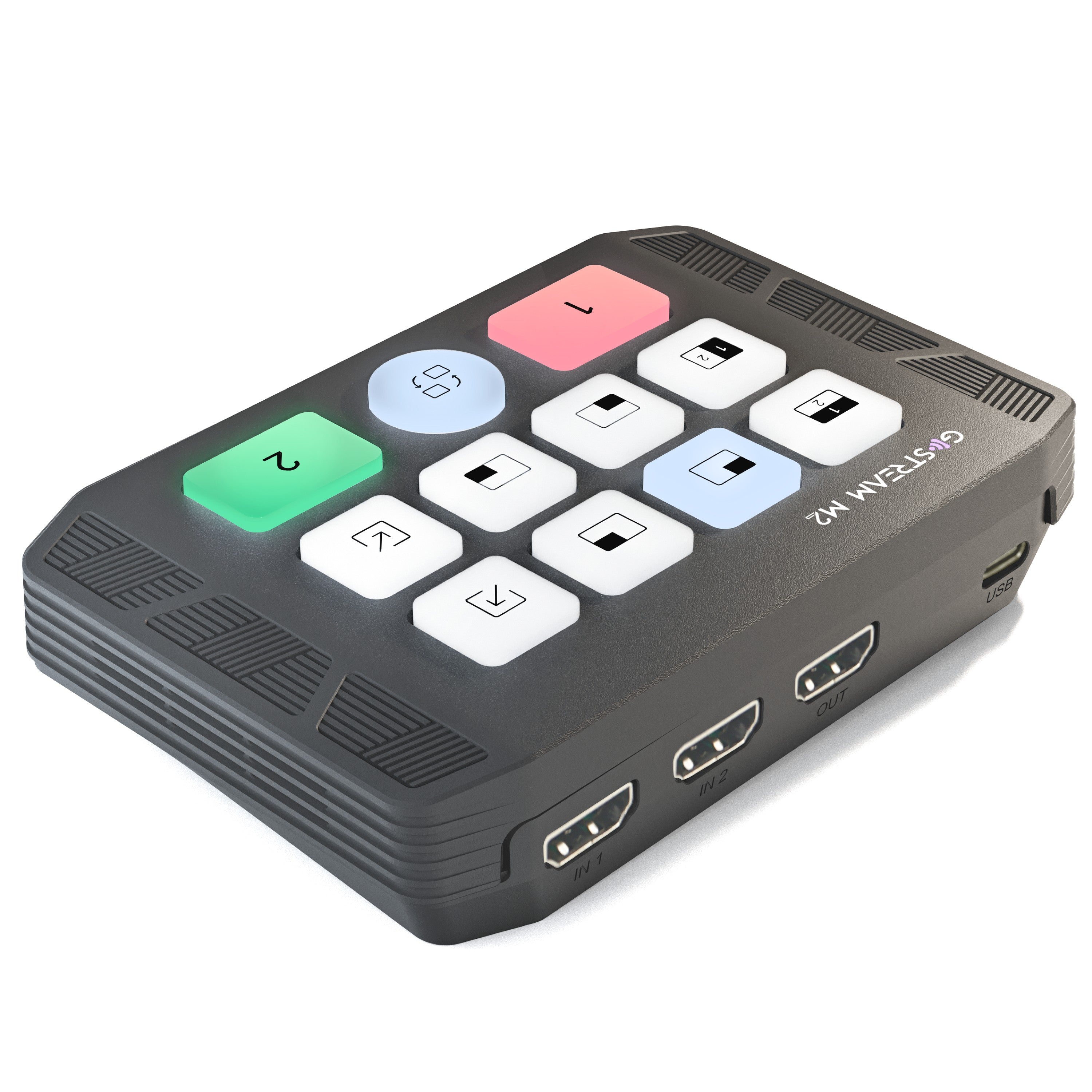

OSEE GoStream M2 is a compact capture card with two HDMI inputs, featuring built-in switching and video effects. It allows users to switch between two HDMI sources or display both sources simultaneously using PIP or PBP layouts, with video output via HDMI and USB-UVC.

GoStream M2 is designed for users who need flexible management of two HDMI video sources for live streaming, conferences, or recording. Typical use cases include switching between a camera and a computer for presentations or combining two camera signals in podcasts and educational videos.

The device accepts HDMI input signals up to 4K@60p and scales the output to 1080p@60p for both HDMI monitoring and USB-UVC recording. The USB connection is plug-and-play and recognized by most streaming and conferencing software as a standard webcam.

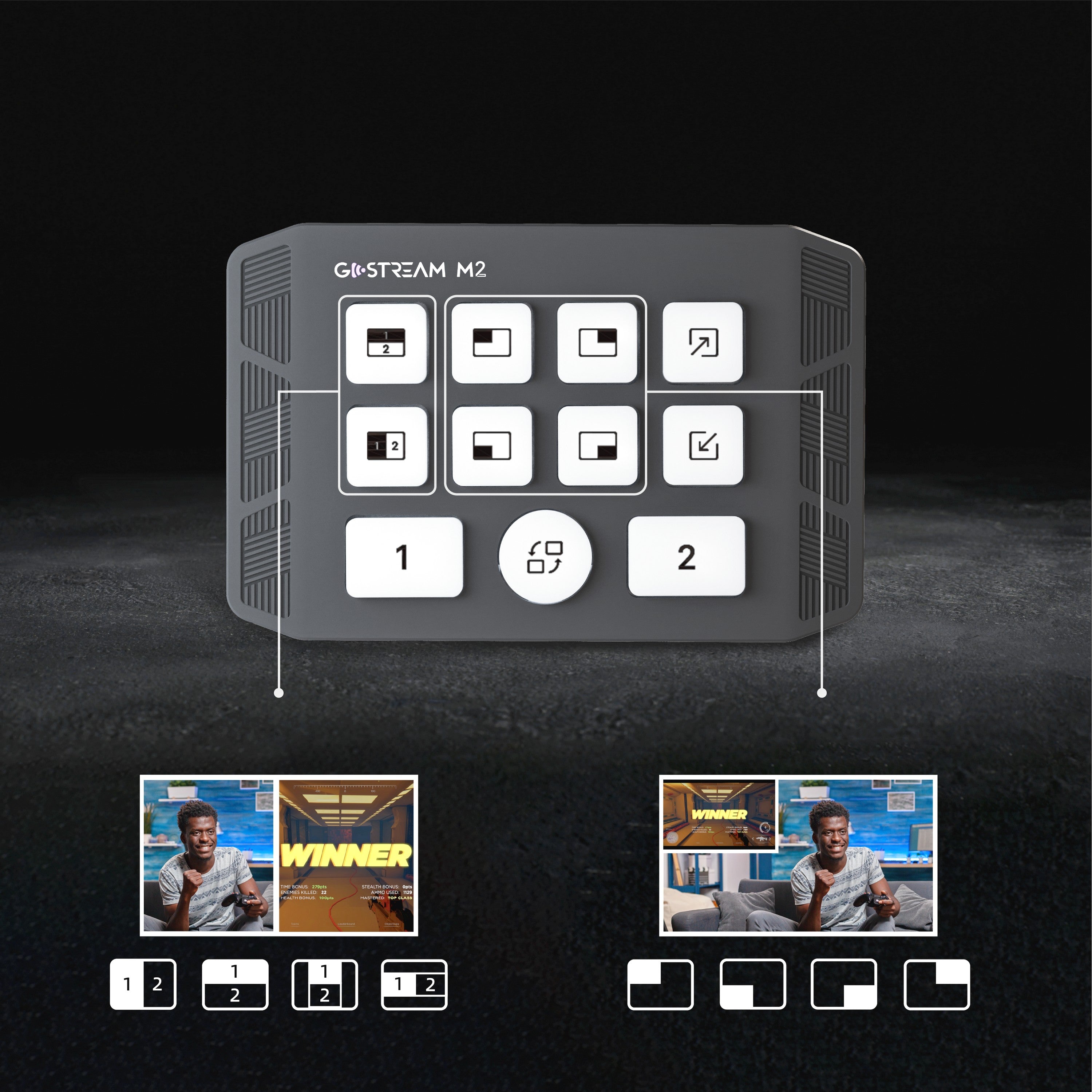

In addition to simple source switching, GoStream M2 offers picture-in-picture and picture-by-picture layouts selectable via dedicated hardware buttons. Independent microphone, line-in, and headphone inputs allow direct audio integration without the need for an external mixer.

Technical Specifications
HDMI Inputs:
2 × HDMI (up to DCI/UHD 4K at 60p)
HDMI Output:
up to 1080p at 60p
USB Output:
USB-C / USB 3.0, UVC compatible
up to 1080p @ 60p
Output Formats:
1080p / 720p / 480p
Color Formats:
YUV 4:2:2
RGB 24
Video Effects:
Picture-in-picture (multiple layouts)
Picture-by-picture (multiple layouts)
Audio Inputs:
HDMI audio
3.5 mm microphone input
3.5 mm line input
Audio Outputs:
HDMI audio
USB audio
3.5 mm headphone output
Power Consumption: approximately 5 W
Dimensions: approximately 122 × 80.6 × 27 mm
Weight: approximately 0.15 kg

Features and Characteristics
Switching between two HDMI sources
Dual HDMI capture with USB-UVC output
One-touch PIP and PBP layouts
Plug-and-play operation without drivers
Low latency
Dedicated audio input and monitoring
Compact and portable design

Advantages / Unique Features
Two HDMI sources in one capture device
No driver installation required
Compatible with OBS, Zoom, Teams, and similar software
Flexible layouts with multiple sources in one stream
Suitable for solo operators and mobile setups

Typical Applications
Live streaming and content creation
Video conferencing and presentations
Podcasts and tutorials
Game streaming
Training and educational environments
