Key Features

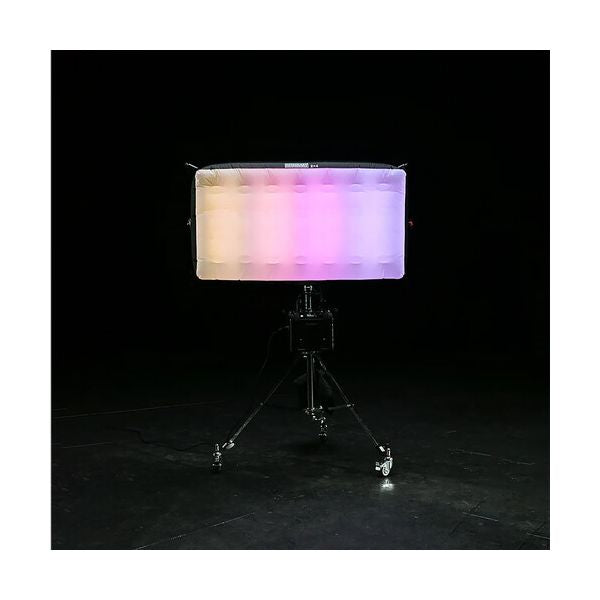

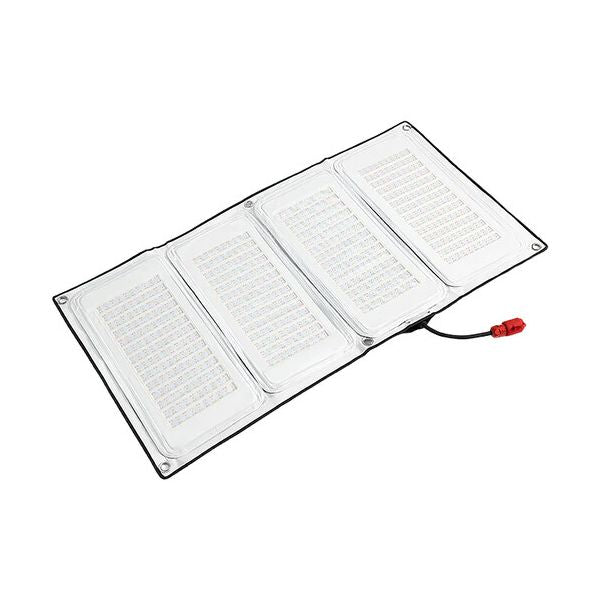

Modular Full-Color RGBWW LED Light Mat
Multiple Mounting & Rigging Methods
Control Box for Multiple LED Mats
Control Box with V-Mount (400W)
2000 to 10,000K CCT
96 CRI, 97 TLCI

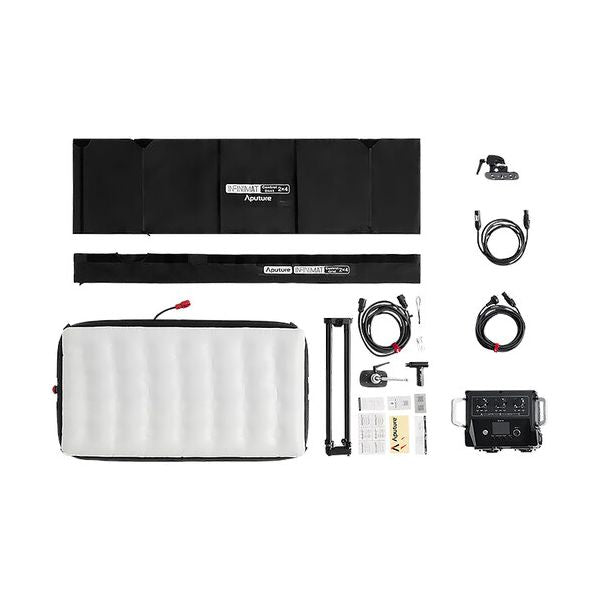

Skirt & Inflatable Softbox Included
Double the Output
The INFINIMATs are significantly higher in brightness than competitors of the same size, some double the intensity. The increased output makes the INFINIMATs more useful in a variety of production settings, even daylight.
One Controller, Infinite Options
INFINIMAT Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick. Control up to 3 INFINIMATs with the 400W Control Box, and up to 5 mats with the 1600W box.
Infinite Shapes, Minimal Size

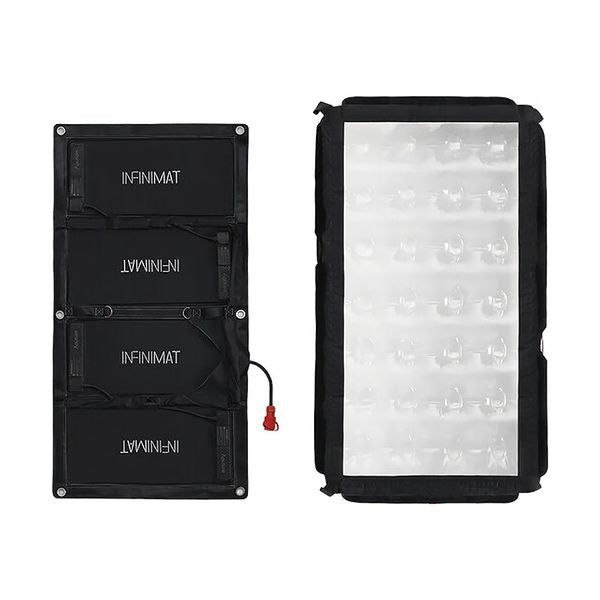

INFINIMATs can be used with or without the airbag, strapped in place or mounted to their frames. The airbags quickly inflate/deflate and the lights take up less space on set compared to traditional diffused setups such as book lights. Even the 20x20 is quicker to set up than a standard overhead rig. When not in use, the INFINIMATs pack down small for storage.
Pixel Control at Scale
All INFINIMATs are color tunable and are configured in 1x2 or 2x2 pixels. The INFINIMAT pixels can be controlled over DMX systems for active motion effects.
Rental Grade Construction
INFINIMATs are designed to last. IP65 weather protection means a sealed system, which also includes metal backing plates for heat dispersion, rigidity, and physical protection for the LEDs. The internal design of the mats and control box are modular for easy service.
Ultra Low Dimming
The INFINIMATs utilize a dual-dimming internal control system which allows them to dim to extremely low levels without color shift and with fine gradients for a smooth transition. Dimming to as low as 0.1% is possible, up to ten times dimmer than the competition.
Portable Travel Kits

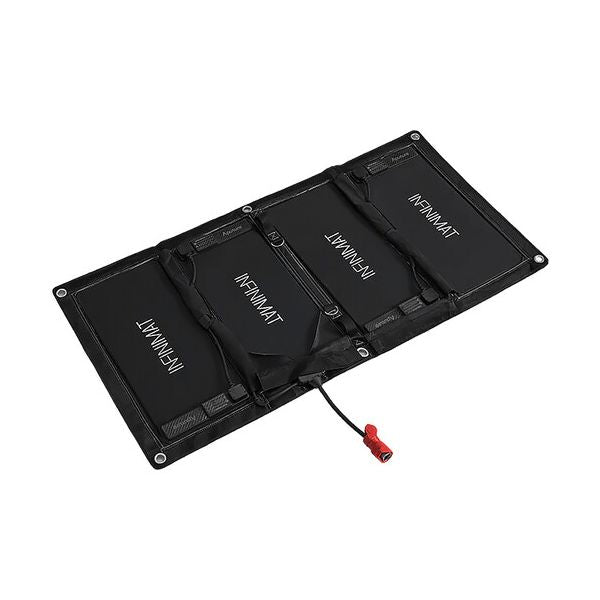

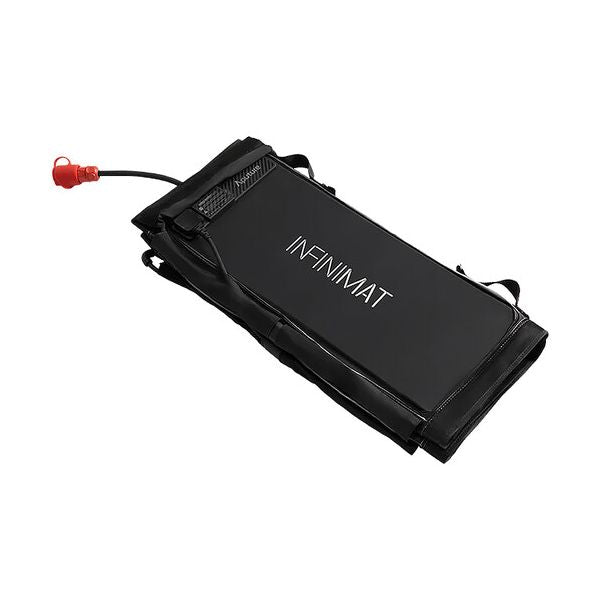

INFINIMATs can store inside their travel cases for shipping and when on set can be staged in their included zipper bags, taking up little space while ready for use. On the 4x4 and smaller sizes the airbag stores deflated on the mat, saving setup time and storage space.

Specifications
CCT: 2,000K – 10,000K
CRI ≥96; TLCI ≥97; CQS ≥95
SSI (Tungsten) 84; SSI (D56) 73
TM-30 RF (Average) 92
TM-30 RG (Average) 100
Max Power Consumption 111W
Max Power Output 81W
Weather Resistance Rating IP65
Pixel Count 1 pixels
Pixel Module 1x2
Softbox Inflation Time (Air Pump Mini) 18 sec
Full-Inflation Duration 7 days
Operating Voltage DC1 & DC2 12V-16.8V 22V-33.6V
Operating Voltage AC 100V ~ 264V
Operating Temperature -20°C ~ 50°C
Storage Temperature -20°C ~ 85°C
Control Methods
On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
Firmware Upgradeable via Sidus Link, USB Drive
Wireless Range (Bluetooth & CRMX) ≤100m
Control Box
INFINIMAT Control Box 400W
Control Box Fan Noise Levels High Speed Mode 29.3 dBA
Control Box Fan Noise Levels Medium Speed Mode 24.7 dBA
Dimensions
INFINIMAT 2x4 122.00 x 63.50cm
INFINIMAT Air Pump Mini 3.60 x 11.40 x 12.60cm
Control Box 400W 33.50 x 22.00 x 24.00cm
Inflatable Softbox 2x4 122.00 x 64.00 x 17.00cm
Light Control Skirt 2x4 350.00 x 50.00cm
Light Control Grid 2x4 120.00 x 56.00cm

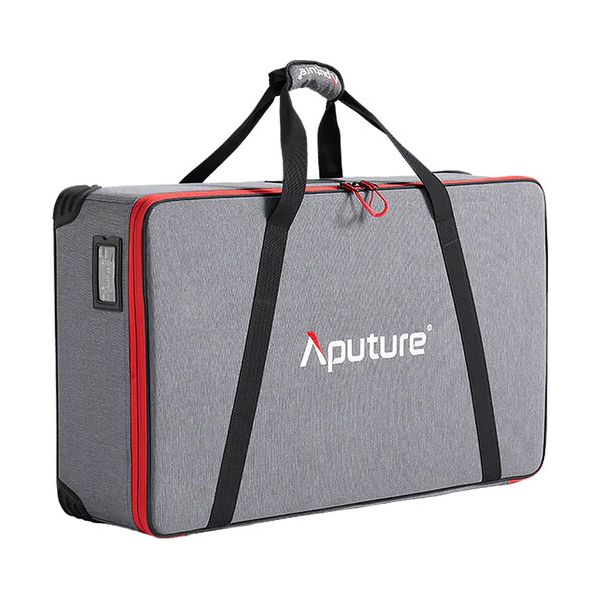

Carrying Case (INFINIMAT & Softbox Pack 2x4) 76.50 x 47.00 x 26.00cm
Carrying Case (Control Box 400W Pack) 43.50 x 39.50 x 31.40cm
Weight
INFINIMAT 2x4 4.80kg
INFINIMAT Air Pump Mini 0.24kg
Control Box 400W 7.2kg
Inflatable Softbox 2x4 1.22kg
Light Control Skirt 2x4 0.81kg
Light Control Grid 2x4 0.93kg
Carrying Case (INFINIMAT & Softbox Pack 2x4) 4.00kg
Carrying Case (Control Box 400W Pack) 2.9kg

Photometrics
No Modifier
2,000K    1m    9,390 lux 873 fc
2,000K    3m    1,251 lux 116 fc
3,200K    1m    11,060 lux 1,029 fc
3,200K    3m    1,459 lux 136 fc
4,300K    1m    11,730 lux 1,091 fc
4,300K    3m    1,526 lux 142 fc
5,600K    1m    12,510 lux 1,163 fc
5,600K    3m    1,630 lux 152 fc
6,500K    1m    12,360 lux 1,149 fc
6,500K    3m    1,608 lux 150 fc
10,000K    1m    11,060 lux 1,029 fc
10,000K    3m    1,439 lux 134 fc

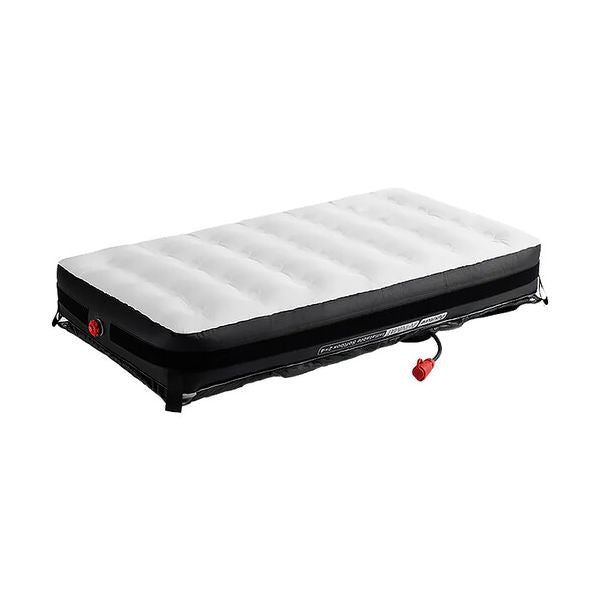

Inflatable Softbox
2,000K    1m    8,500 lux 791 fc
2,000K    3m    939 lux 87 fc
3,200K    1m    10,020 lux 932 fc
3,200K    3m    1,115 lux 104 fc
4,300K    1m    10,500 lux 977 fc
4,300K    3m    1,170 lux 109 fc
5,600K    1m    11,250 lux 1,046 fc
5,600K    3m    1,247 lux 116 fc
6,500K    1m    11,160 lux 1,038 fc
6,500K    3m    1,234 lux 115 fc
10,000K    1m    10,020 lux 932 fc
10,000K    3m    1,107 lux 103 fc

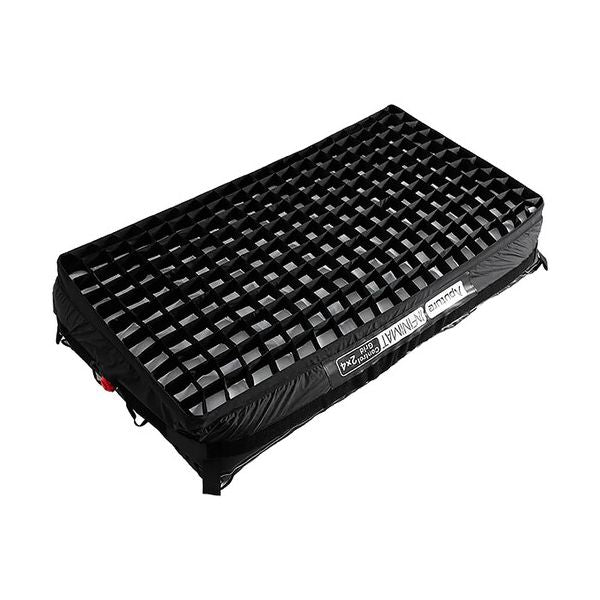

Inflatable Softbox + Grid
2,000K    1m    5,350 lux 498 fc
2,000K    3m    767 lux 71 fc
3,200K    1m    6,220 lux 578 fc
3,200K    3m    890 lux 83 fc
4,300K    1m    6,470 lux 602 fc
4,300K    3m    913 lux 85 fc
5,600K    1m    7,010 lux 652 fc
5,600K    3m    988 lux 92 fc
6,500K    1m    6,940 lux 645 fc
6,500K    3m    982 lux 91 fc
10,000K    1m    6,220 lux 578 fc
10,000K    3m    877 lux 82 fc
