• All the Thunderbolt you’ve always wanted: Add more speed and more fully functional Thunderbolt ports to your computer
• Plug it all in: The same Thunderbolt device compatibility whether plugged into this dock or directly into your machine
• Reinvent the chain: Create multiple independent “tree branches” and connect multiple bus-powered devices.
• Powerful charging capabilities: Thunderbolt 4 host port also keeps your notebook charged1
• Four USB ports: Connect and charge through USB
• Manage additional devices: Connect more storage, up to two 4K displays or one 5K/6K/8K display, and accessories... you name it, you can use it
• More reliable sharing and streaming: Gigabit Ethernet eliminates low-quality, patchy Wi-Fi — ideal for IP-based workflows and secured networks
• More content: Access photos and movies via the SD card reader at speeds up to 312MB/s
• More audio: Plug headphones and mics into the audio combo jack
• Adjustable LED: Customize the illumination for your work setting
• Built-in security: Kensington Security Slot™ and and Nano Security Slot™ for anti-theft cabling
• Highly compatible: Thunderbolt certified for Mac and Windows
• Worry-free: 2 Year OWC Limited Warranty

Connectivity And Convenience Galore

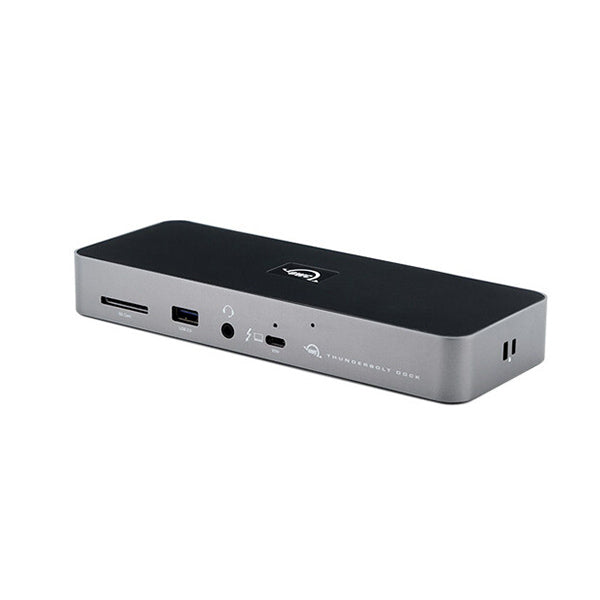

Massively expand the functionality of your port-limited Apple M1 Mac, Apple 'Intel' Mac with Thunderbolt 3, or any Thunderbolt 4 PC with the OWC 11-Port Thunderbolt Dock. Gain convenient access to portable gear, headphones, and SD cards. Add your favorite Thunderbolt and USB devices. Connect Gigabit Ethernet networking for your workflow... all while keeping your space free of cable clutter.

• 4) Thunderbolt (USB-C) ports
• (3) USB-A (10Gb/s) ports
• (1) USB 2.0 port
• (1) Gigabit Ethernet port
• (1) SD card Slot
• (1) 3.5 mm headphone jack
• Connect a single display up to 8K
• Connect two displays up to 4K
• 96W of laptop charging power

Compatibility Facilitates Connectivity

When the latest Thunderbolt appeared on Macs and PCs, it used a USB-C connector to deliver data transfer, video output, and charging power through the same cable. The OWC 11-Port Thunderbolt Dock’s Thunderbolt ports use that same USB-C connector to create a multi-connectivity solution for 100s of millions of existing and future Thunderbolt computers and devices. Even the ports are fully USB4 future compatible.

The Past, Present, And Future Is Yours

The OWC 11-Port Thunderbolt Dock adds three Thunderbolt ports and four USB ports to your computer to let you to connect to past, present or future Thunderbolt and USB devices. Up to dual 4K displays or a 5K/6K/8K display, high-performance storage (including NVMe solutions), A/V mixers, a phone or tablet, even desktop accessories like a keyboard or mouse are all fair game. All accessories with past, present or future USB or Thunderbolt interfaces... all connect to the OWC 11-Port Thunderbolt Dock.

Connectivity Reimagined

Daisy chains are sensitive things. Removing any device besides than the last one will break your chain and render devices unusable until the chain is re-established. The OWC 11-Port Thunderbolt Dock lets you create three separate “tree branches,” so you can remove devices from one chain without affecting or disconnecting the other. You can even take things up a notch by adding three Thunderbolt bus-powered devices.

Feature Spotlight: add three Thunderbolt bus-powered devices to your chain such as the OWC Envoy Pro EX, OWC Thunderbolt 10G Ethernet Adapter, and OWC Envoy Express

Unleash Multi Drive Performance

In the past, to daisy chain external storage you had to place your drive as close as possible to the front of the chain for fast and reliable performance. That wasn’t possible with bus-powered drives. They had to be placed last in the Thunderbolt chain… and the chain was limited to just one bus-powered device! Now, you can connect multiple portable SSDs directly to the OWC 11-Port Thunderbolt Dock.

Get Wired

Nothing can put your work schedule behind faster than slow, low-quality Wi-Fi. Make bad connection a thing of the past by plugging into a wired network via the OWC 11-Port Thunderbolt Dock’s Gigabit Ethernet port. You can enjoy uninterrupted downloads, fast and reliable file transfers, secure network access, and increased productivity in a collaborative, IP-based workflow.

SD Card Reader

Photo and video creation have become a part of daily life. And it’s a necessity to get that content to your computer safely. The OWC 11-Port Thunderbolt Dock’s SD card reader lets you transfer your creative files quickly, easily, and conveniently. You can even use the reader like an external drive to store or backup files at will.

A Higher Vision

Thanks to its Thunderbolt technology, the OWC 11-Port Thunderbolt Dock lets you connect up to a single 5K/6K/8K display, or up to two 4K displays. Enjoy more precise, vivid details in graphic-intensive CAD drawings. Up your Photoshop image game. Edit large format video on one display while previewing the raw playback on the other. Attend a video meeting on one screen while editing content on another screen. Whatever your workstation display needs, the OWC 11-Port Thunderbolt Dock gives you the connectivity you need to execute your vision.

Detailed Specs

Memory Card Slots

• (1) SD

Power Delivery

• Thunderbolt 4 host port provides up to 96W of power to the host computer.
• Thunderbolt 4 device ports (for external drives and other devices) provide 15W of power.
• USB port provides up to 1.5A of power for bus-powered drives and device charging.

Device Ports

• (1) Host Port - Thunderbolt 4 (USB-C) up to 40 Gb/s (5000 MB/s)
• (3) Thunderbolt 4 (USB-C) Ports
• (3) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
• (1) USB 2.0 Port
• (1) Gigabit Ethernet (GbE) RJ-45 Port
• (1) 3.5mm Stereo Audio Input/Output Combo Port

Display Support

• Up to one 8K display @ 60Hz,
• or two 4K displays @ 60Hz,
• or one 4K display @ 120Hz,
• or one 4K display @ 60Hz,
• or two 5K displays @ 60Hz

Display Support by Port

• Thunderbolt 4: Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 4 display or other display that supports USB-C connections and DisplayPort 1.4

Ethernet Speeds (RJ-45)

• 1Gb/s "Gigabit" (1000BASE-T)
• 100Mb/s (100BASE-T)
• 10Mb/s (10BASE-T)

Data Rate

• Up to 40Gb/s

Chipset

• Thunderbolt: Goshen Ridge
• USB: Cypress/HX3PD
• Ethernet: RTL8153B
• SD Reader: GL3226

Host Port Requirements

• Thunderbolt (USB-C) or USB (USB-C or USB-A1) port

Mac OS Compatibility

• macOS 11.x Big Sur
• macOS 12.x Monterey
• macOS 13.x Ventura
• macOS 14.x Sonoma

PC OS Compatibility

• Windows 10 64-bit Edition
• Windows 11

Mobile OS Compatibility

• iPadOS 17
• iPadOS 16
• iPadOS 15
• iPadOS 14
• iPadOS 13
• Android 13.x
• Android 12.x
• Android 11.x

Other OS Compatibility

• Chrome OS

External Power Adapter

• Yes

Power Supply

• External UL-listed universal auto-switching power supply
• Need an additional power supply? Secondary/replacement power supplies are also available.

AC Input

• 100-240V, 50-60Hz, 2.5A

DC Output

• +20V, 6.75A

Wattage

• 135W

Replacement Adapter Part Number

• OWCPWR20V150W (sold separately)

Security Slot

• Yes

Housing Color

• Chassis: Space Gray
• Covers: Black

Housing Material

• Chassis: Aluminum
• Covers: Polycarbonate

Dimensions

• Height: 2.6 cm (1.0 in)
• Length: 7.3 cm (2.9 in)
• Width: 19.8 cm (7.8 in)

Weight

• 400.0 g (0.88 lbs)

Certifications

• BSMI
• CE
• FCC
• RCM
• VCCI

RoHS Compliant

• Yes

Reach Certification

• Yes

Ambient Temperature

• Operating: 32°F to 86°F (0°C to 30°C)
• Non-Operating: -4°F to 140°F (-20°C to 60°C)

Altitude

• Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
• Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

Humidity

• Operating: 5% to 95% non-condensing
• Non-Operating: 5% to 95% non-condensing

1. Works with Thunderbolt 4, Thunderbolt 3, USB4, and USB host computers and mobile devices. Thunderbolt/Thunderbolt 2 Mac models are supported via USB-A host connection. Thunderbolt/Thunderbolt 2 host connection is not supported.
   - With a USB host (such as a USB-C equipped MacBook, iPad, Chromebook, Android device, or PC), this device works as a USB hub. Bandwidth is reduced to USB speeds, Thunderbolt devices are not supported, and additional functionality will vary depending upon the host port's capabilities.
   - With a USB-C host, displays and power delivery support will depend upon the host port's capabilities.
   - With a USB-A host, displays and power delivery are not supported. Requires a USB-C to USB-A adapter (available separately).
2. Works with Thunderbolt (USB-C), Thunderbolt/Thunderbolt 2 (mDP), and USB devices. Thunderbolt/Thunderbolt 2 (mDP) device support requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately) and provides data transfer at up to 20Gb/s.
3. Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers.
   Apple silicon M1/M2/M3 Pro, M1/M2/M3 Max, and M1/M2 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K @ 60Hz via Thunderbolt.
   Apple silicon M1/M2/M3 Mac models can support one external display up to 4K @ 60Hz via Thunderbolt.
4. The following Apple silicon M1/M2/M3 Mac models support a single display over a Thunderbolt port:
   - MacBook Pro (14-inch, M3, 2023)
   - MacBook Pro (13-inch, M1, 2020) - MacBookPro17,1
   - MacBook Pro (13-inch, M2, 2022) - Mac14,7
   - MacBook Air (M1, 2020) - MacBookAir10,1
   - MacBook Air (M2, 2022) - Mac14,2
   - Mac mini (M1, 2020) - Macmini9,1
5. The following Mac models provide only partial support for DisplayPort 1.4, including limiting resolution to 5K or 6K at 60Hz. Please review Apple's display specifications for your specific Mac to determine the maximum supported resolution and color depth:
   - MacBook Pro (15-inch, 2018) - MacBookPro15,1
   - MacBook Pro (13-inch, 2018, Four Thunderbolt 3 ports) - MacBookPro15,2
   - MacBook Pro (13-inch, 2019, Four Thunderbolt 3 ports) - MacBookPro15,2
   - MacBook Pro (15-inch, 2019) - MacBookPro15,1 and MacBookPro15,3
   - MacBook Pro (13-inch, 2019, Two Thunderbolt 3 ports) - MacBookPro15,4
   - MacBook Pro (16-inch, 2019) - MacBookPro16,1 and MacBookPro16,4
   - MacBook Pro (13-inch, 2020, Four Thunderbolt 3 ports) - MacBookPro16,2
   - MacBook Pro (13-inch, 2020, Two Thunderbolt 3 ports) - MacBookPro16,3
   - MacBook Air (Retina, 13-inch, 2018) - MacBookAir8,1
   - MacBook Air (Retina, 13-inch, 2019) - MacBookAir8,2
   - MacBook Air (Retina, 13-inch, 2020) - MacBookAir9,1
   - iMac (Retina 5K, 27-inch, 2019) - iMac19,1
   - iMac (Retina 4K, 21.5-inch, 2019) - iMac19,2
   - iMac (Retina 5K, 27-inch, 2020) - iMac20,1 and iMac20,2
   - Mac mini (2018) - Macmini8,1
   - Mac Pro (2019) - MacPro7,1
   - Mac Pro (Rack, 2019) - MacPro7,1
6. Mac Users: A software driver is required to enable Apple Super Drive, Apple USB Keyboard, and for charging iPad generations 1, 2 and 3. This driver is included in the OWC Dock Ejector software download package. If your SuperDrive doesn't respond when connected to an external display or USB hub, connect your SuperDrive to a USB port directly on your Mac.
7. Recorded sound input playback will be quiet. Adjusting the input volume in System Preferences does not improve the softness of the recording playback. Connecting the desired input directly into the computer system will improve the recorded sound input.
8. The UltraStudio Recorder 3G is not compatible with the OWC 11-Port Thunderbolt Dock. System Report will show the device being connected; however, the driver won’t load which doesn’t allow for use of the device. The UltraStudio Recorder 3G works properly when directly connected to a system.
9. A firmware update is required to use OWC 11-Port Thunderbolt Dock with OWC Innergize software. Please consult the "Innergize for PC: Firmware Update" or "Innergize for Mac: Firmware Update" guide for download and installation instructions.
10. No jumbo frame support
11. Apples's Pro 6K XDR Display is not supported. Apple recommends connecting the included Thunderbolt 3 Pro Cable (2 m) to the Thunderbolt 3 port on your display and a Thunderbolt 3 port directly on your Mac, not daisy-chained through another Thunderbolt 3 device or hub.
