Connect. Work. Disconnect. Go.

The days of only working at your desk are gone. We’re always on the move bouncing between our desks, meetings and couches — often in a hurry. With a single connection to your notebook computer, the OWC 14-Port Thunderbolt Dock makes coming back to your desk to work and leaving your desk to run to a meeting, a much quicker endeavor.

The Right Ports, Right Where You Need Them

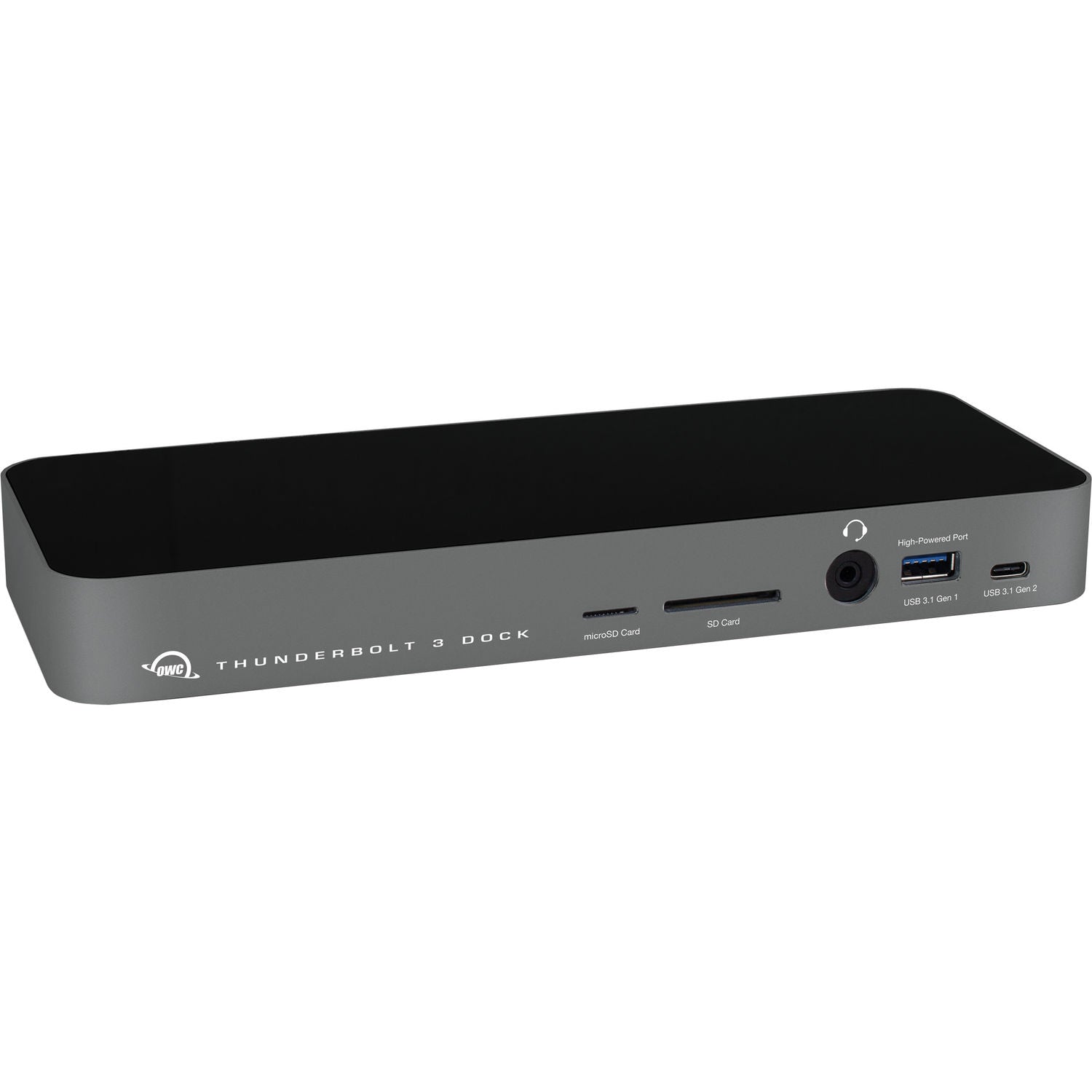

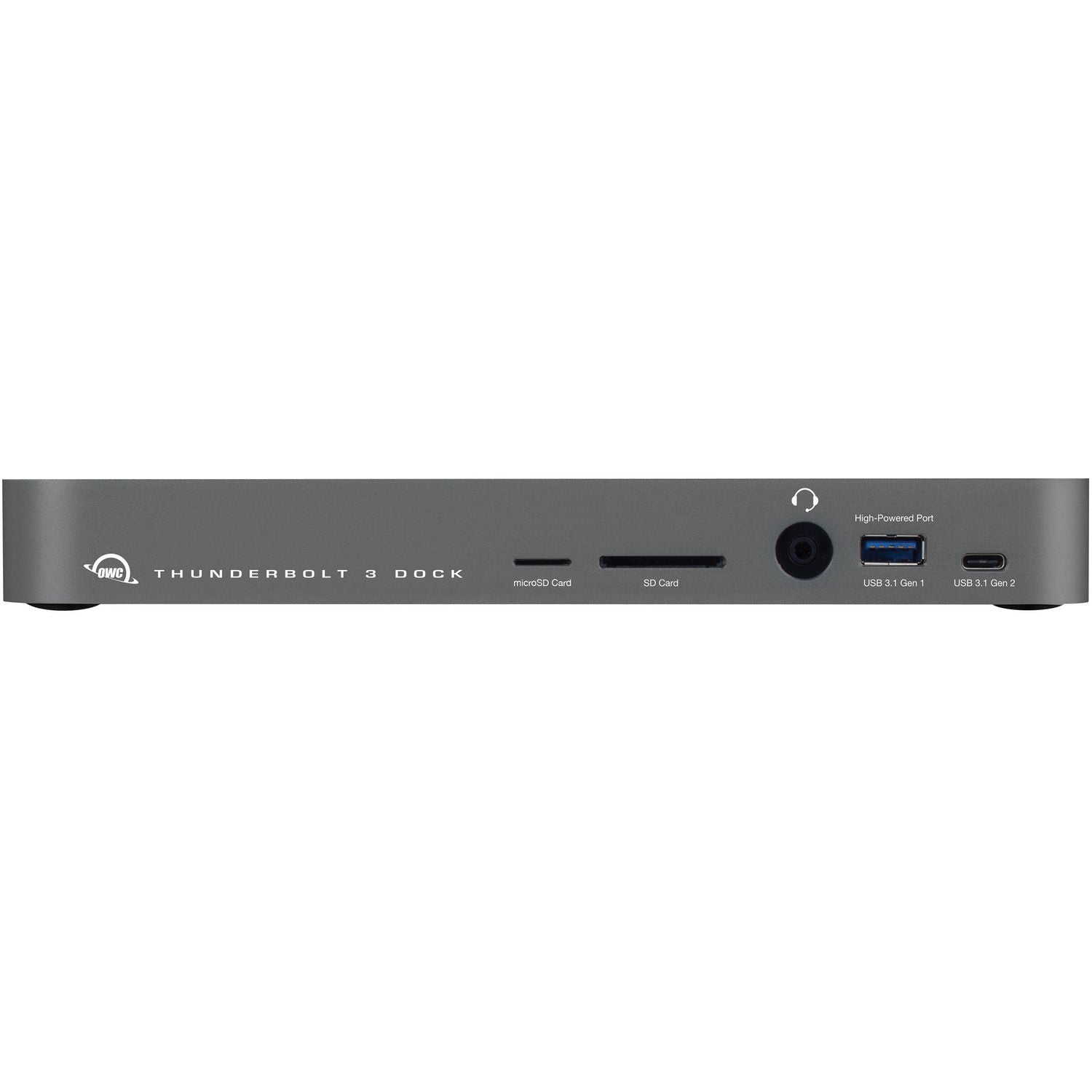

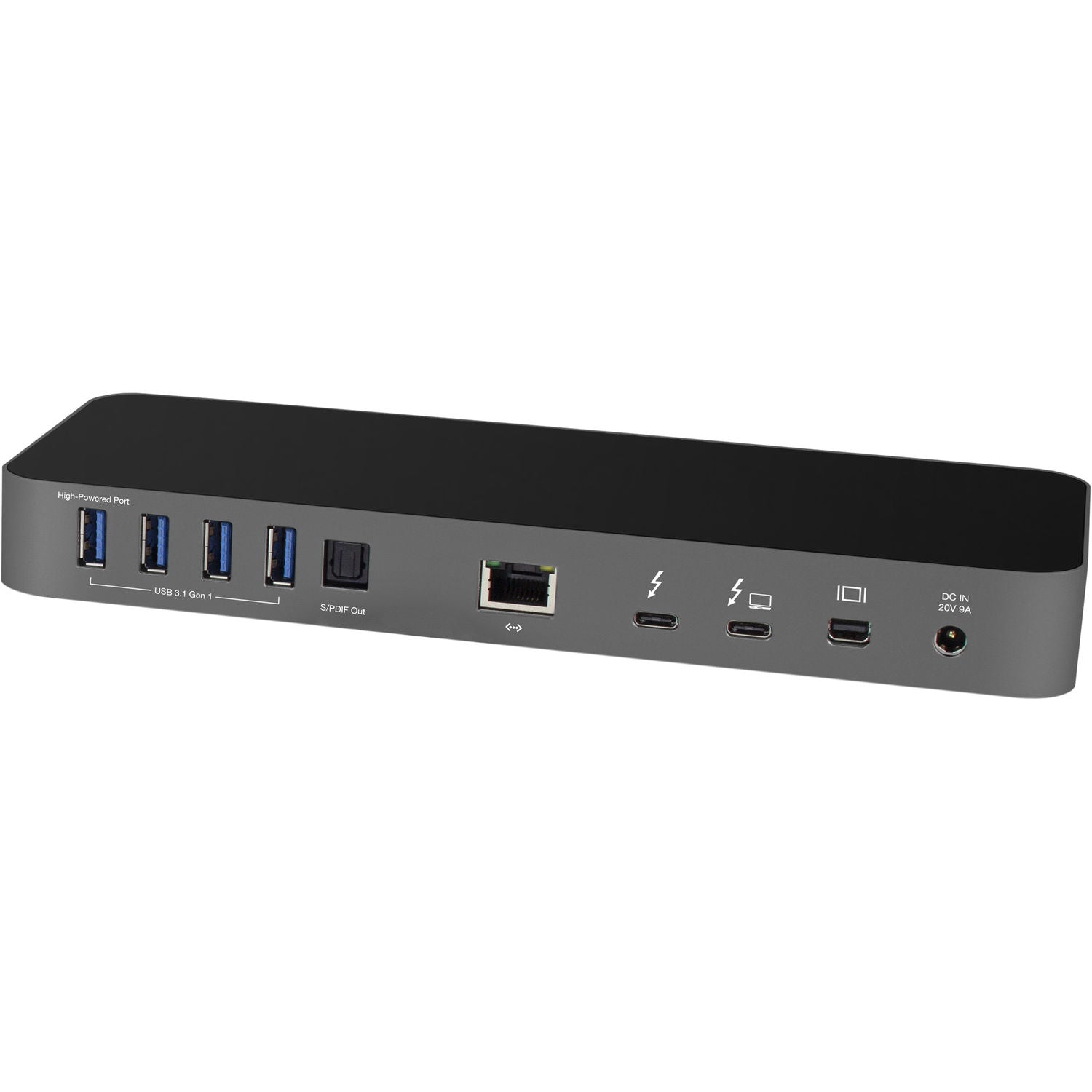

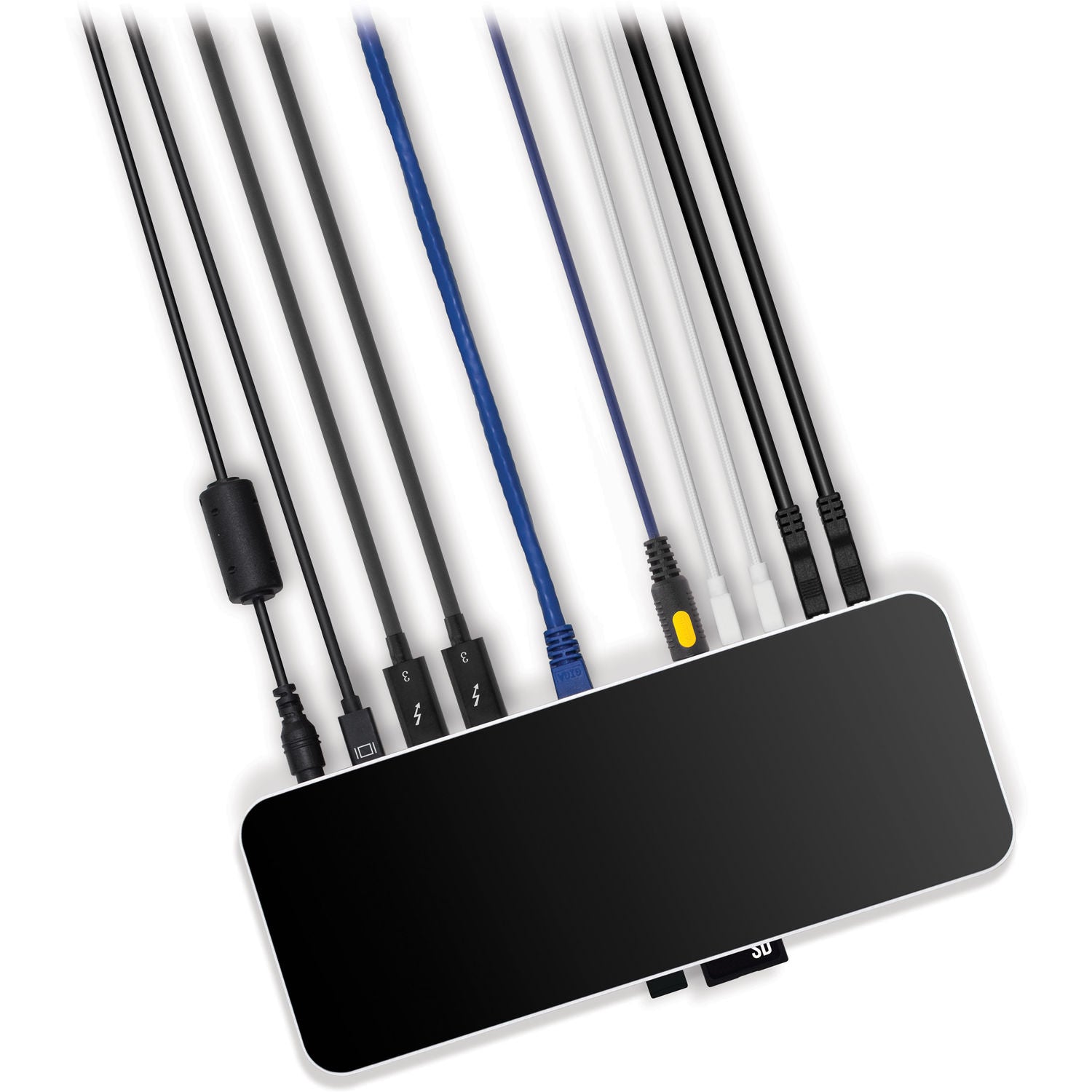

With its 14 ports of connectivity thoughtfully placed, the OWC 14-Port Thunderbolt Dock delivers convenience while keeping desktops clutter-free. The dock’s front is designed for the easy connection of your portable devices, headphones and media cards, while the rear features a multitude of ports for your static devices so cables stay out of sight.

• 2) Thunderbolt 3 (USB-C) ports (Thunderbolt 2/Thunderbolt backward compatible)
• (1) USB-C (USB 3.1 Gen 2) port
• (5) USB-A (USB 3.1 Gen 1) ports
• (1) Mini DisplayPort Port
• (1) Gigabit Ethernet (GBE) Port
• (1) S/PDIF Digital Audio Output Port
• (1) 3.5mm Stereo Audio Input/Output Combo Port

Power To The Ports

Leave your power adapters in your bag! The OWC 14-Port Thunderbolt Dock provides 85 watts of power to your computer via the Thunderbolt 3 connection and has multiple, high-power USB ports to charge your mobile devices. The days of searching for your power adapter are officially over.

Disconnect In One Click

OWC Dock Ejector safely disconnects all connected drives in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss. Use it to move quickly between workstations and get the most out of your 14-Port Thunderbolt Dock.

Thoughtful Design - Inside and Out

Carefully chosen ports and functionality bring a new world of possibilities to your desktop, but we’ve also worked to ensure the OWC 14-Port Thunderbolt Dock is built to last. A seamless design wrapped in a single piece of aluminum brings a rugged exterior to endure your day-to-day, while maintaining a stylish design that complements any workspace.

Pro-tips: Daisy-chaining With Thunderbolt Devices

With the ability to run up to six devices per port, Thunderbolt ports amplify your laptop or desktop with peripheral power. Learn the basics of daisy-chaining Thunderbolt devices for maximum performance in this handy infographic

OWC Thunderbolt 3 Cables

A Thunderbolt 3 cable is included with the OWC 14-Port Thunderbolt Dock, but if your workflow demands a longer cable to make the connection, OWC Premium Thunderbolt 3 (USB-C) Cables are the perfect choice.

Detailed Specs

Memory Card Slots

• (1) microSD
• (1) SD

Power Delivery

• Thunderbolt 3 host port provides up to 85W of power to the host computer

Device Ports

• (1) Host Port - Thunderbolt 3 (USB-C) up to 40 Gb/s (5000 MB/s)
• (1) Thunderbolt 3 (USB-C) Port
• (1) USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
• (5) USB 3.2 Gen 1 Type-A Ports up to 600MB/s
• (1) Mini DisplayPort Port
• (1) Gigabit Ethernet (GbE) RJ-45 Port
• (1) S/PDIF Digital Audio Output Port
• (1) 3.5mm Stereo Audio Input/Output Combo Port

Additional Ports

• None

Display Support

• Up to one 5K display @ 60Hz,
• or two 4K displays @ 60Hz

Display Support by Port

• Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
• Mini DisplayPort 1.2: Up to 4K @ 60Hz

Ethernet Speeds (RJ-45)

• 1Gb/s "Gigabit" (1000BASE-T)
• 100Mb/s (100BASE-T)
• 10Mb/s (10BASE-T)

Jumbo Frame Support

• Yes

Chipset

• Thunderbolt 3 - Intel JHL6540
• USB Type-C - ASMedia ASM1142
• USB Type-A - Fresco Logic FL1100EX (x2)
• Ethernet - Intel i210
• S/PDIF Audio - C Media CM6533

Host Port Requirements

• Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt1)

Mac OS Compatibility

• macOS 14.x Sonoma
• macOS 13.x Ventura
• macOS 12.x Monterey
• macOS 11.x Big Sur
• macOS 10.15 Catalina
• macOS 10.14 Mojave
• macOS 10.13 High Sierra
• macOS 10.12 Sierra

PC OS Compatibility

• Windows 10 32-bit Edition
• Windows 10 64-bit Edition
• Windows Server 2016
• Windows 11

Driver Required

• Download Driver
• High-power USB support is required for compatibility with the Apple SuperDrive and Apple USB keyboard, and is required to enable high-speed charging for Apple iPads, iPhones and other higher-power capable devices. To enable high-power USB support please download the appropriate app and driver bundle.

External Power Adapter

• Yes

Power Supply

• External UL-listed universal auto-switching power supply
• Need an additional power supply? Secondary/replacement power supplies are also available.

AC Input

• 120-240V, 50-60Hz, 2.5A

DC Output

• +20V, 9A

Wattage

• 180W

Replacement Adapter Part Number

• OWCTB3DKPWR180W (sold separately)

Security Slot

• No

Housing Color

• Chassis: Space Gray
• Covers: Black

Housing Material

• Chassis: Aluminum
• Covers: Polycarbonate

Dimensions

• Height: 2.5 cm (1.0 in)
• Length: 8.9 cm (3.5 in)
• Width: 23.0 cm (9.1 in)

Weight

• 500.0 g (1.10 lbs)

Certifications

• CE
• FCC

RoHS Compliant

• Yes

Reach Certification

• Yes

Country of Origin

• Taiwan

TAA Compliance

• Yes

Altitude

• Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
• Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

1. Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
2. Both the SD card reader and the micro SD card reader are controlled by the same chipset. This means that only one can be in use at a time.
3. Dual displays require a native Thunderbolt 3 display or the appropriate Thunderbolt 3 adapter. Dual 4K setups will run at different refresh rates depending on which OS and connection types are being utilized.
4. Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers.
   Apple silicon M1/M2/M3 Pro, M1/M2/M3 Max, and M1/M2 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K @ 60Hz via Thunderbolt.
   Apple silicon M1/M2/M3 Mac models can support one external display up to 4K @ 60Hz via Thunderbolt.
5. The following Apple silicon M1/M2/M3 Mac models support a single display over a Thunderbolt port:
   - MacBook Pro (14-inch, M3, 2023)
   - MacBook Pro (13-inch, M1, 2020) - MacBookPro17,1
   - MacBook Pro (13-inch, M2, 2022) - Mac14,7
   - MacBook Air (M1, 2020) - MacBookAir10,1
   - MacBook Air (M2, 2022) - Mac14,2
   - Mac mini (M1, 2020) - Macmini9,1
6. The following Mac models provide only partial support for DisplayPort 1.4, including limiting resolution to 5K or 6K at 60Hz. Please review Apple's display specifications for your specific Mac to determine the maximum supported resolution and color depth:
   - MacBook Pro (15-inch, 2018) - MacBookPro15,1
   - MacBook Pro (13-inch, 2018, Four Thunderbolt 3 ports) - MacBookPro15,2
   - MacBook Pro (13-inch, 2019, Four Thunderbolt 3 ports) - MacBookPro15,2
   - MacBook Pro (15-inch, 2019) - MacBookPro15,1 and MacBookPro15,3
   - MacBook Pro (13-inch, 2019, Two Thunderbolt 3 ports) - MacBookPro15,4
   - MacBook Pro (16-inch, 2019) - MacBookPro16,1 and MacBookPro16,4
   - MacBook Pro (13-inch, 2020, Four Thunderbolt 3 ports) - MacBookPro16,2
   - MacBook Pro (13-inch, 2020, Two Thunderbolt 3 ports) - MacBookPro16,3
   - MacBook Air (Retina, 13-inch, 2018) - MacBookAir8,1
   - MacBook Air (Retina, 13-inch, 2019) - MacBookAir8,2
   - MacBook Air (Retina, 13-inch, 2020) - MacBookAir9,1
   - iMac (Retina 5K, 27-inch, 2019) - iMac19,1
   - iMac (Retina 4K, 21.5-inch, 2019) - iMac19,2
   - iMac (Retina 5K, 27-inch, 2020) - iMac20,1 and iMac20,2
   - Mac mini (2018) - Macmini8,1
   - Mac Pro (2019) - MacPro7,1
   - Mac Pro (Rack, 2019) - MacPro7,1
7. Dual display configurations are possible with the Mac mini via the additional built-in HDMI 2.0 port.
8. The rear-facing Thunderbolt (USB-C) port supports USB connectivity up to 10Gb/s. The front-facing USB-C port supports USB connectivity up to 8Gb/s.
9. Connected drives may display the wrong desktop icon and not be ejectable through Dock Ejector when connected over the (2) rear-right-side USB 3.1 Gen 1 Type-A ports.
10. OWC Dock Ejector is developed for OWC products. Third party hubs and docks are not supported.
11. Recorded sound input playback will be quiet. Adjusting the input volume in System Preferences does not improve the softness of the recording playback. Connecting the desired input directly into the computer system will improve the recorded sound input.
12. A firmware update is required to use OWC 14-Port Thunderbolt Dock with OWC Innergize software. Please consult the "Innergize for PC: Firmware Update" or "Innergize for Mac: Firmware Update" guide for download and installation instructions.
13. SD cards inserted into the OWC 14-Port Thunderbolt Dock will not be recognized by Windows Disk Management or applications after being safely removed. Power cycle the entire OWC 14-Port Thunderbolt Dock by disconnecting the power source. This will allow the OWC 14-Port Thunderbolt Dock to create a new card session resulting in Windows recognizing the SD card.
