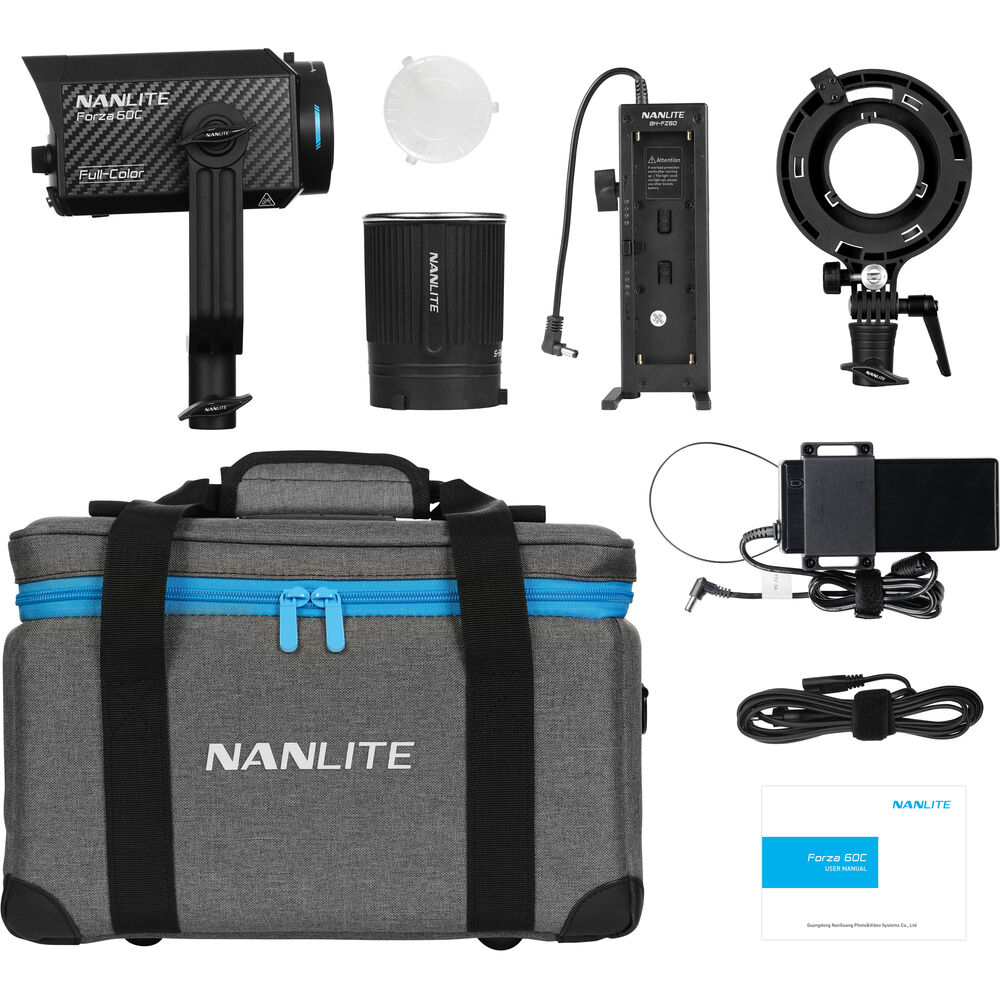

The kit includes:


Key Features

• 45° beam spread with reflector
• Color temperature from 1800-20 000 K
• CRI: 96, TLCI: 95, TM 30 Rg: 100
• HSI Mode, RGBW Mode, XY Mode
• Full-gamut color mixing
• Hue and saturation control
• Dimming from 0 to 100%, DMX and Bluetooth control
• Multi-power: mains and battery power
• Compact design with silent active cooling

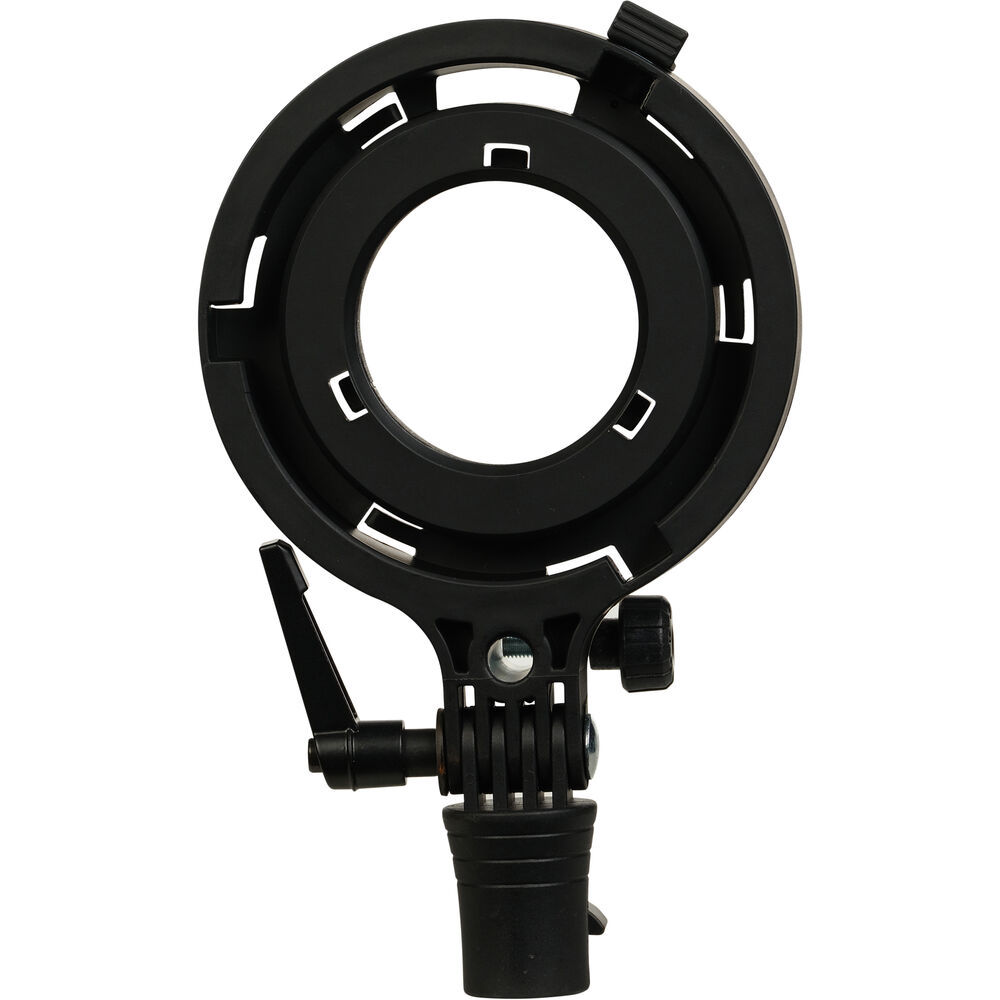

• Bowens mount adapter

Description

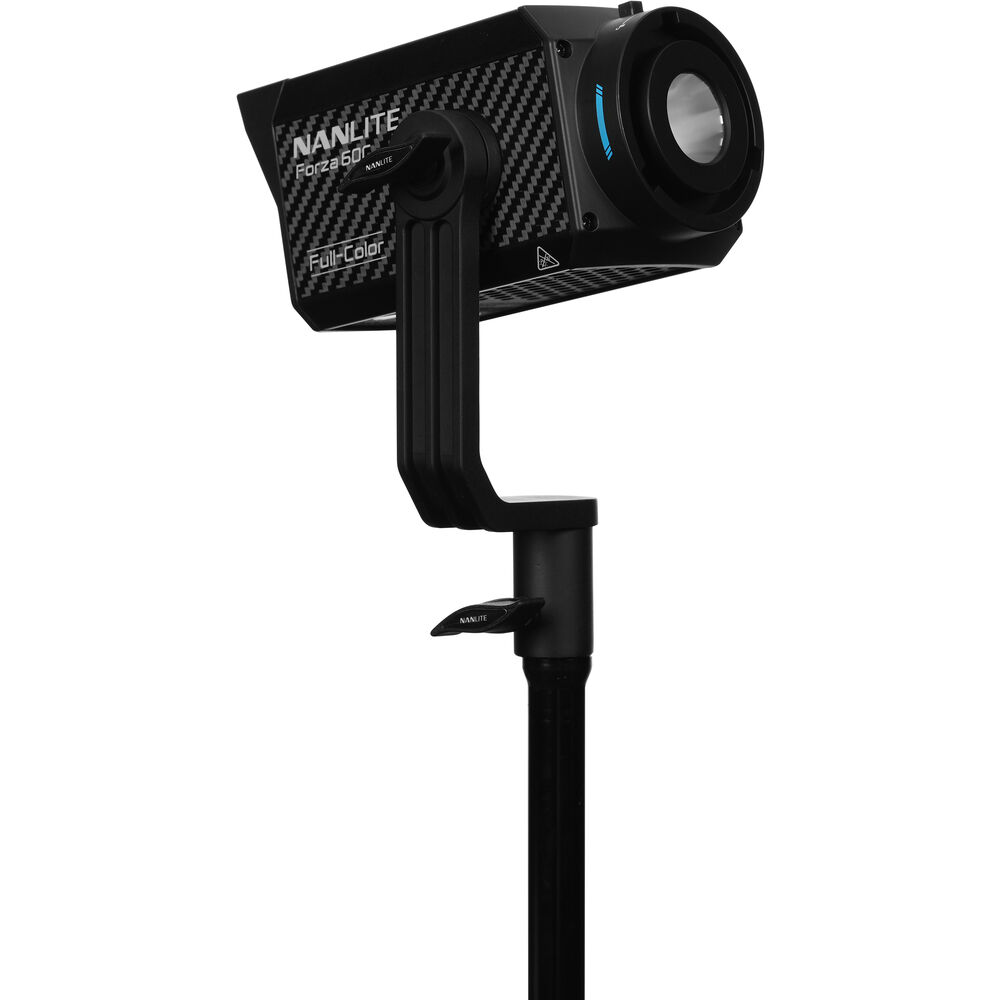

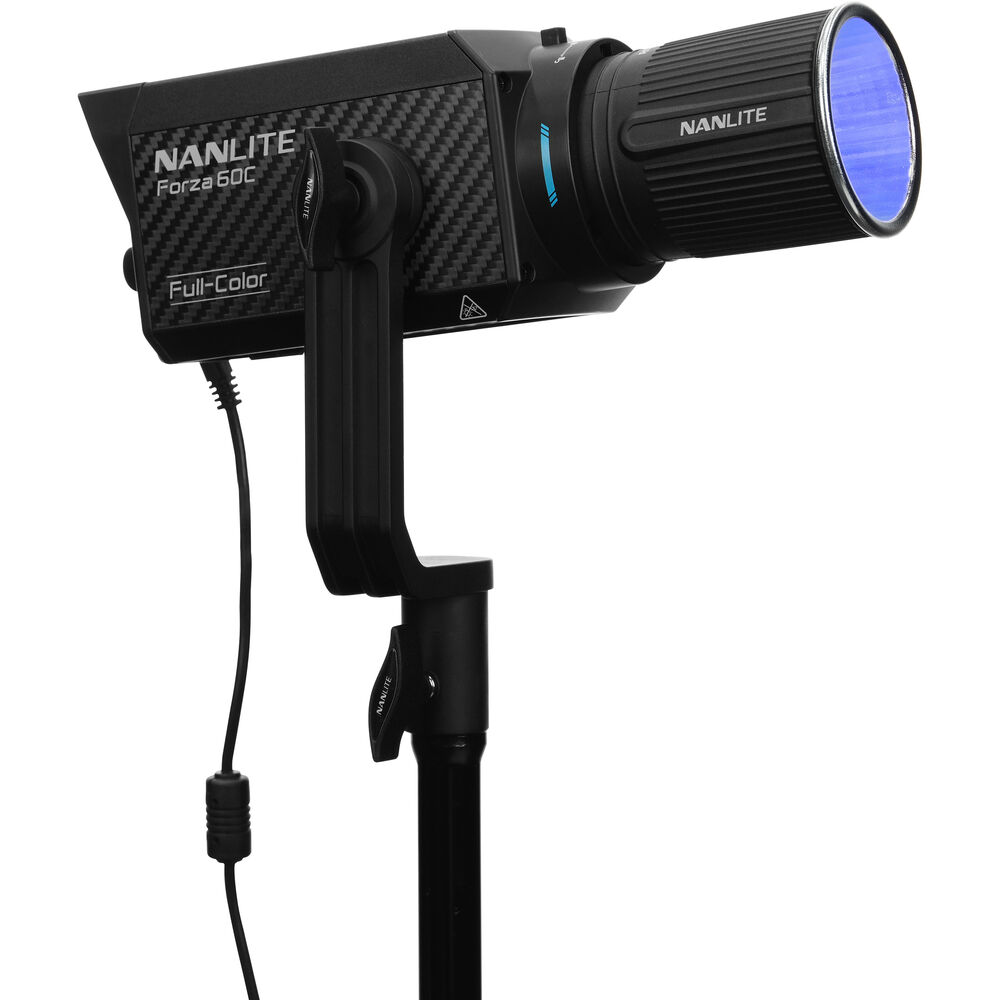

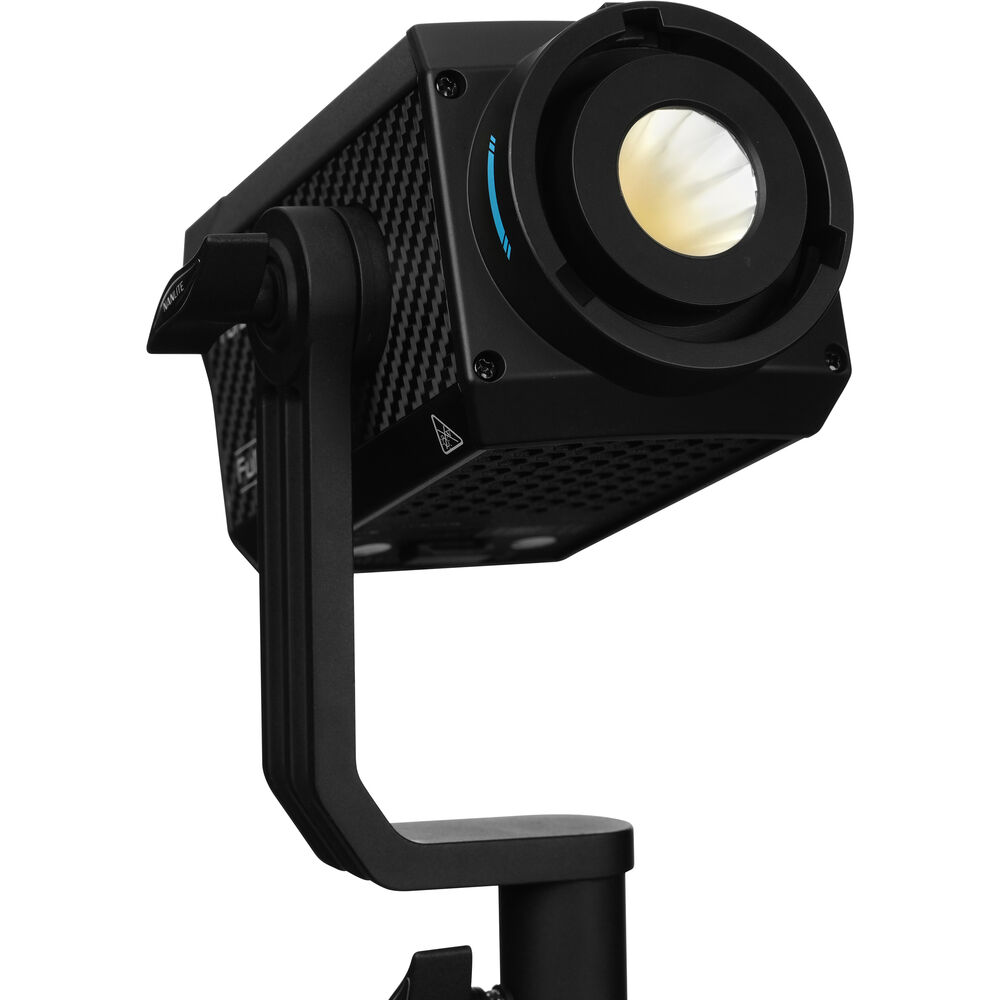

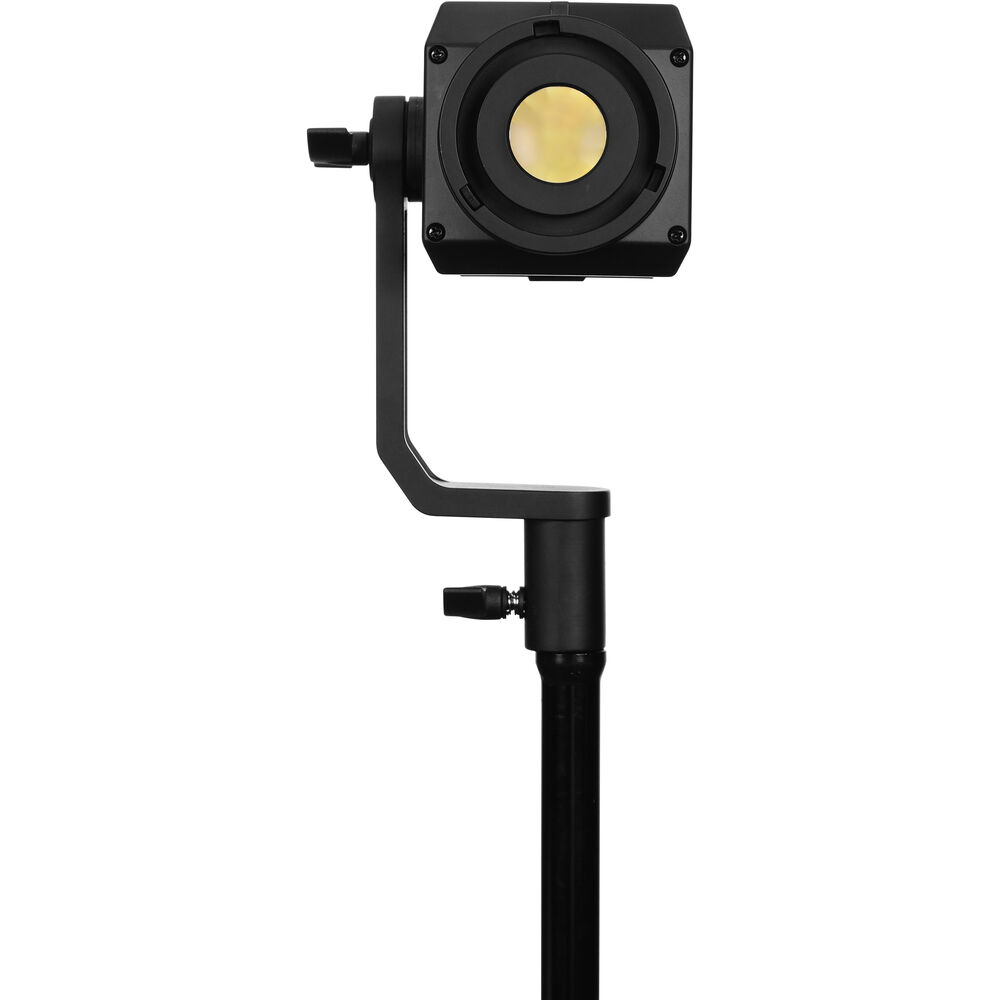

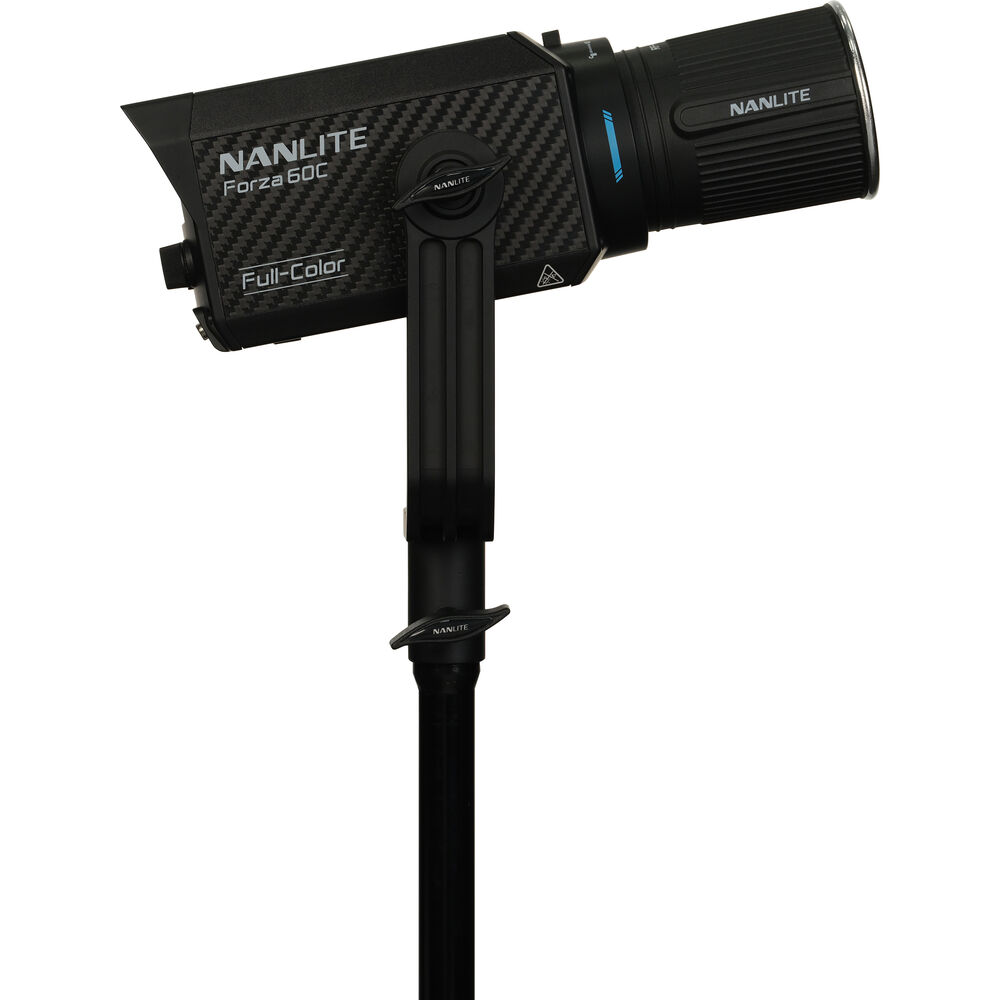

The Forza 60C RGBLAC LED Spot from Nanlite features a lightweight and compact design. It incorporates six-color mixing technology, including Lime, Amber, and Cyan LED chips, allowing for extremely accurate, balanced daylight 5600K light. The ultra-wide CCT range of 1800K-20000K offers remarkably rich and saturated colors. It has 15 customizable color effects and can be remotely controlled with the NANLINK mobile app for iOS or Android. Its ultracompact form factor and vibrant colors make it the ideal lighting solution for any production level, including film and television, independent films, documentaries, music videos, in-house content, and all kinds of remote location work.

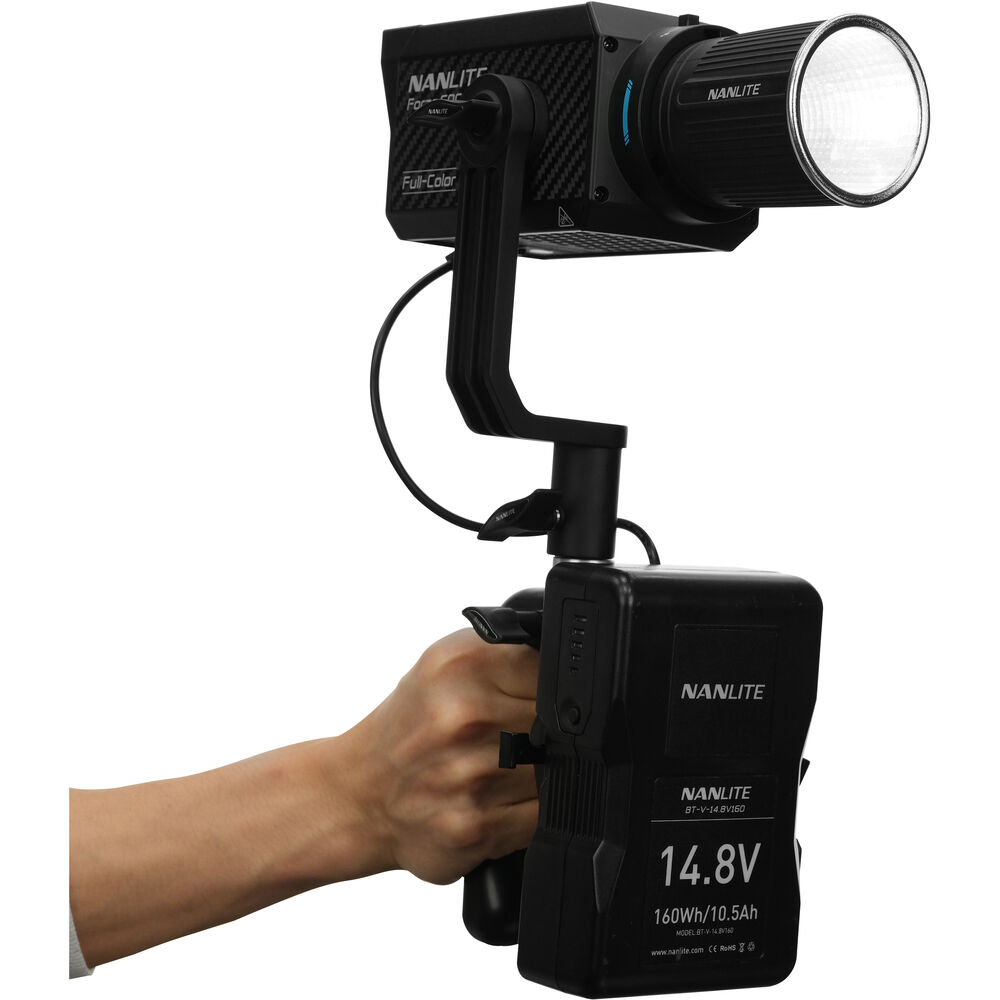

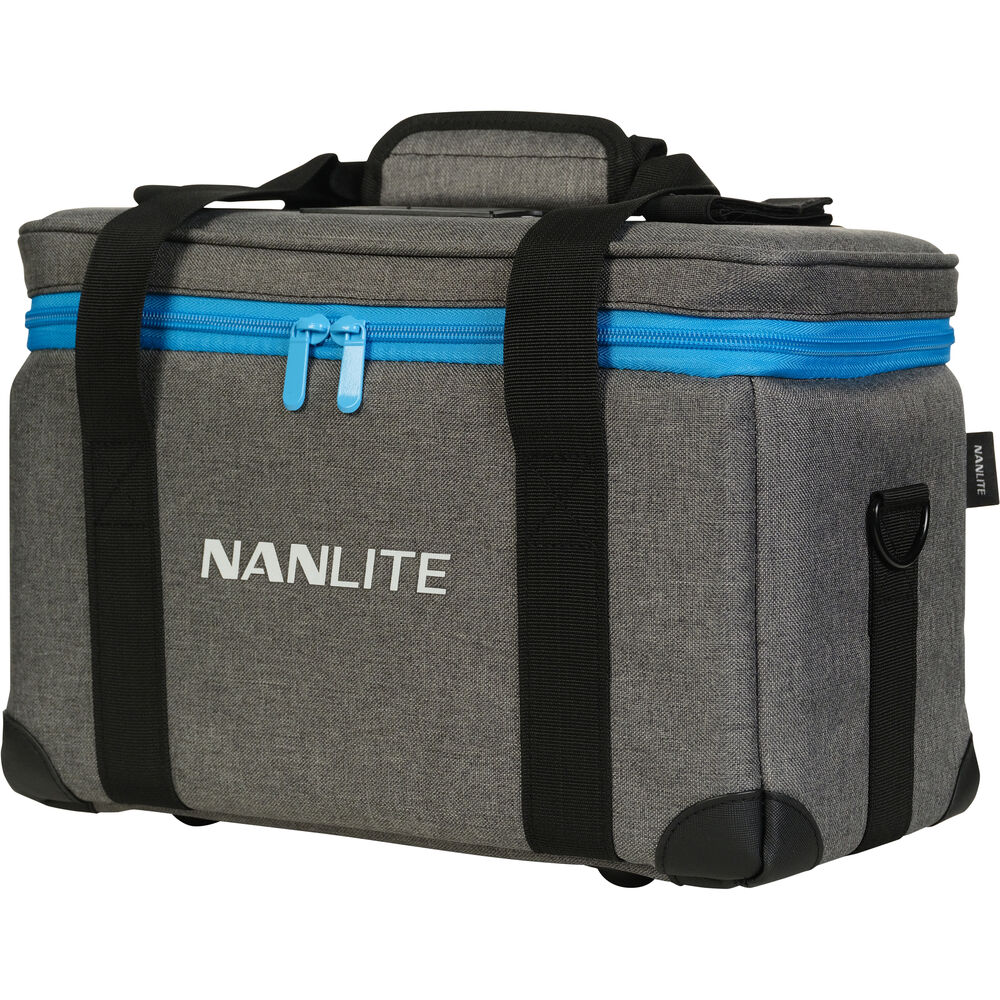

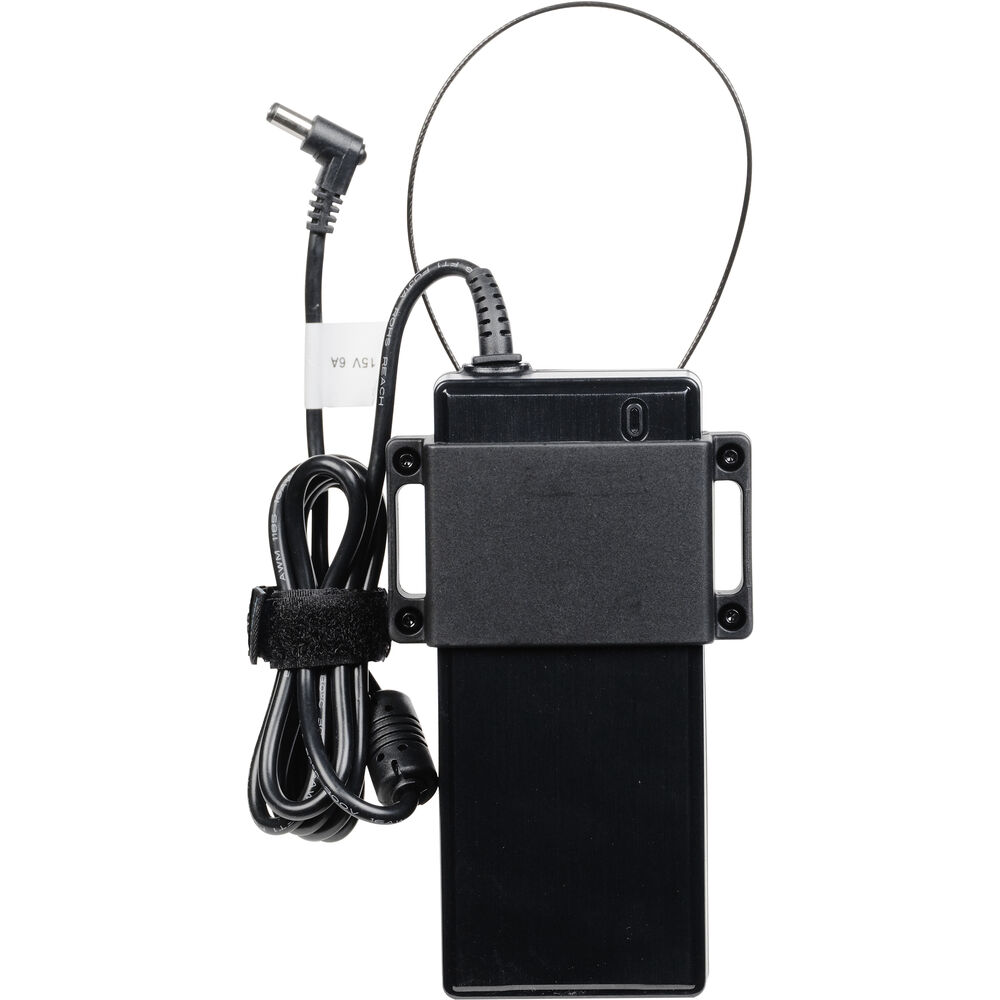

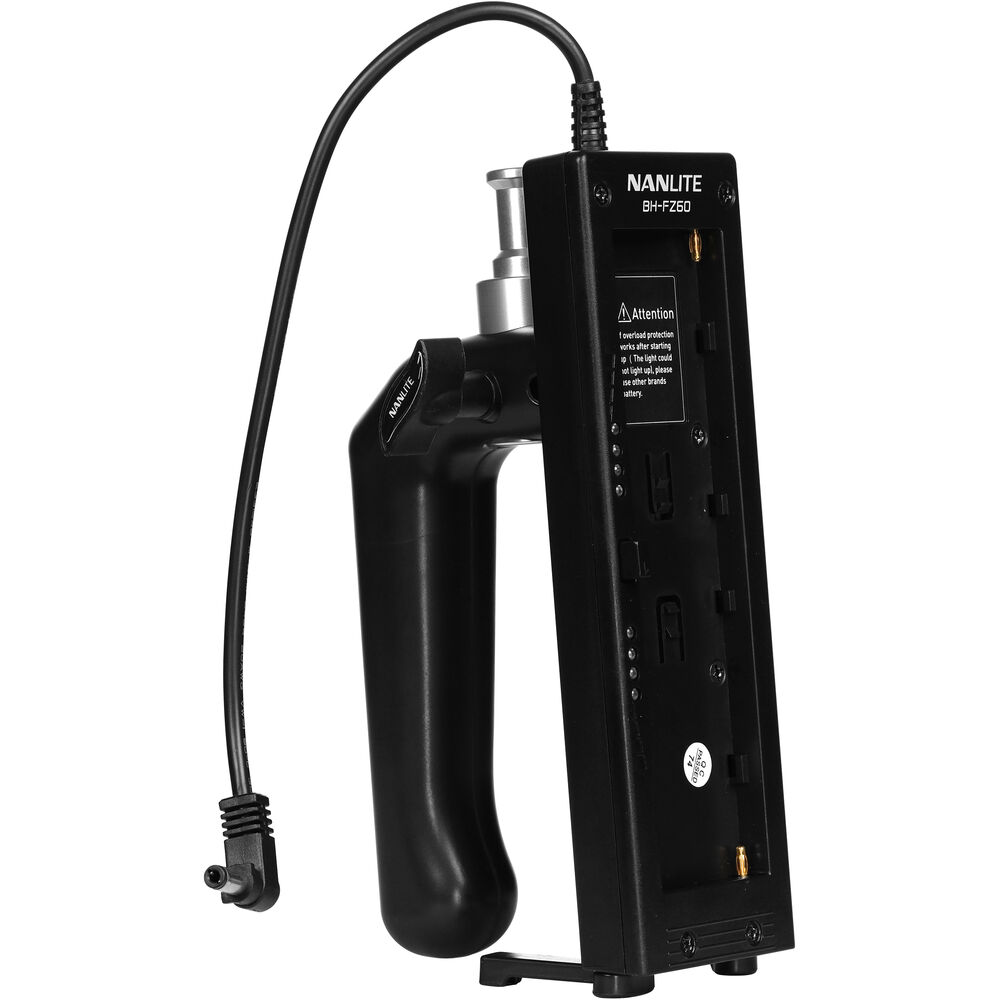

The Forza 60C is ready for studio use via the included AC adapter or on location with NP-F or V-mount battery power. The kit includes a Bowens mount adapter, so you can use a wide variety of available light modifiers. The battery grip has two NP-F type battery slots, so you can use the light handheld, cable-free right in the middle of the action. The kit comes with a durable, padded carrying case for easy transport, making it a complete lighting solution.

Multiple Color Modes

The six LED chips produce extremely accurate and rich light. The LED array provides extended color modes, including HSI, RGBW, XY, and gel.

High Color Accuracy

With an average CRI of 96, average TLCI of 95, TM-30 Rf of 95, and TM-30 Rg of 100, your footage and images will always be color accurate.

15 Built-in Color Effects

The 15 built-in effects can be easily customized and saved as presets in the NANLINK app.

Bluetooth, 2.4G, and DMX Remote Control

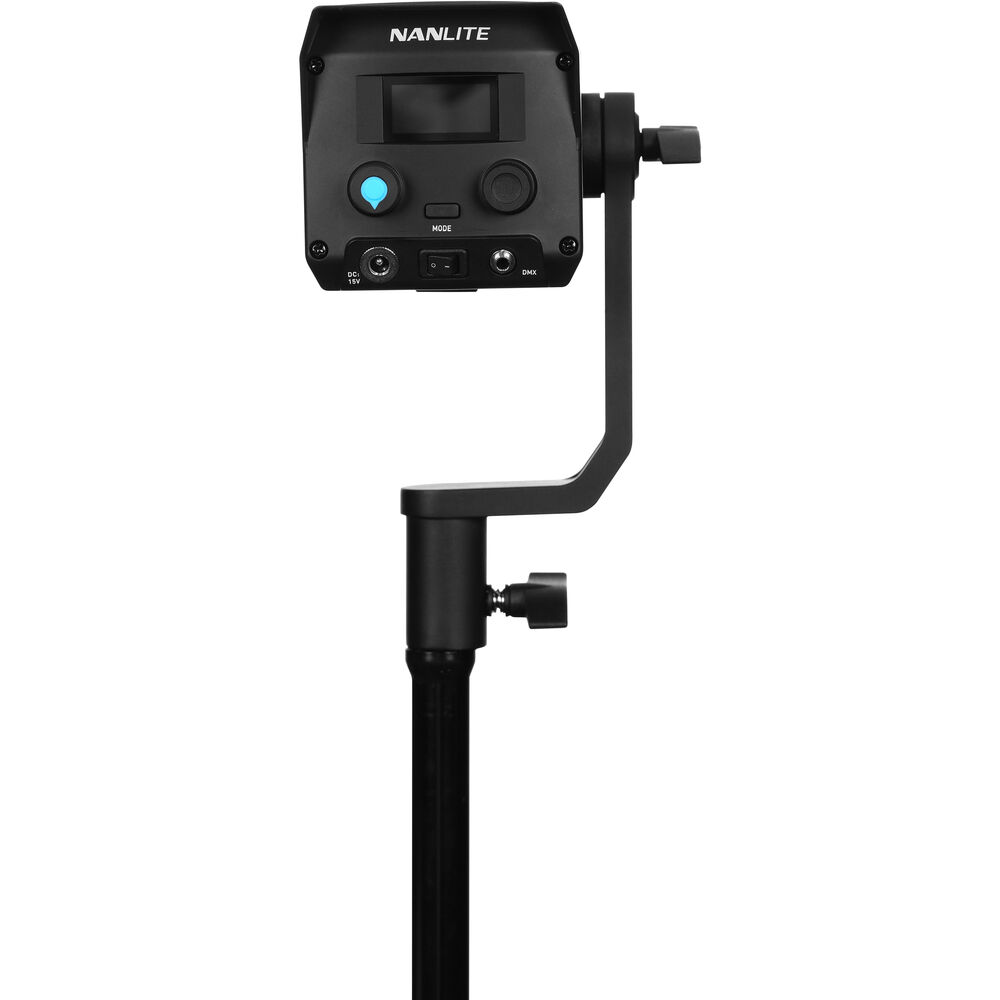

Adjust settings using the control buttons and LCD screen on the back of the light or with the NANLINK mobile app for iOS and Android. The app provides color management features and XY color space adjustment, among others. In addition, 2.4G provides control via the separately available WS-TB-1 wireless controller for more complex setups or with hardware remotes like the NANLINK WS-RC-C2. DMX/RDM control is also supported for advanced users.

Compact and Quiet

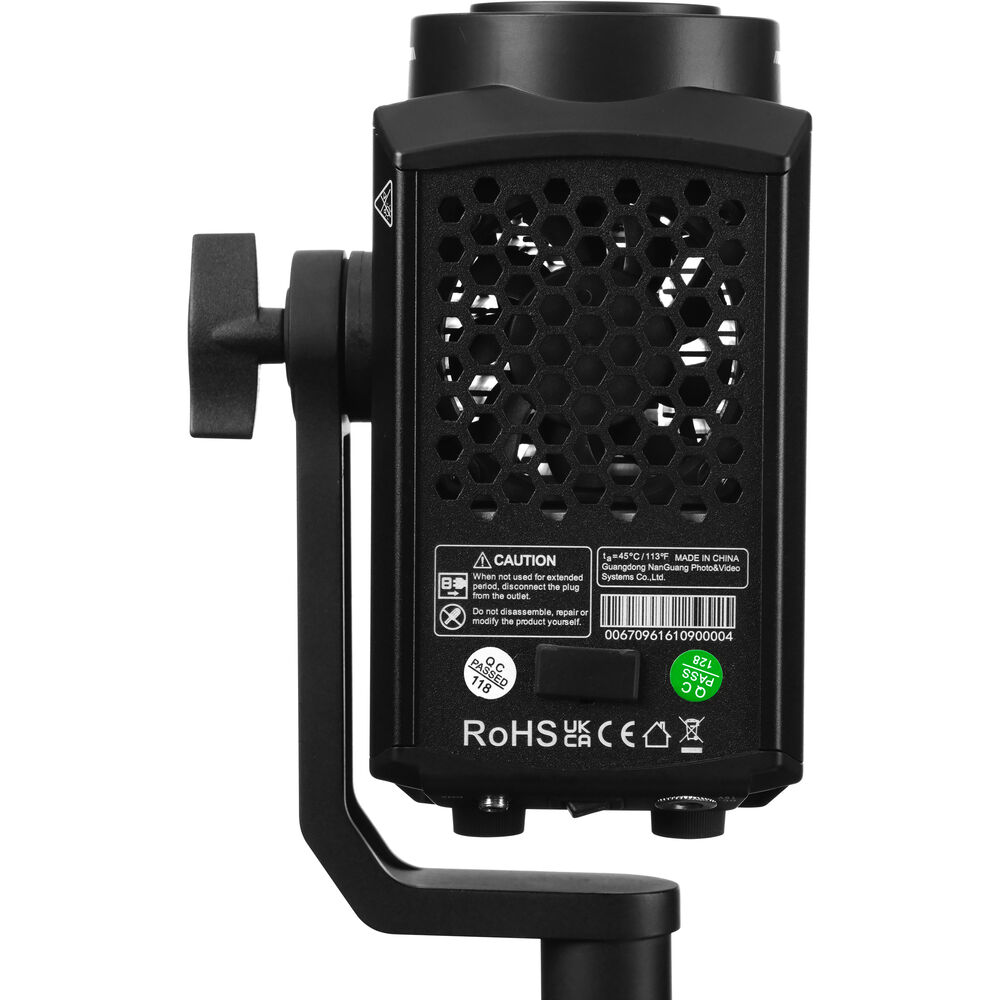

The Forza 60c's compact body measures 224×110×88mm and is easy to set up and transport. Its ultra-quiet fan will not interfere with audio recording.

Specifications

Light Fixture

• Rated Power: 88W
• Input Voltage/Current: DC 15V/6A Max, AC 100-240V 50/60Hz
• CCT: 1800K-20000K (G/M±100)
• Color Modes: RGBLAC
• CRI: average 96; TLCI: average 95; TM-30 Rf average 94: TM-30 Rg average 100;
• Dimming: 0-100% continuous
• Control: On-board, 2.4G, Bluetooth, NANLINK APP, DMX/RDM
• Special Effects: HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
• Cooling System: Fan
• Dimmer: Yes, 0 to 100% (stepless)
• Display: LCD
• Housing Material: Aluminum
• Beam Angle: 60° without modifier; 45° with reflector;

Connectors

• Battery: 2 x NP-F
• Power Port: barrel / coax
• USB Port: USB Type-A

Mounting

• Light Fixture Mount: 5/8" receiver
• Yoke Type: L-bracket

Control Type: On-board, App, Bluetooth, DMX

Power

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• DC Input Power: 15 VDC at 6 A
• Power Source: AC Adapter, External Battery
• Max Power Consumption: 88 W
• Power Connector: IEC input
• Operating Temperature: 45°C

Certifications: CE, UKCA, RoHS, PSE Circle Mark, KCC, BIS, FCC-ID, SAA+C-Tick, ETL+cETL, NCC

Photometrics

Without Modifier

• 2700K: 1m: 5656lux/525fc; 2m: 1402lux/130fc; 3m: 631lux/59fc;
• 3200K: 1m: 5694lux/529fc; 2m: 1433lux/133fc; 3m: 648lux/60fc;
• 4300K: 1m: 5861lux/544fc; 2m: 1462 lux/136fc; 3m: 658lux/61fc;
• 5600K: 1m: 5709 lux/530fc; 2m: 1425 lux/132fc;3m: 646lux/60fc;
• 7500K: 1m: 5567 lux/517fc; 2m: 1388 lux/129fc; 3m: 630lux/59fc;
• R: 1m: 1282lux/119fc; 2m: 317lux/29fc; 3m: 142lux/13fc;
• G: 1m: 3855lux/358fc; 2m: 953lux/89fc; 3m: 428 lux/40fc;
• B: 1m: 520lux/48fc; 2m: 129lux/12fc; 3m: 59lux/5fc;

With Reflector

• 2700K: 1m: 12470lux/1158fc; 2m: 2839lux/264fc; 3m: 1238lux/115fc;
• 3200K: 1m: 12750lux/1184fc; 2m: 2939 lux/273fc; 3m: 1278lux/119fc;
• 4300K: 1m: 12970lux/1205fc; 2m: 2958lux/275fc; 3m: 1301lux/121fc;
• 5600K: 1m: 12810lux/1190fc; 2m: 2946 lux/274fc; 3m: 1283lux/119fc;
• 7500K: 1m: 12460lux/1158fc; 2m: 2866 lux/266 fc; 3m: 1254lux /116fc;
• R: 1m: 2866lux/268fc; 2m: 656lux/61fc; 3m: 290lux/27fc;
• G: 1m: 8792lux/817fc; 2m: 2016 lux/187fc; 3m: 876 lux/81fc;
• B: 1m: 1200lux/111fc; 2m: 275lux/26fc; 3m: 120lux/11fc;

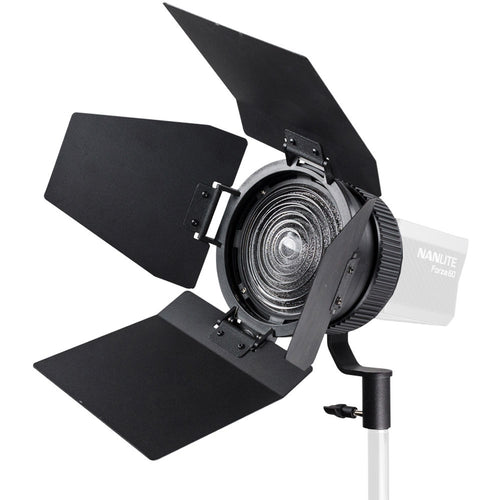

With Fresnel FL-11 10°

• 2700K: 1m: 35260lux/3276fc; 2m: 8303lux/771fc; 3m: 3539 lux/329 fc;
• 3200K: 1m: 36350lux/3377fc; 2m; 8506 lux/790fc; 3m: 3660 lux/340fc;
• 4300K: 1m: 37290lux/3464fc; 2m: 8761lux/814fc; 3m: 3794lux/352fc;
• 5600K: 1m: 37520lux/3486fc; 2m: 8780lux/816fc; 3m: 3804lux/353fc;
• 7500K: 1m: 36560lux/3396fc; 2m: 8530lux/792fc; 3m: 3712lux/345fc;
• R: 1m: 9440lux/877fc; 2m: 2171 lux/202fc; 3m: 935lux/87fc;
• G: 1m: 24750lux/2299fc; 2m: 5753 lux/534fc; 3m: 2503 lux/233 fc;
• B: 1m: 4940lux/459fc; 2m: 790lux/73fc; 3m: 340 lux/32 fc;

With Spot FL-11 45°

• 2700K: 1m: 10800lux/1003fc; 2m: 2720lux/253fc; 3m; 1222 lux/114 fc;
• 3200K: 1m: 11000lux/1022fc; 2m: 2777lux/258fc; 3m: 1248 lux/116 fc;
• 4300K: 1m: 11530lux/1071fc; 2m: 2903lux/270fc; 3m: 1302 lux/121 fc;
• 5600K: 1m: 11310lux/1051fc; 2m: 2858lux/266fc; 3m: 1279 lux/119 fc;
• 7500K: 1m: 11040 lux/1026fc; 2m: 2792lux/259fc; 3m: 1250 lux/116 fc;
• R: 1m: 2594lux/241fc; 2m; 656 lux/61fc; 3m: 293lux/27fc;
• G: 1m: 7480lux/695fc; 2m: 1879lux/175fc; 3m: 838lux/78fc;
• B: 1m: 1020lux/95fc; 2m: 256lux/24fc; 3m: 115lux/11fc;

With Optical Spot PJ-FMM-19

• 2700K: 1m: 40690lux/3780fc; 2m: 7673lux/713fc; 3m: 3164 lux/294 fc;
• 3200K: 1m: 41920lux/3894fc; 2m: 7899 lux/734fc; 3m: 3259 lux/303 fc;
• 4300K: 1m: 43550lux/4046fc; 2m: 8140lux/756fc; 3m: 3331 lux/309 fc;
• 5600K: 1m: 42700lux/3967fc; 2m: 8045 lux/747fc; 3m: 3313 lux/308 fc;
• 7500K: 1m: 41500lux/3855fc; 2m; 7825 lux/727fc; 3m: 3231 lux/300 fc;
• R: 1m: 9950lux/924fc; 2m: 1870lux/174fc; 3m: 767lux/71fc;
• G: 1m: 28310lux/2630fc; 2m: 5272lux/490fc; 3m: 2144lux/199fc;
• B: 1m: 5330lux/495fc; 2m: 680lux/63fc; 3m: 280 lux/26fc;

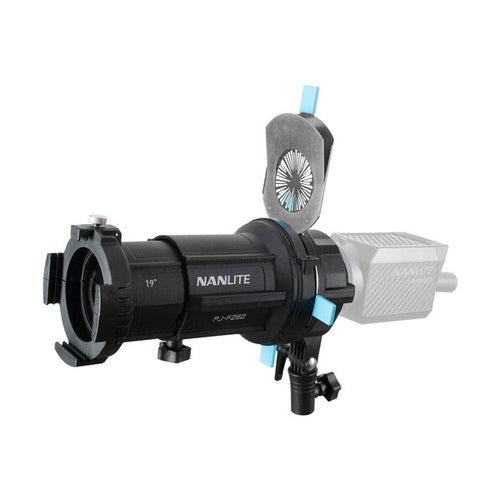

With Optical Spot PJ-FMM-36

• 2700K: 1m: 16130lux/1498fc; 2m: 3135 lux/291fc; 3m: 1300 lux/121fc;
• 3200K: 1m: 16610lux/1543fc; 2m: 3269 lux/304fc; 3m: 1358 lux/126fc;
• 4300K: 1m: 18090lux/1681fc; 2m: 3544 lux/329fc; 3m: 1457lux/135fc;
• 5600K: 1m: 17500lux/1626fc; 2m: 3468lux/322fc; 3m: 1440 lux/134fc;
• 7500K: 1m: 17140lux/1592fc; 2m: 3379 lux/314fc; 3m:1400 lux/130fc;
• R: 1m: 4160lux/386fc; 2m: 812lux/75fc; 3m: 338 lux/31fc;
• G: 1m: 11800lux/1096fc; 2m: 2284lux/212fc; 3m: 943 lux/88fc;
• B: 1m: 1540lux/143fc; 2m: 310lux/29fc; 3m: 126lux/12fc;
