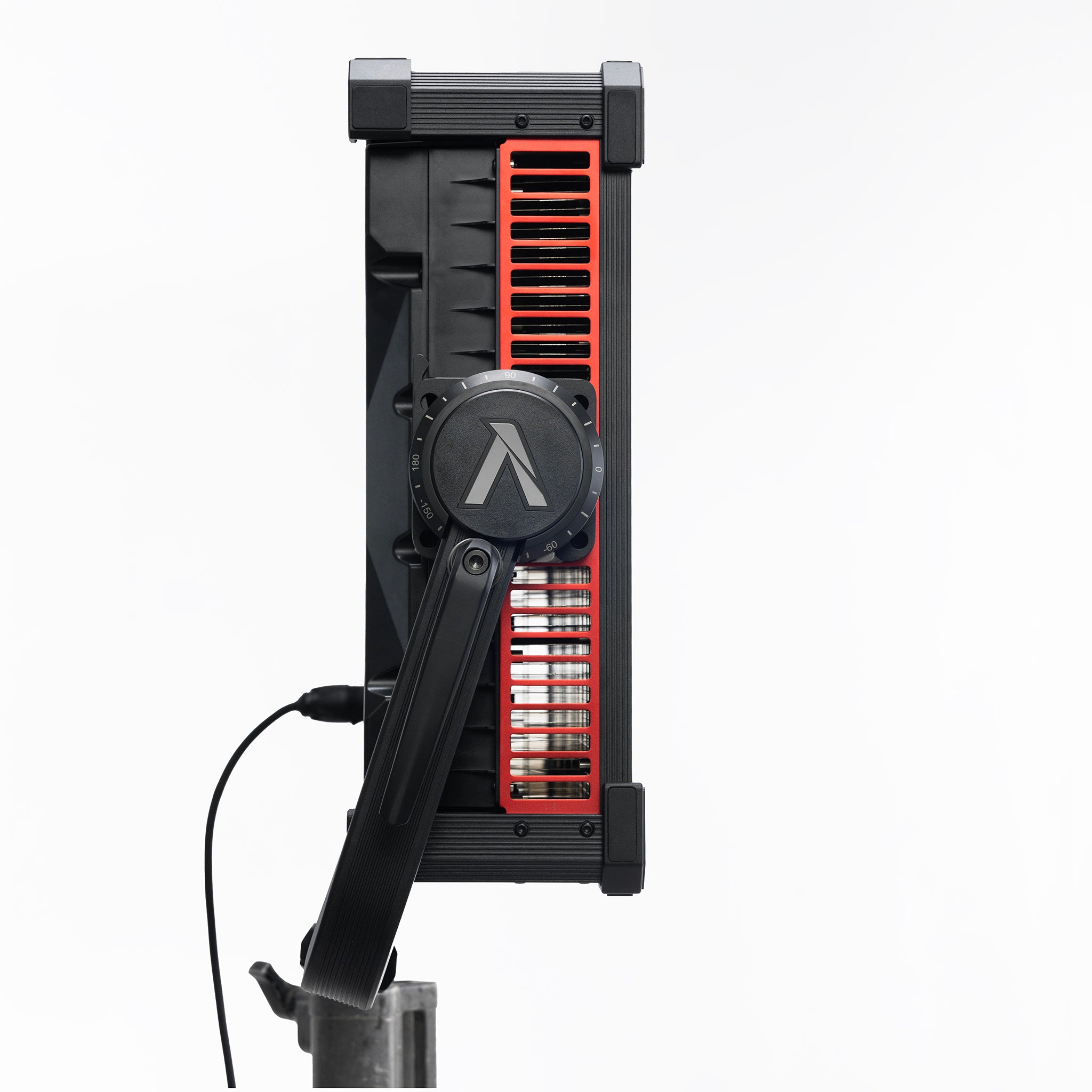

Aputure NOVA II 2x1 LED Panel (BLAIR-CG)

Aputure NOVA II 2x1 LED Panel (BLAIR-CG)

Name: Aputure NOVA II 2x1 LED Panel (BLAIR-CG)
Brand: Aputure
SKU: AP0401040L
Price: 4188.00 EUR
Availability: InStock

Code: AP0401040L

Aputure

€4.188,00

€4.188,00 you save €-4.188,00

Select variant:

Aputure NOVA II 2x1 LED Panel (BLAIR-CG)

Aputure NOVA II 2x1 LED Panel (BLAIR-CG) with Hard Rolling Case Kit

Preorder — Delivery in n/a business days

Add to compare

Can't find what you're looking for?

Our team is here to help.

Connect now

Доставка
Preorder — Delivery in n/a business days (Поръчки изпратени до 17 часа в работен ден се обработват през същия работен ден, а поръчки изпратени след 17 часа или в неработен ден се обработват през следващия работен ден.)
Безплатна доставка за поръчки над 50€
Гаранция
24 месеца

Aputure NOVA II 2x1 LED Panel (BLAIR-CG)

About the product

Key features
1000W output LED panel light fixture, BLAIR-CG chipset
CCT range of 1800K-20000K
Advanced white point control with green/magenta color correction (±G 100% Full ASC MITC Range)
Bare bulb output: 28380 lux @3m 5600K, Flat diffusion panel: 5130 lux @3m 5600K
Ultra-high color accuracy: CRI≥95, TLCI≥95, CQS [CIE D5600]≥96, SSI [P3200]: 90, SSI [CIE D5600]: 86, TM-30 Rf (avg) 95, TM-30 Rg (avg) 100
Smooth 0.1-100% stepless dimming
4 dimming curves: Linear, Exponential, Logarithmic, S-shaped
15 built-in light effects, 10 savable presets
Pro control protocols: Sidus Link, Sidus Link Pro, DMX, CRMX, Art-Net/sACN
16-bit 5-Pin DMX512 in & out ports, 2x Locking Ethernet Ports
Lead-follow and studio mode
New QuickClip direct front-mounting accessory ecosystem

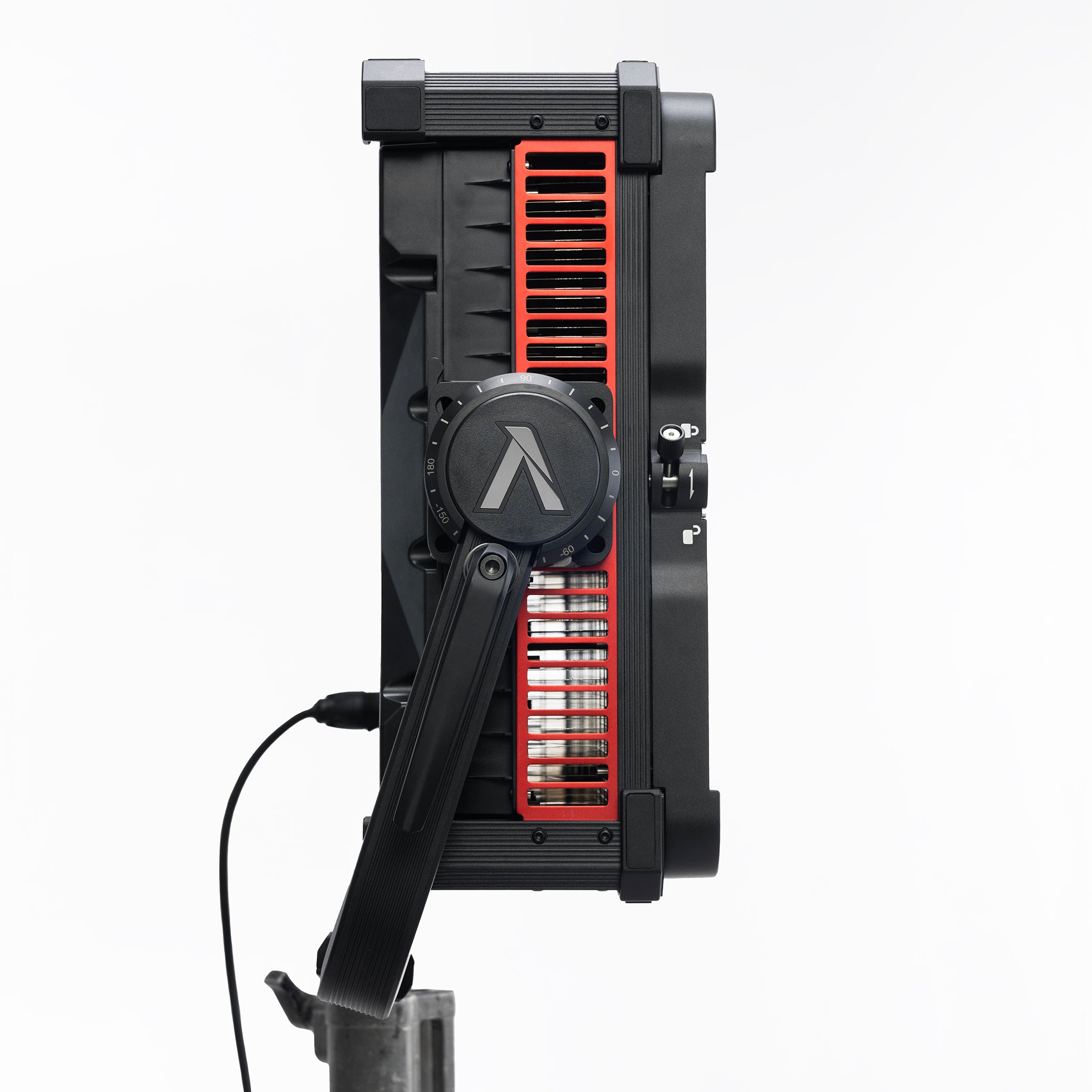

Features removable yoke for rigging flexibility
High output to weight ratio: lamp head with yoke: 18.6kg
IP65 weather resistance
Dual output modes: Max and Constant
4 fan modes: Smart, High, Medium, Silent (DMX controllable)
Firmware upgrades: Sidus Link Pro/Sidus Link, USB drive, and DMX

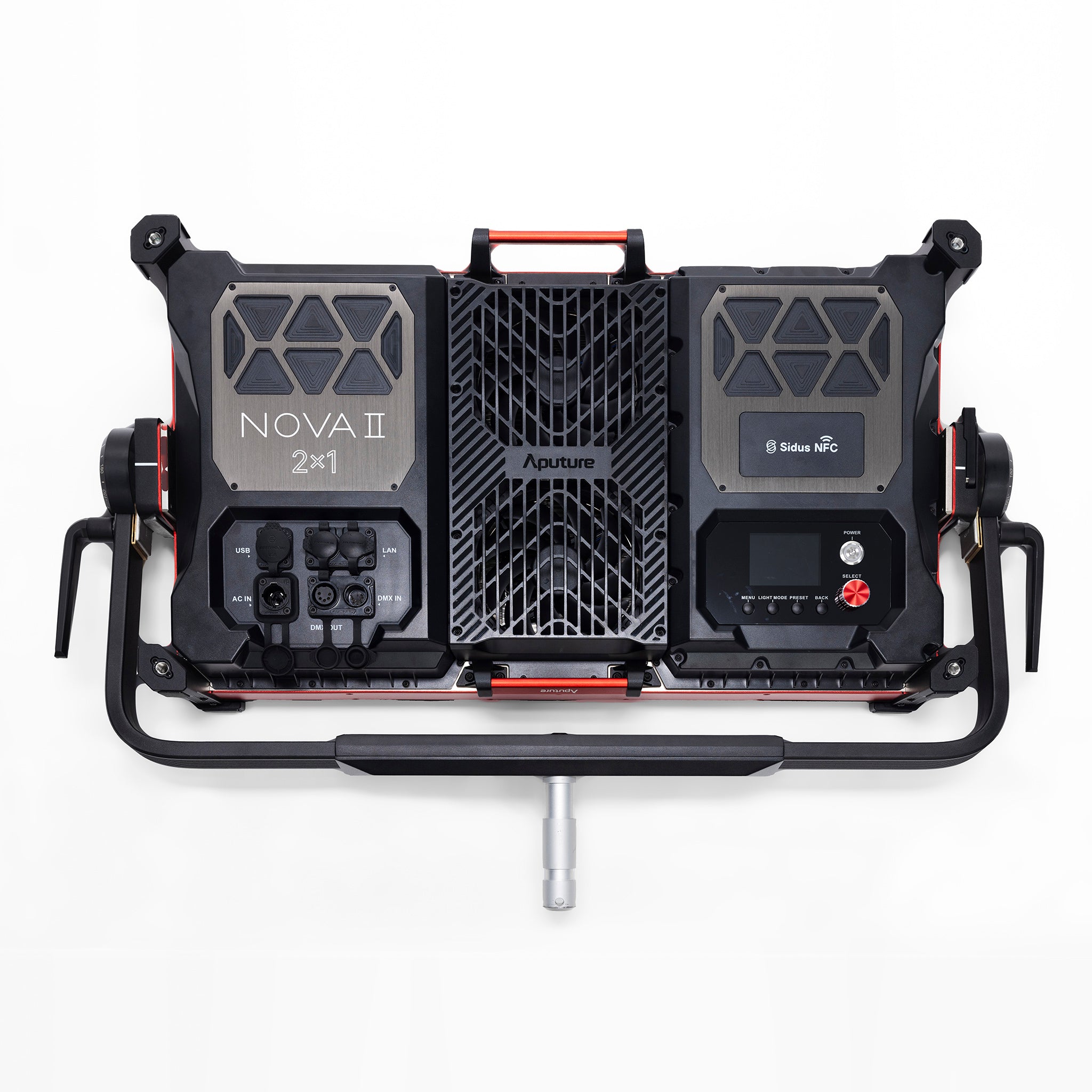

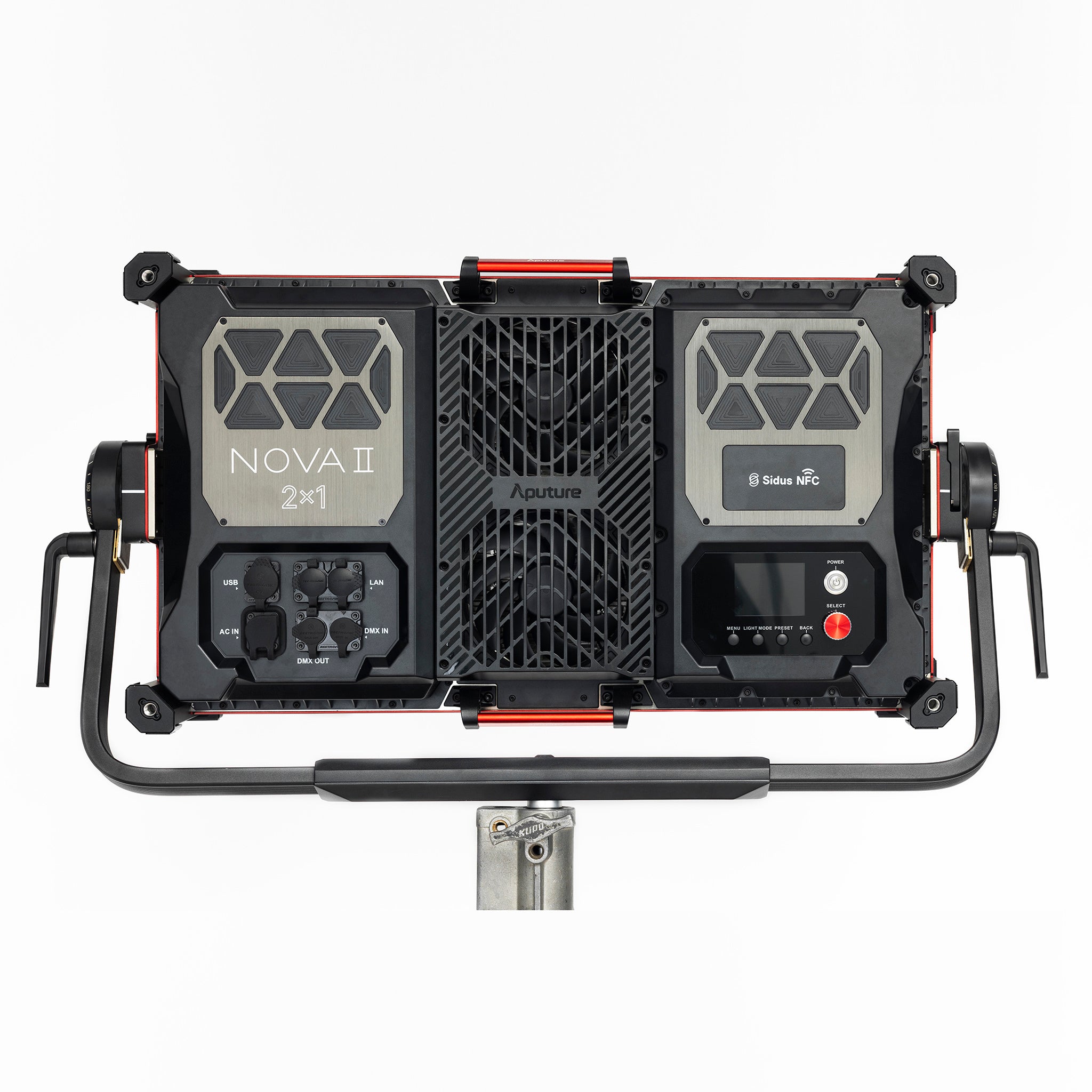

High-resolution rear color display panel clearly communicates fixture status and settings
Overview
Why We Built It?
NOVA II is a next generation panel light family without compromise. The BLAIR-CG light engine casts high fidelity white light and rich colors. A unique optical formula maintains brightness when used both direct and diffused. Design innovations introduce weather resistance while reducing noise and weight.
With NOVA II, Aputure reinvents the panel light.
Incredibly Accurate and Natural White Light
The NOVA II has a wide range of tunable white light with the best SSI performance to emulate tungsten, daylight, and everything in between.
Aputure’s BLAIR-CG light engine offers a tunable white range from 1800K-20,000K with full 100% MITC +/- Green adjustment, the Indigo emitter to activate natural fluorescence for lifelike colors, and a new Deep Red emitter to improve skin tone reproduction. High SSI (P3200 = 90, D5600 = 86) means you can trust your eyes that the camera will see what you do.
Colors Never Before Achieved in a Panel
The BLAIR-CG light engine in the NOVA II covers the greatest range of saturated colors of any panel light.

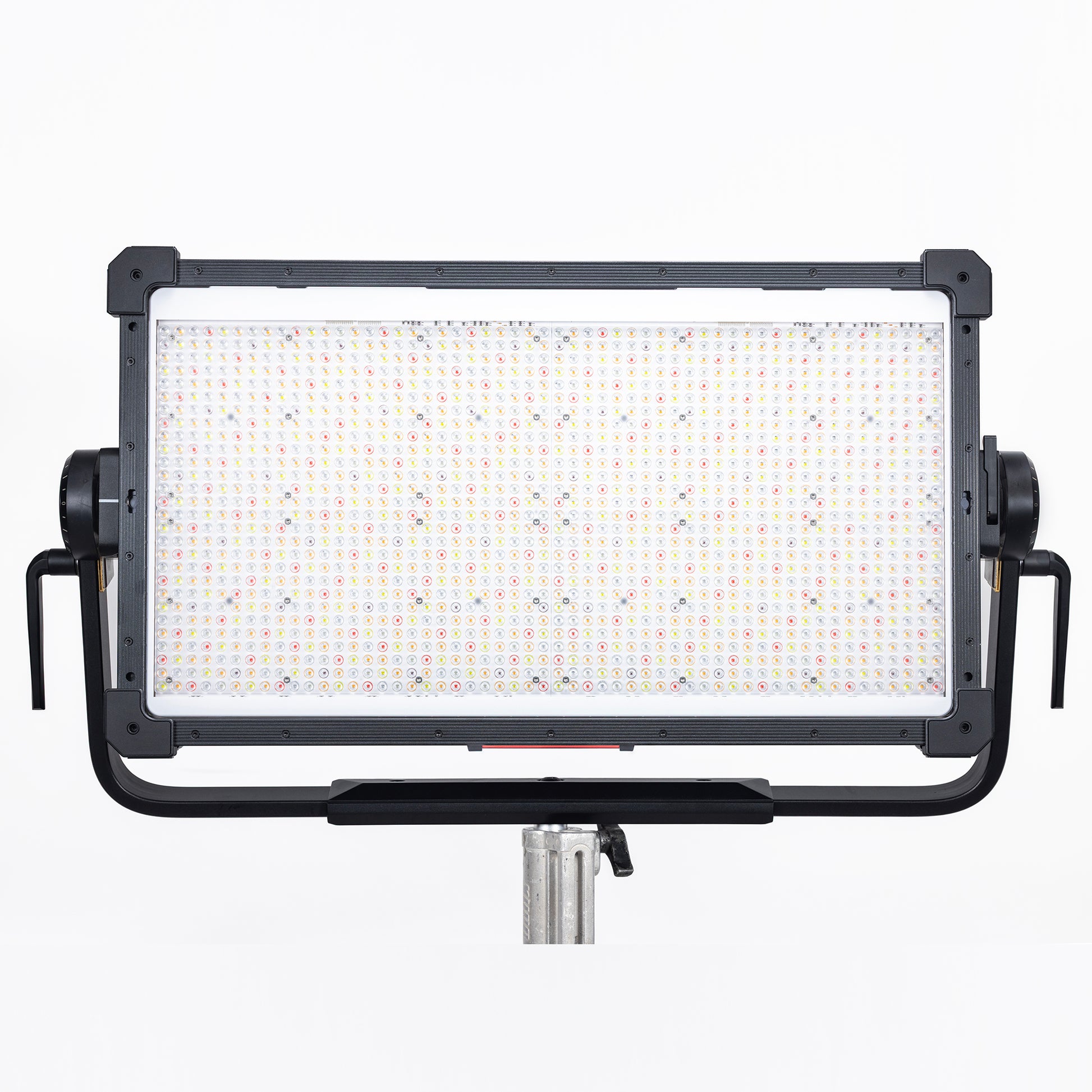

Blue/Lime/Amber/Indigo/Red/Cyan/Green emitters cover more than 90% of Rec.2020 color space. There are four blues and two reds, including Deep Red, for increased gamut and saturation. Using x,y and HSIC+ modes, dial in precise colors to match products, create backdrops, and even dial in perfect greenscreen or bluescreen keys to match your camera’s sensor.
The Brightest Light, Direct or Diffused
NOVA II delivers a direct 35° beam, which remains bright when diffused, providing increased versatility. This is the first panel family to deliver this performance.

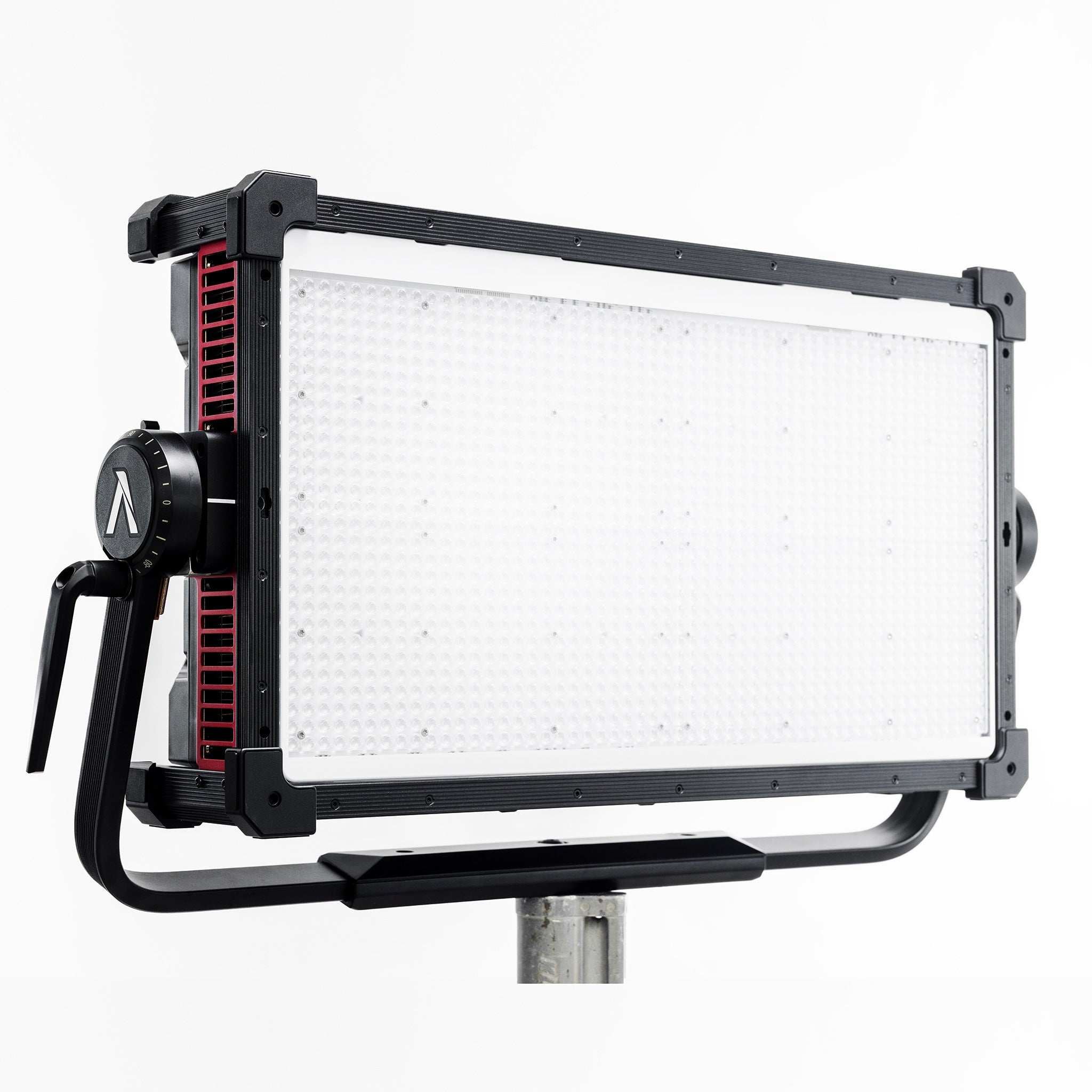

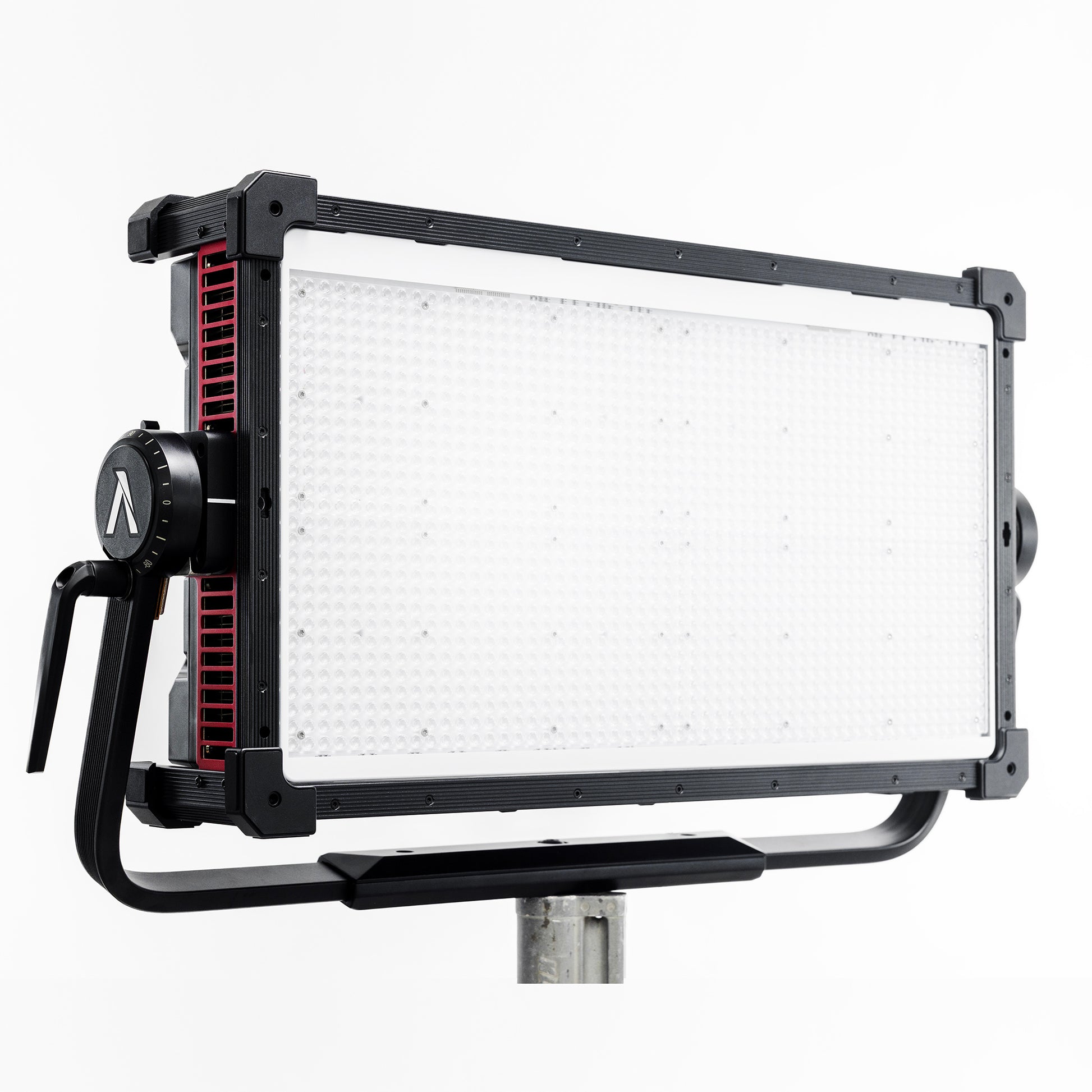

The NOVA II uses a unique three part “focus-then-blend” optical formula. Focusing TIR lenses are placed over individual LED emitters. These emitters are packed at a high density on the panel for increased output. Lastly, these lensed emitters are arranged in a complex neutralizing pattern to produce bright, even light with no visible color fringing on subjects.
Weatherproof, Quiet, Lightweight: Pick All Three
You don’t have to compromise. The advanced structural design of the NOVA II allows it to achieve three goals normally at odds: low noise, low weight, and IP65 weather protection.
A Complete Ecosystem
The NOVA II family is available with a wide range of accessories that make modifying and rigging fast, easy, and precise.
Modifiers attach and stack easily with the front loading QuickClip system. The removable yoke and rigging accessories allow for mounting lights in arrays or even combining NOVA II fixtures into a single, powerful source.
Specifications
LED Chipset: BLAIR-CG
CCT: 1800K – 20,000K
CRI: ≥95, TLCI: ≥95
SSI (Tungsten): 90, SSI (D56): 86
TM-30 RF (Average): 95, TM-30 RG (Average): 100
Native Beam Angle: 35º

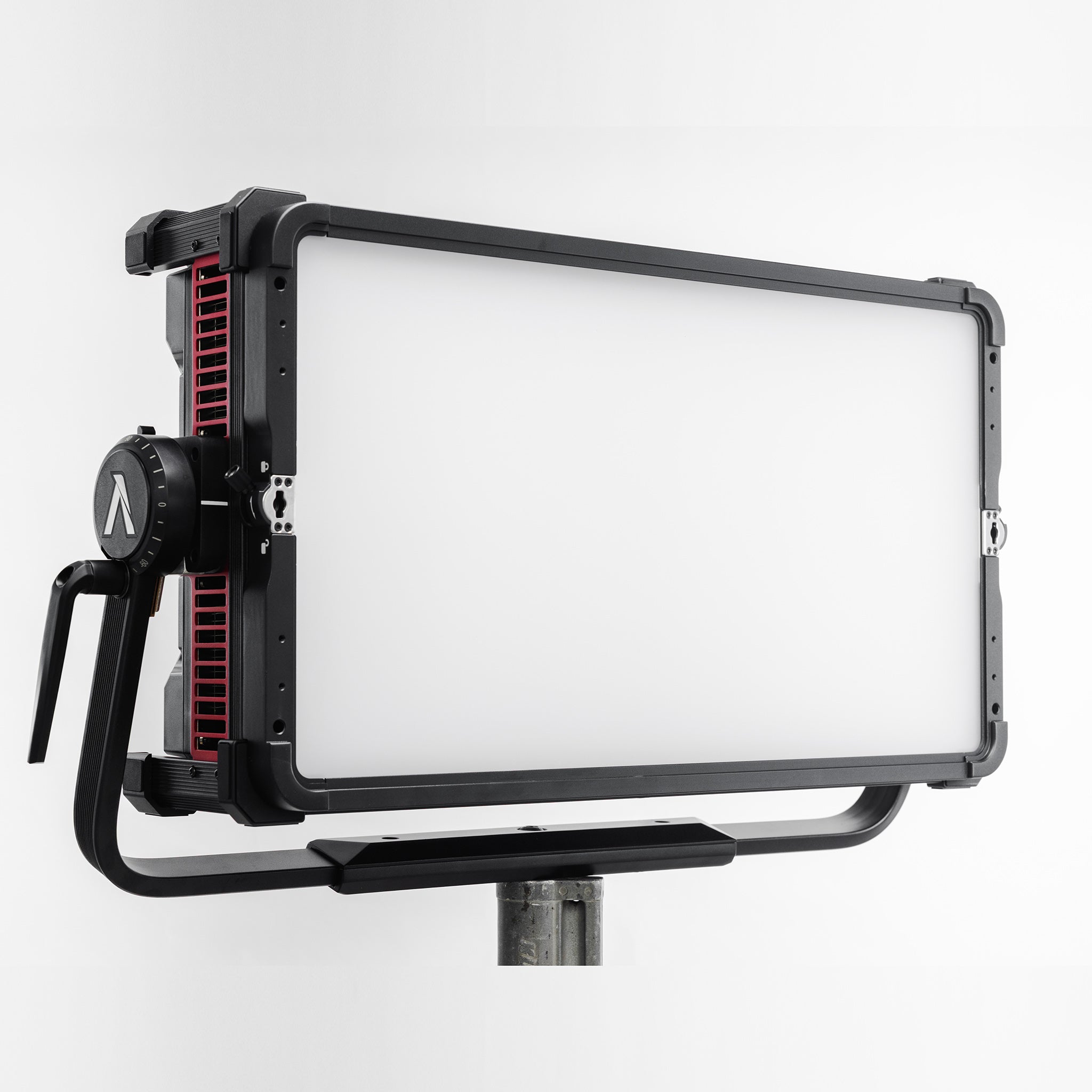

Included Flat Diffuser Beam Angle: 95º
Pixel Count: 2 pixels
Control Methods: On-board, Sidus Link, Sidus Link Pro, DMX512-A, LumenRadio CRMX, Art-Net/sACN, RDM
Control Ports: 1x 5-pin DMX in, 1x 5-pin DMX out, 2x locking Ethernet ports
Firmware Upgradeable: Sidus Link, Sidus Link Pro, USB-A
Wireless Range (Bluetooth & CRMX): ≤100m
Weather Resistance Rating: IP65
Operating Temperature: -20ºC ~ 45ºC
Storage Temperature: -40ºC ~ 85ºC
Cooling Method
Active (onboard fans)
Lamp Head Fan Noise Levels Smart Mode: Variable
Lamp Head Fan Noise Levels High Speed Mode: 40 dBa
Lamp Head Fan Noise Levels Medium Speed Mode: 35 dBa
Lamp Head Fan Noise Levels Silent Mode: 0 dBa
Dimensions and weight
Lamp Head (without Yoke): 69.1 x 38.8 x 13.6cm
Lamp Head (with Yoke): 82.9 x 56.6 x 15.4cm
Flat Diffuser: 68.4 x 37.5 x 4.0cm
Lamp Head (without Yoke): 16.25kg
Removable Yoke with Junior Pin: 2.40kg
Flat Diffuser: 2.00kg
AC Power Cable (6m): 0.80kg
Photometrics
Without modifier
1800K: 1m - 85100 lux/7906 fc; 3m - 12170 lux/1131 fc;
2500K: 1m - 163900 lux/15227 fc; 3m - 23520 lux/2185 fc;
3200K: 1m - 194400 lux/18060 fc; 3m - 27750 lux/2578 fc;
4300K: 1m - 200500 lux/18627 fc; 3m - 28850 lux/2680 fc;
5600K: 1m - 197300 lux/18330 fc; 3m - 28380 lux/2637 fc;
6500K: 1m - 194800 lux/18098 fc; 3m - 27970 lux/2599 fc;
10000K: 1m - 179400 lux/16667 fc; 3m - 25900 lux/2406 fc;
20000K: 1m - 158800 lux/14753 fc; 3m - 22880 lux/2126 fc;
Flat Diffuser
1800K: 1m - 18100 lux/1682 fc; 3m - 2268 lux/211 fc;
2500K: 1m - 34800 lux/3233 fc; 3m - 4350 lux/404 fc;
3200K: 1m - 40100 lux/3725 fc; 3m - 5040 lux/468 fc;
4300K: 1m - 41300 lux/3837 fc; 3m - 5190 lux/482 fc;
5600K: 1m - 40700 lux/3781 fc; 3m - 5130 lux/477 fc;
6500K: 1m - 40200 lux/3735 fc; 3m - 5070 lux/471 fc;
10000K: 1m - 36500 lux/3391 fc; 3m - 4620 lux/429 fc;
20000K: 1m - 31300 lux/2908 fc; 3m - 3940 lux/366 fc;
Dome Diffuser
1800K: 1m - 17020 lux/1581 fc; 3m - 2085 lux/194 fc;
2500K: 1m - 32700 lux/3038 fc; 3m - 4000 lux/372 fc;
3200K: 1m - 37600 lux/3493 fc; 3m - 4610 lux/428 fc;
4300K: 1m - 38800 lux/3605 fc; 3m - 4730 lux/439 fc;
5600K: 1m - 38200 lux/3549 fc; 3m - 4680 lux/435 fc;
6500K: 1m - 37800 lux/3512 fc; 3m - 4620 lux/429 fc;
10000K: 1m - 34300 lux/3187 fc; 3m - 4190 lux/389 fc;
20000K: 1m - 29410 lux/2732 fc; 3m - 3600 lux/334 fc;
