Key features

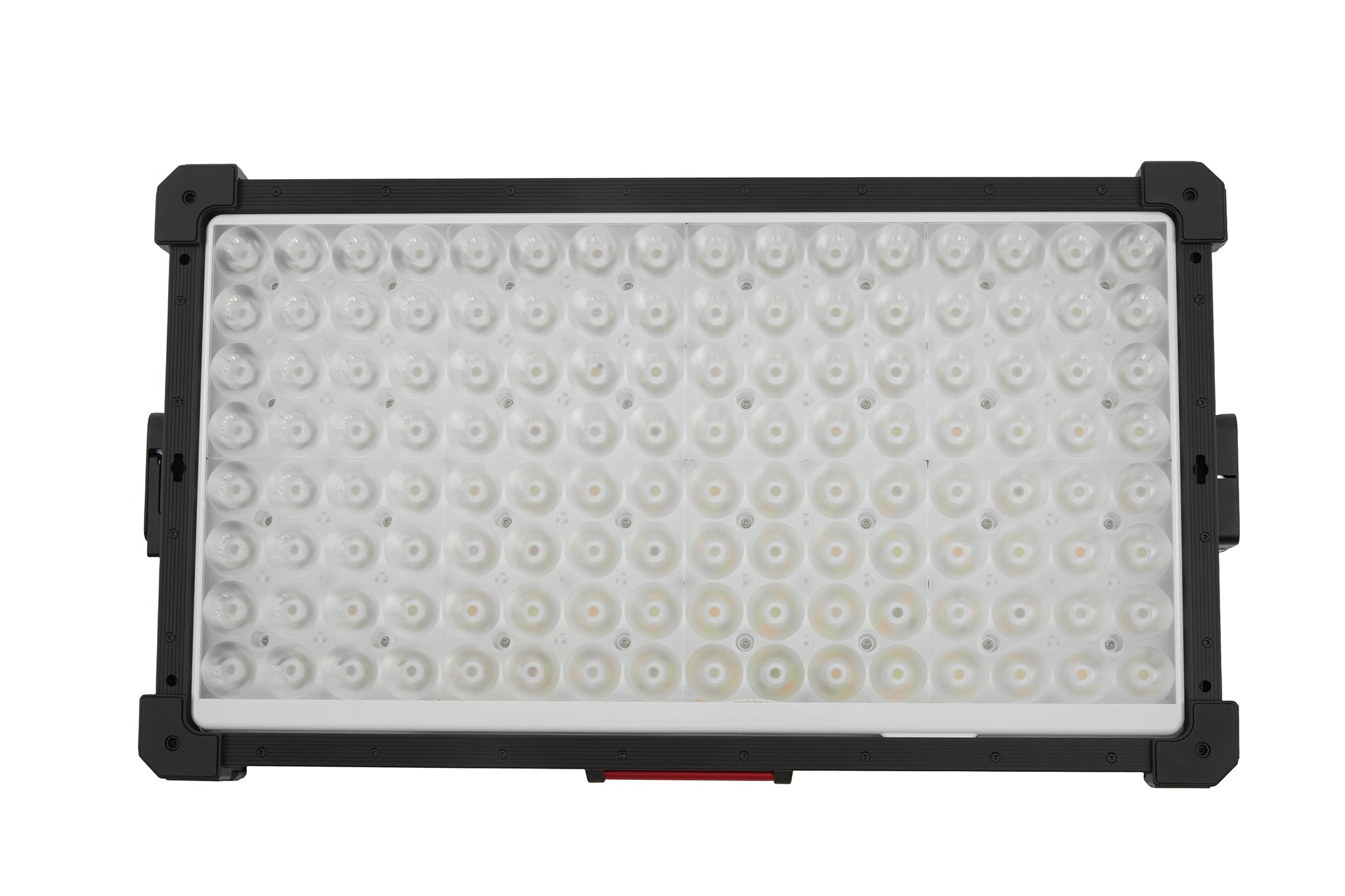

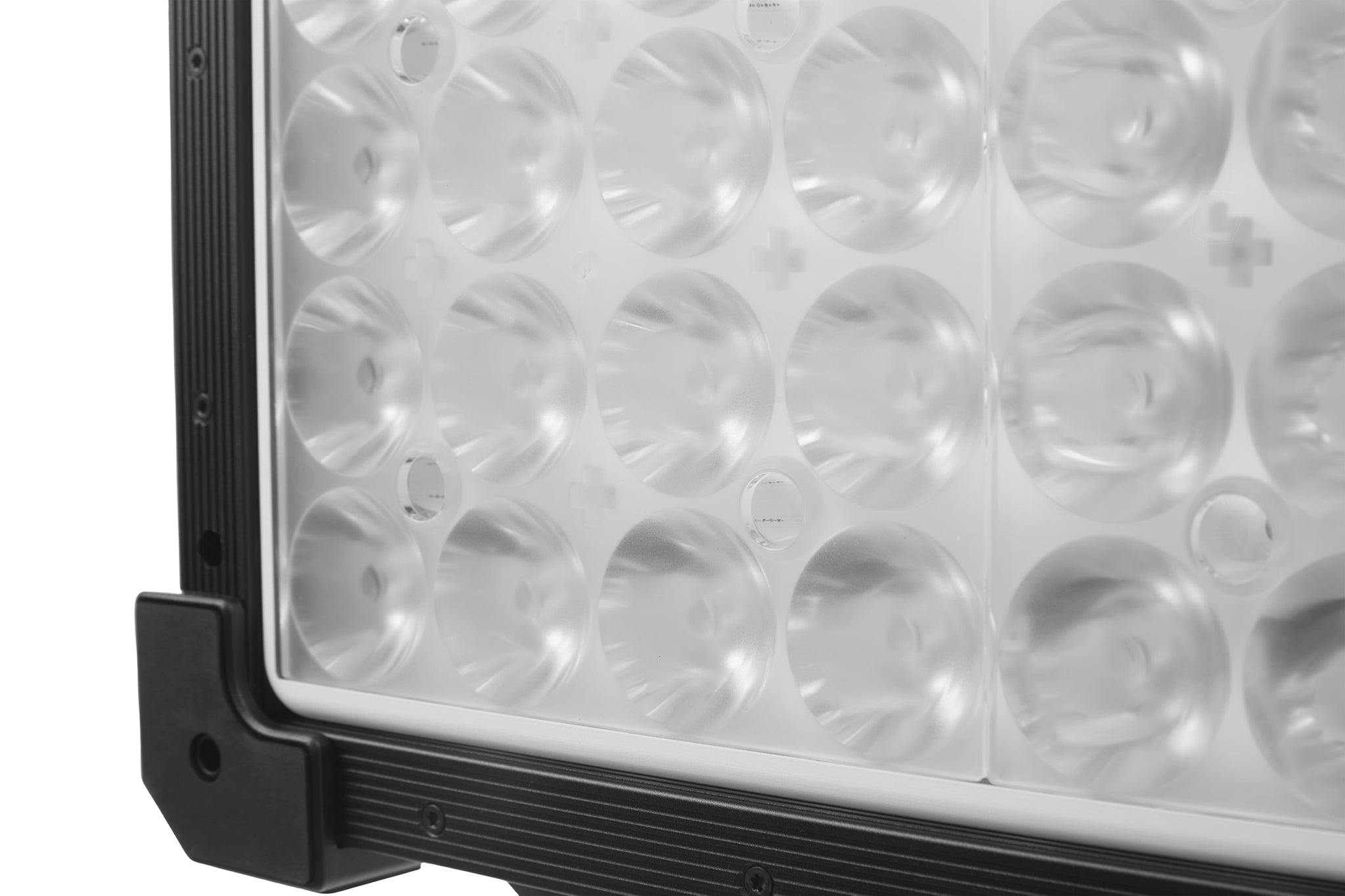

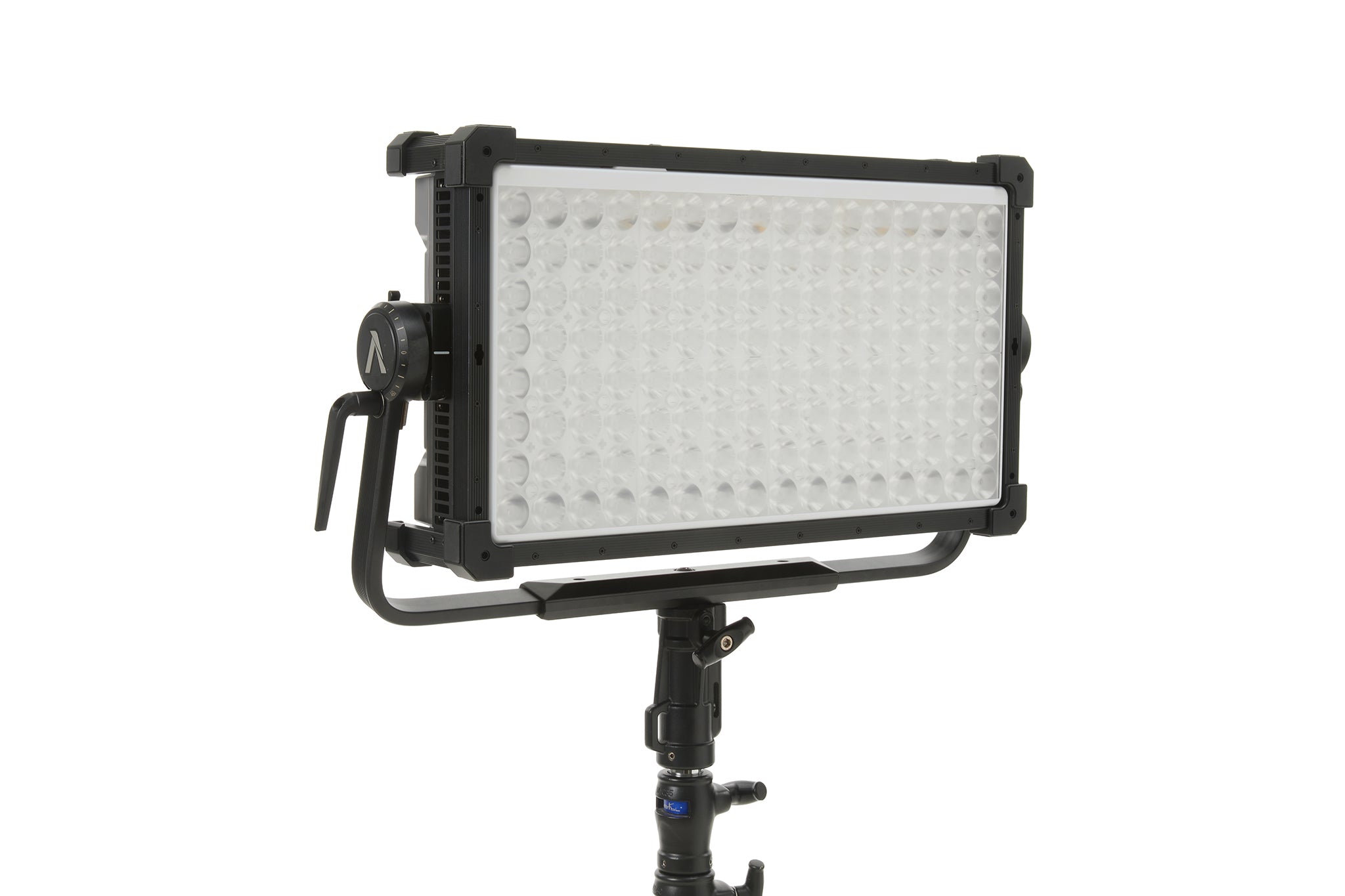

650W output lensed LED panel light fixture
Tight 9º native beam angle
BLAIR chipset: Blue, Lime, Amber, Indigo, Red diodes
Advanced white point control with G/M color correction (±G 100% Full ASC MITC Range)

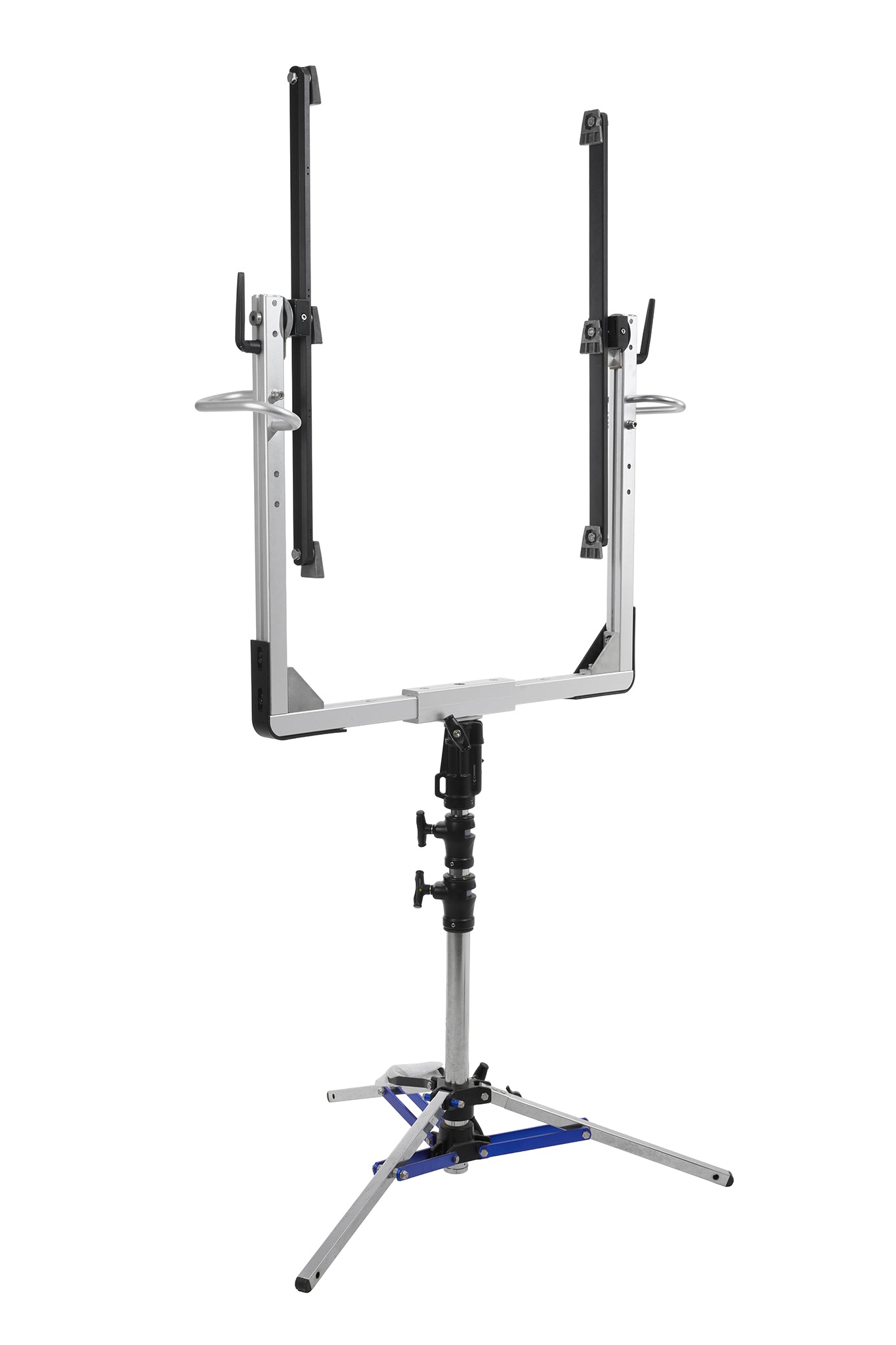

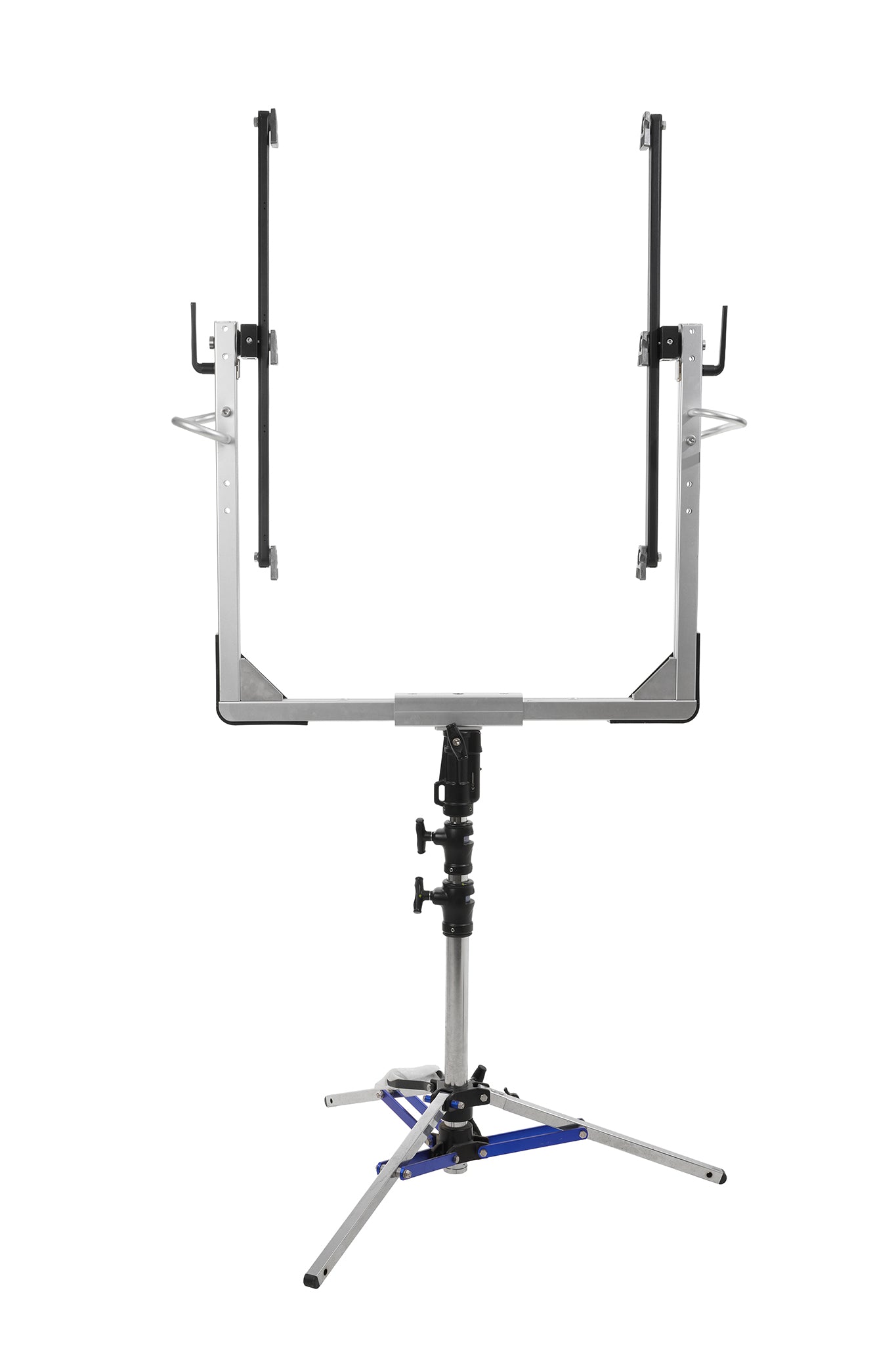

Stackable into a powerful 3-light yoke configuration
4 horizontal pixel zones for ultra smooth transitions
CCT range of 1800K-20000K
Bare bulb output: 66200 lux @3m 5600K, flat diffusion panel: 2423 lux @3m 5600K
Ultra-high color accuracy: CRI≥95, TLCI≥95, CQS ≥96, SSI: 89, SSI: 86, TM-30 Rf (avg) 95, TM-30 Rg (avg) 100
New QuickClip direct front-mounting accessory ecosystem

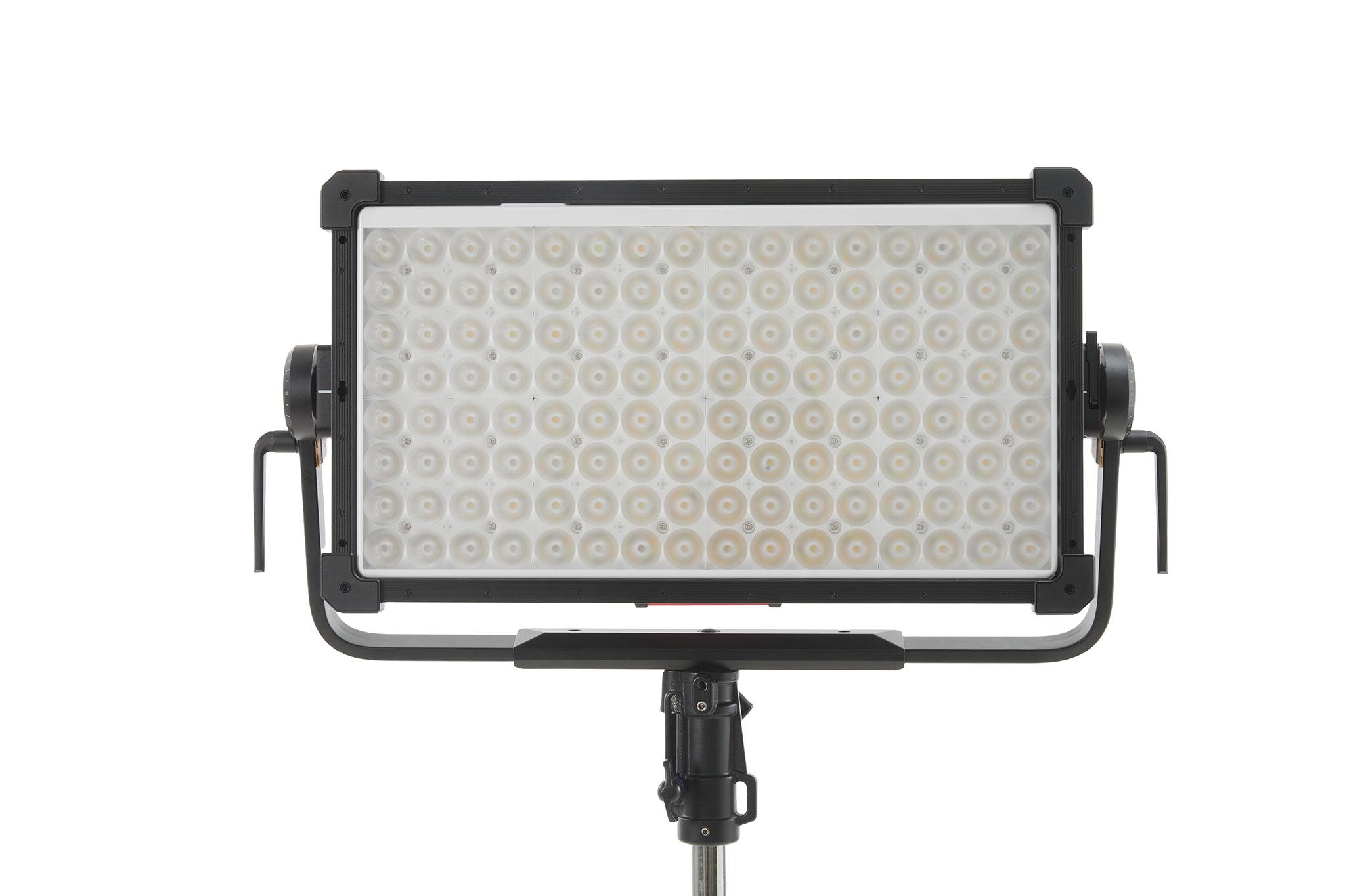

Features removable yoke for rigging flexibility
High output to weight ratio: lamp head weight with yoke: 19.65 kg
IP65 weather resistance
Control: Sidus Link, Sidus Link Pro, DMX, CRMX, Art-Net/sACN
16-bit 5-Pin DMX512 in & out ports, 2x locking Ethernet ports
Smooth 0.1-100% stepless dimming
Dual output modes: Max and Constant
Lead-follow and studio mode
4 fan modes: Smart, High, Medium, Silent (DMX controllable)
4 dimming curves: Linear, Exponential, Logarithmic, S-shaped
15 built-in light effects, 10 savable presets
Firmware upgrades through Sidus Link Pro/Sidus Link, USB drive, and DMX

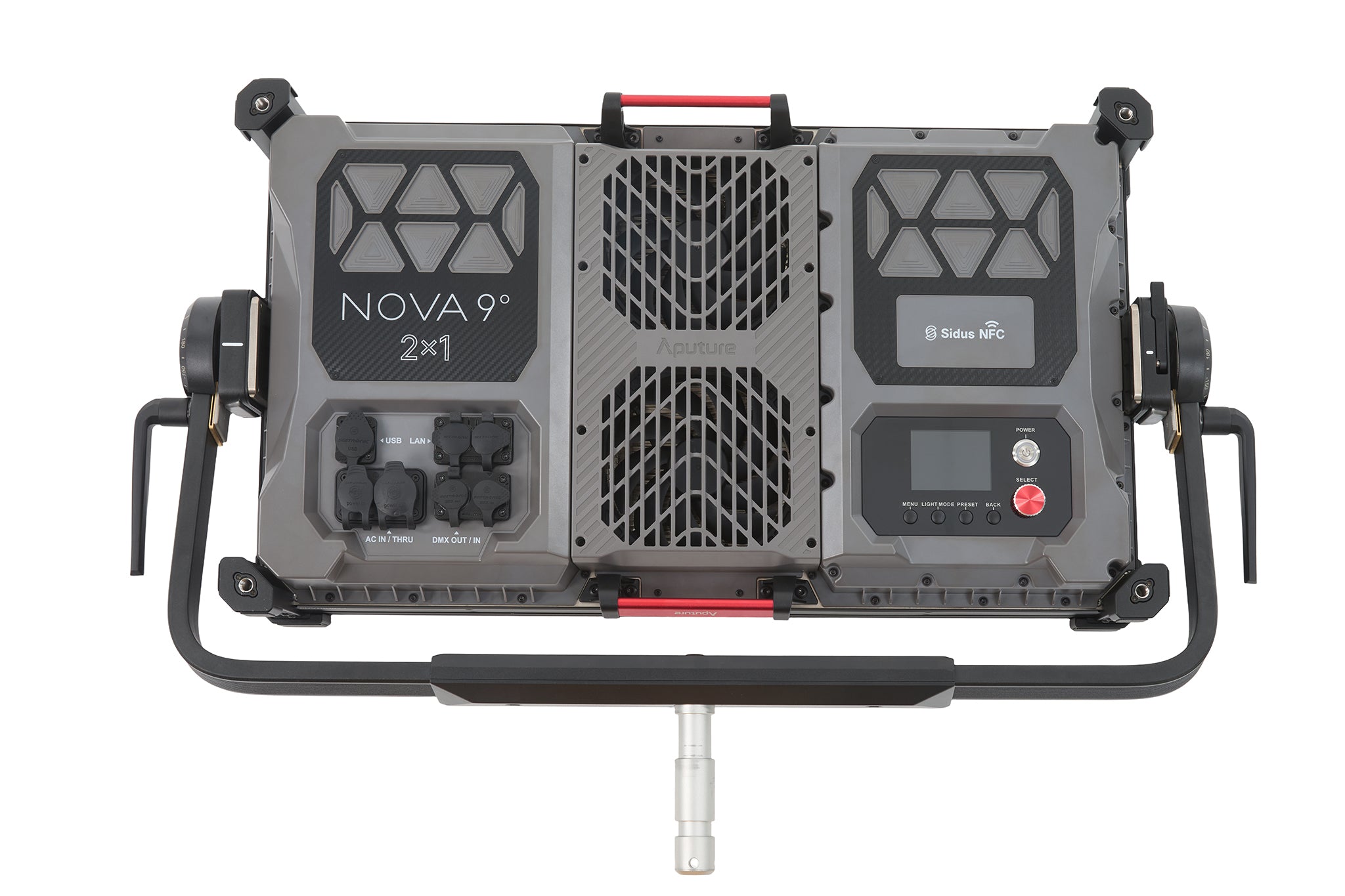

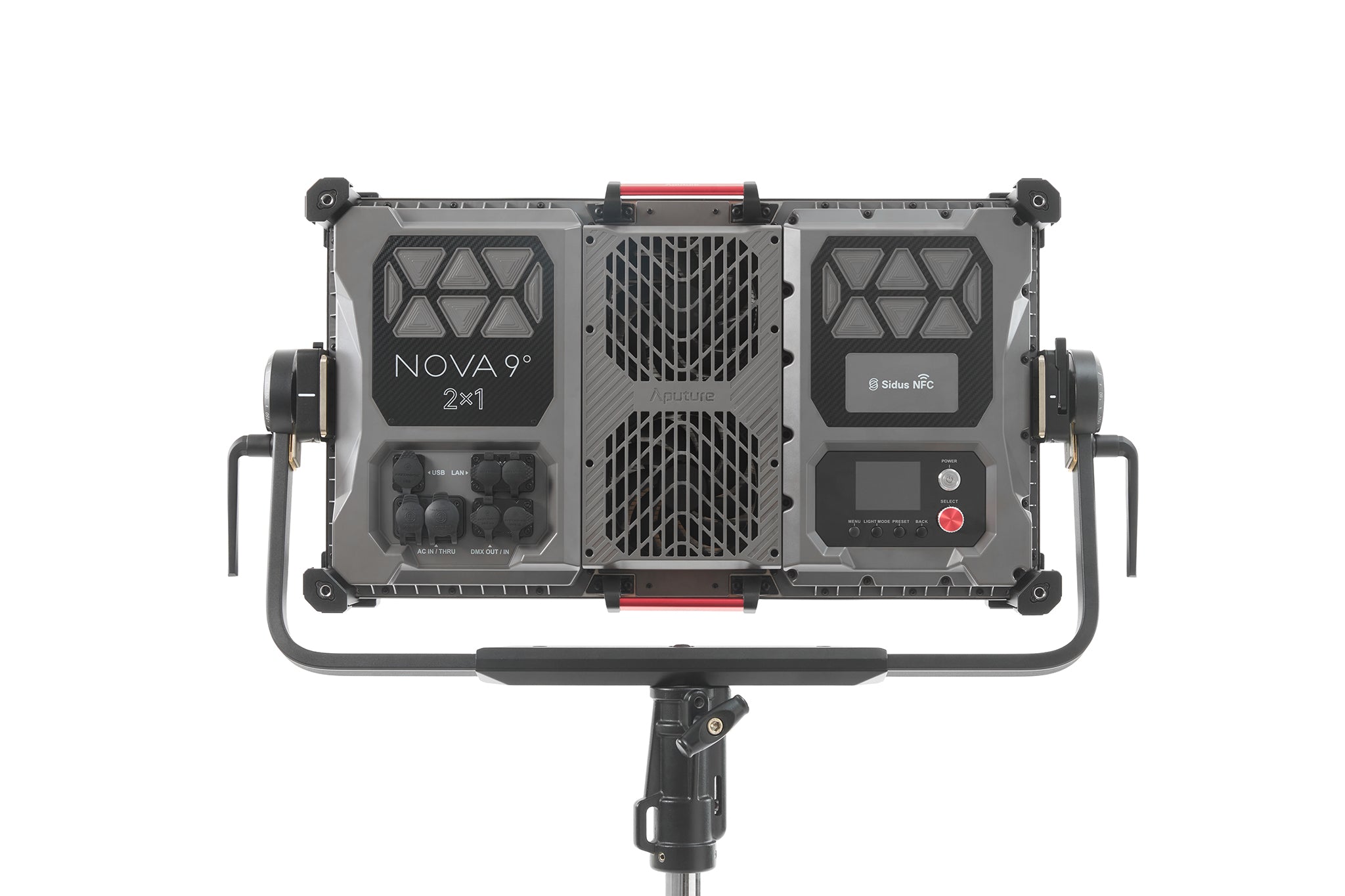

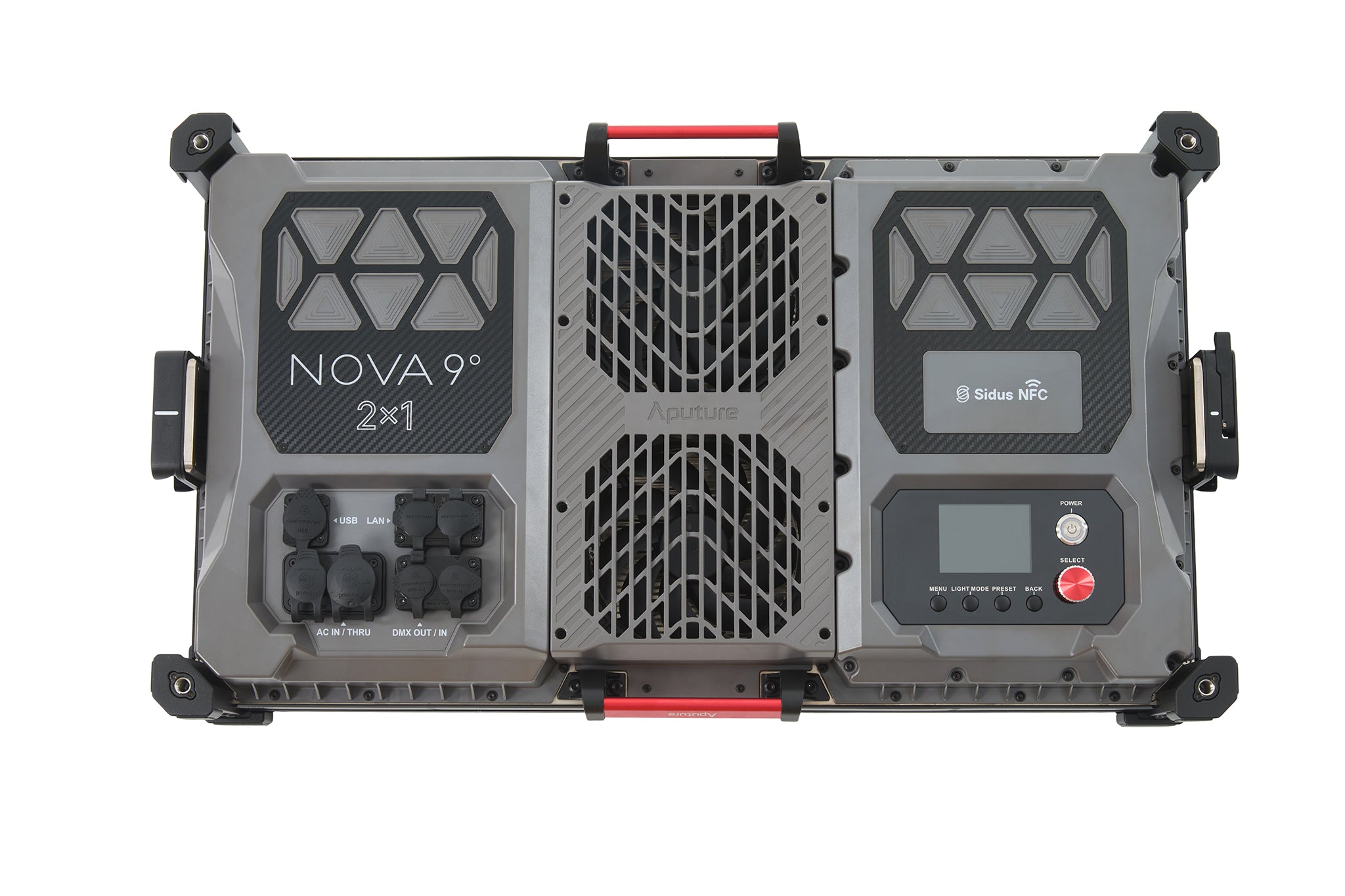

High-resolution rear status color display panel
Overview
Long Throw, Hard Shadows
The NOVA 9° 2x1 is specially tuned to throw intense, directional, tunable white light over great distances with minimal angle spread. NOVA 9° 2x1 outputs a narrower beam than any other panel light.
Create strong sunbeam effects on any subject, with pleasing directional shadow quality.
The Best Color of Any Narrow Beam Panel
The advanced BLAIR light engine in the NOVA 9° 2x1 outputs the highest quality tunable white light of any narrow beam panel light.
Blue/Lime/Amber/Indigo/Red/Cyan/Green emitters combine multiple hues of light for extreme white light quality. The Indigo emitters in the BLAIR engine enhance the colors of naturally fluorescing materials, just like sunlight, and the Extended Red emitters enrich skin tones and extend the CCT range to 1800-20000K.
Sunbeams, Anywhere

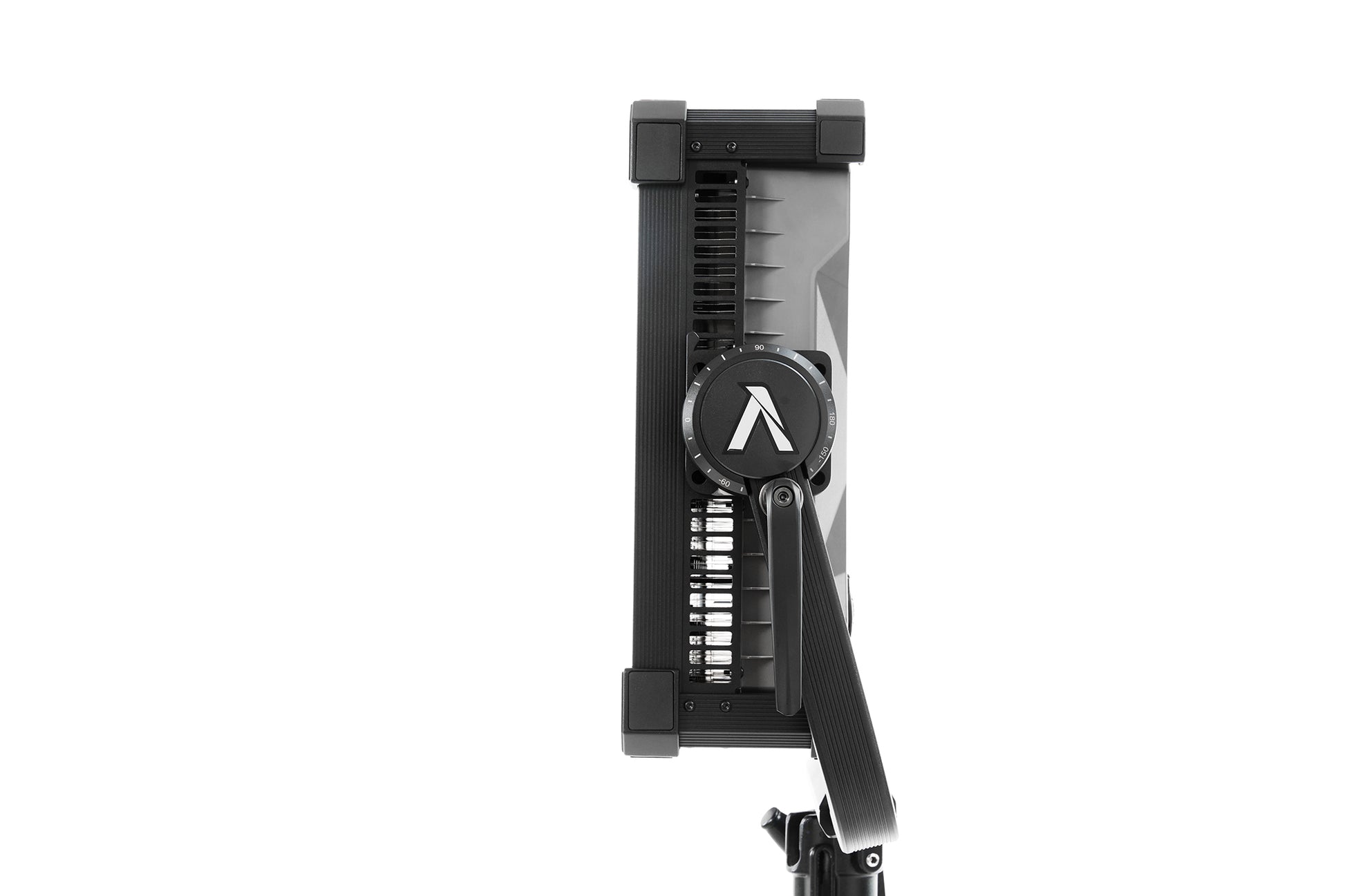

Thanks to the shallow footprint, the NOVA 9° 2x1 is perfect for use with reflectors, through windows, or wherever beams of sunlight are needed.
At 5 meters, the NOVA 9° 2x1 is twice as bright as a 5000W tungsten fresnel at full spot (28090 lux vs 14920 lux)
Weatherproof, Quiet, Lightweight: Pick All Three
The advanced structural design of the NOVA 9° 2x1 allows it to achieve three goals normally at odds: low noise, low weight, and IP65 weather protection. The NOVA 9° 2x1 panel is IP65 weather protected, has fan noise below 40dB in high speed mode, and weighs less than 20kg including the yoke.
Specifications
LED Chipset: BLAIR
CCT Range: 1800K – 20000K
CRI: ≥95, TLCI: ≥95
SSI (Tungsten): 89, SSI (D56): 86
TM-30 RF (Average): 95, TM-30 RG (Average): 100
Native Beam Angle: 9º
Included Flat Diffuser Beam Angle: 80º
Pixel Count: 4 pixel
Max Power Consumption: 800W
Max Power Output: 650W
AC Operating Voltage 100V ~ 240V / 50-60 Hz
Weather Resistance Rating: IP65
Operating Temperature: -20ºC ~ 50ºC
Storage Temperature: -40ºC ~ 80ºC
Cooling Method: Active (onboard fans)
Lamp Head Fan Noise Levels @ 1m Smart Mode: Variable
Lamp Head Fan Noise Levels @ 1m High Speed Mode: 40 dBa
Lamp Head Fan Noise Levels @ 1m Medium Speed Mode: 35 dBa
Lamp Head Fan Noise Levels @ 1m Silent Mode: 0 dBa
Control Methods: Onboard, Sidus Link, Sidus Link Pro, DMX512, CRMX, Art-Net/sACN, RDM

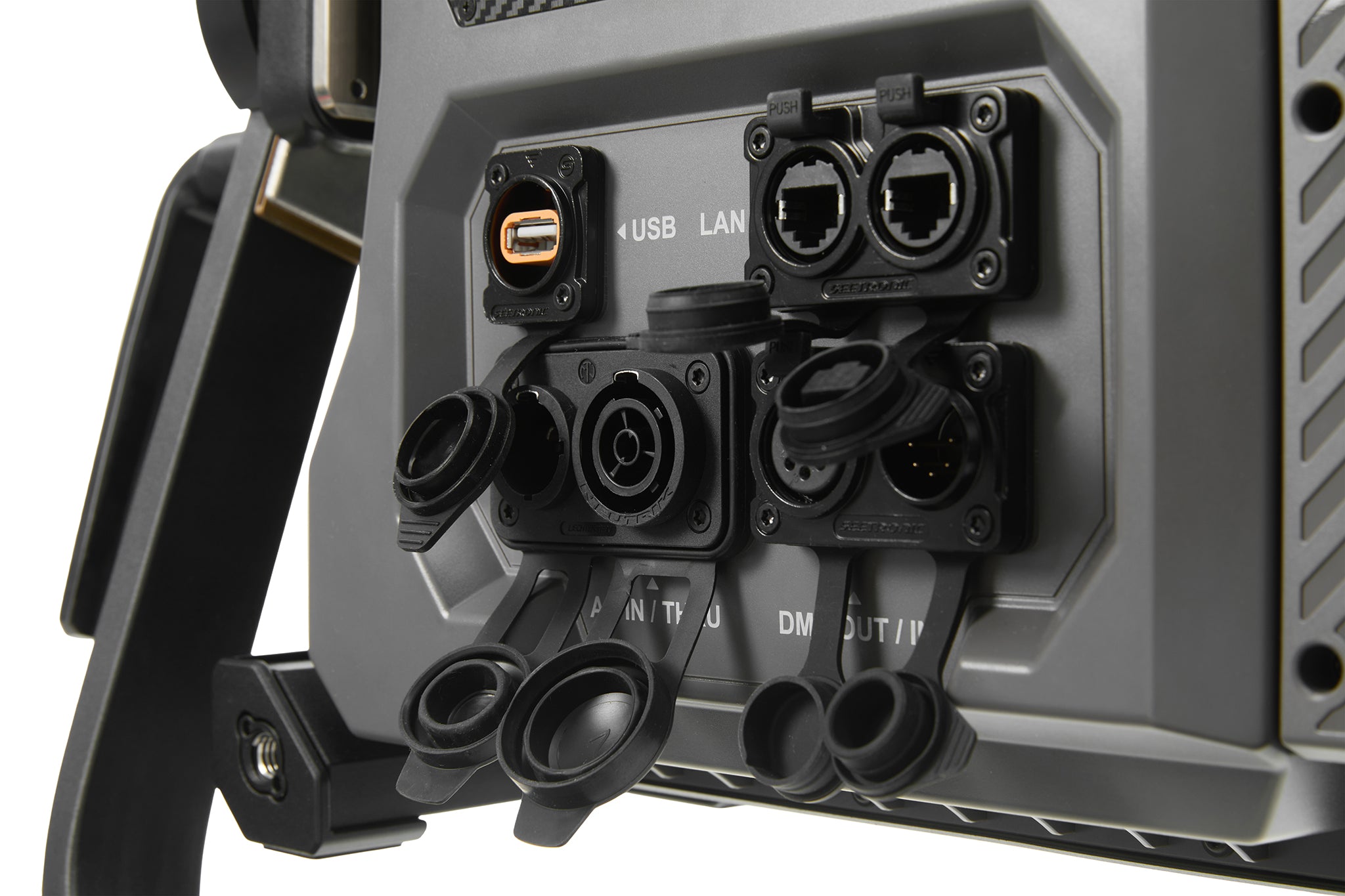

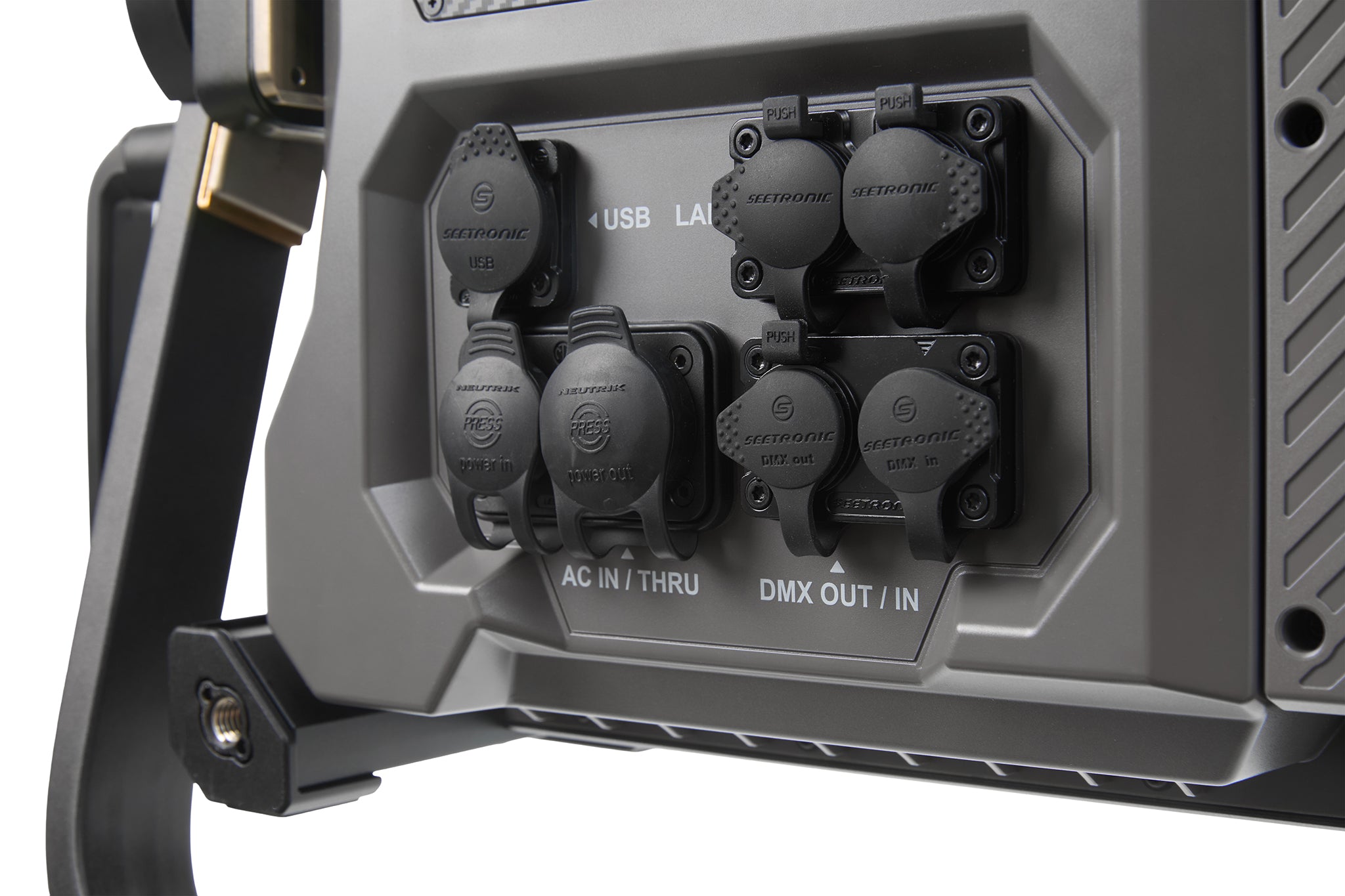

Control Ports: 1x 5-pin DMX in, 1x 5-pin DMX out, 2x locking RJ45
Firmware Upgrade Methods: Sidus Link, Sidus Link Pro, USB-A
Wireless Range (Bluetooth & CRMX): ≤100m
Lamp Head (Without Yoke): 69.1 × 38.8 ×13.6 cm
Lamp Head (With Yoke): 82.9 × 56.6 × 15.4 cm
Flat Diffuser: 68.4 x 37.5 × 4.0 cm
Lamp Head (Without Yoke): 17.25 kg
Removable Yoke with Junior Pin: 2.40kg
Flat Diffuser: 2.00kg

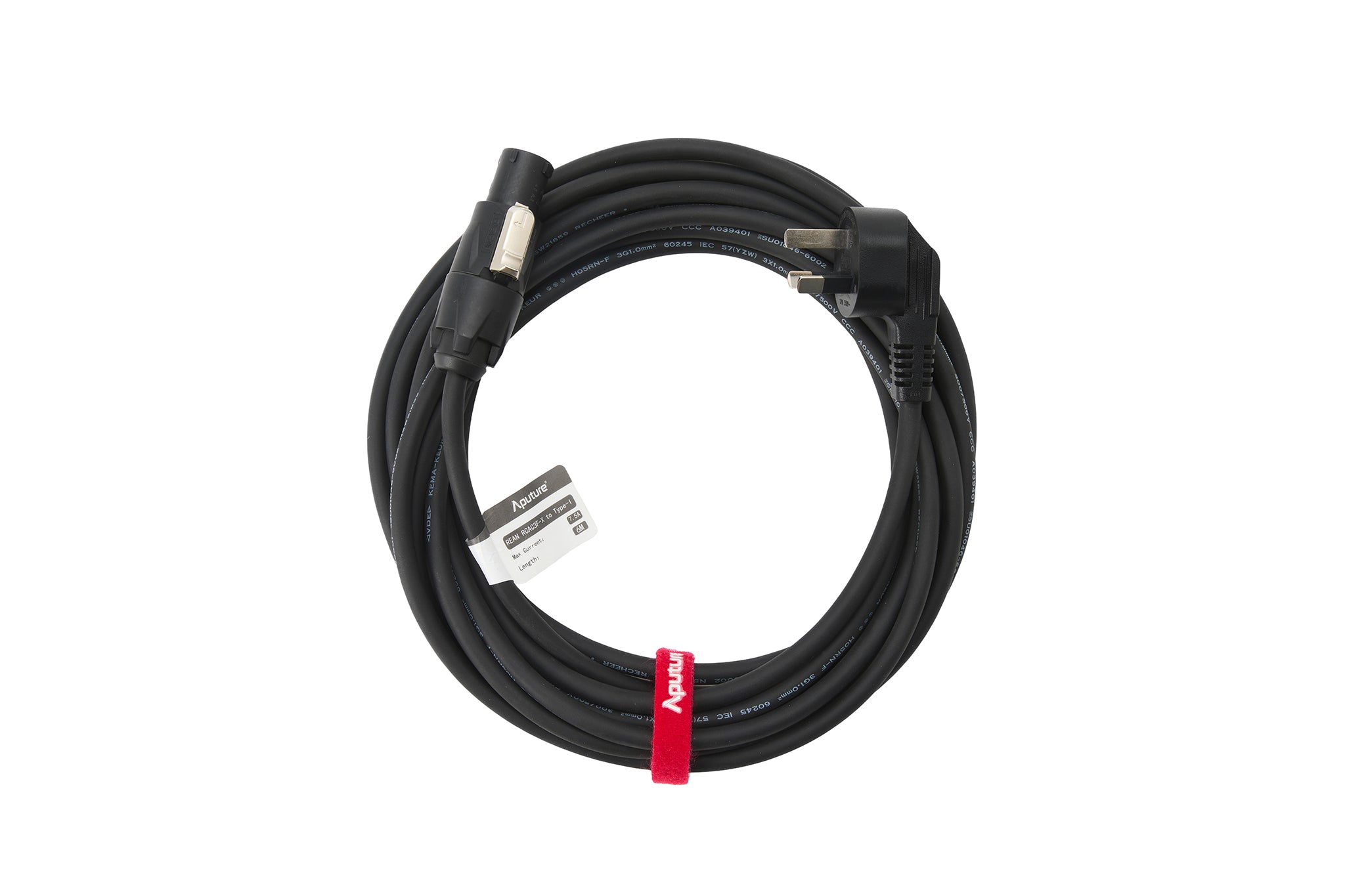

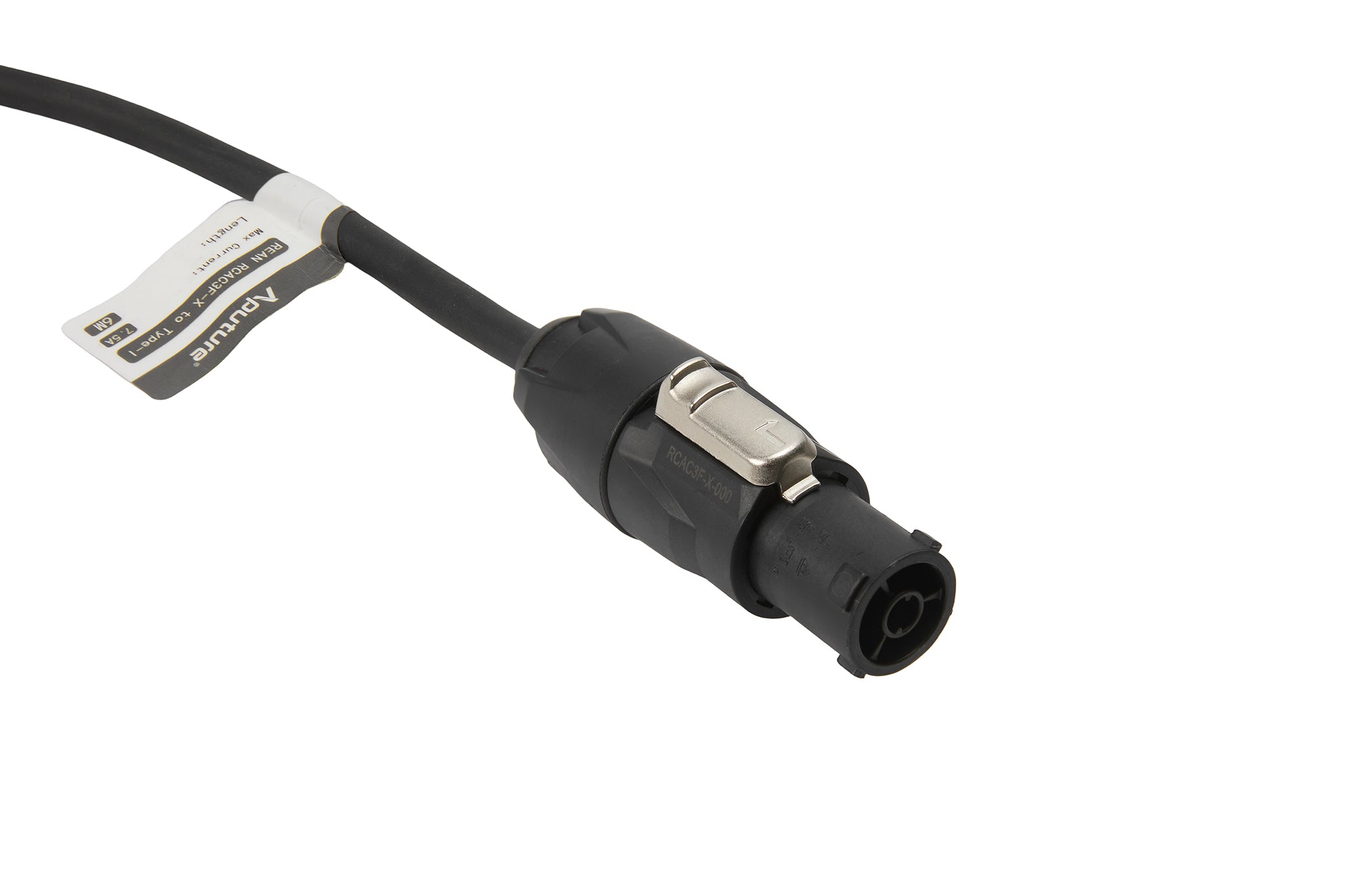

AC Power Cable (6m): 0.80 Kg
Photometrics
No Modifier
1800K: 5m - 19590 lux /1819 fc; 10m - 5030 lux /467 fc; 20m - 1329 lux /123 fc;
2500K: 5m - 25410 lux /2365 fc; 10m - 7090 lux /659 fc; 20m - 1881 lux /175 fc;
3200K: 5m - 28090 lux /2611 fc; 10m - 7660 lux /712 fc; 20m - 2040 lux /190 fc;
4300K: 5m - 29980 lux /2786 fc; 10m - 8340 lux /775 fc; 20m - 2229 lux /207 fc;
5600K: 5m - 29730 lux /2765 fc; 10m - 8320 lux /773 fc; 20m - 2229 lux /207 fc;
6500K: 5m - 29270 lux /2719 fc; 10m - 8220 lux /764 fc; 20m - 2203 lux /205 fc;
10000K: 5m - 27150 lux /2524 fc; 10m - 7660 lux /712 fc; 20m - 2064 lux /192 fc;
20000K: 5m - 24210 lux /2249 fc; 10m - 6920 lux /643 fc; 20m - 1863 lux /173 fc;
Flat Diffuser
1800K: 5m - 615 lux / 57 fc;
2500K: 5m - 794 lux / 74 fc;
3200K: 5m - 879 lux / 82 fc;
4300K: 5m - 940 lux / 87 fc;
5600K: 5m - 935 lux / 87 fc;
6500K: 5m - 924 lux / 86 fc;
10000K: 5m - 859 lux / 80 fc;
20000K: 5m - 769 lux / 71 fc;

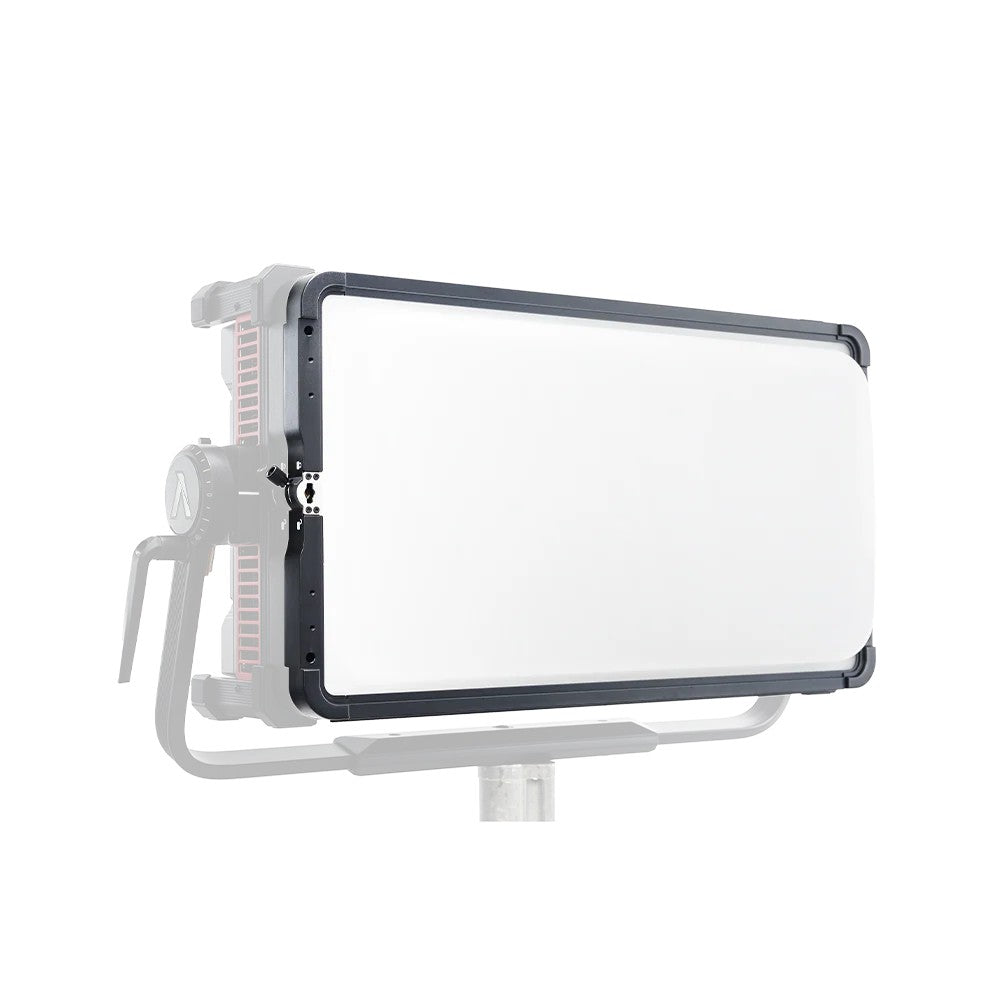

Dome Diffuser (Heavy Frost)
1800K: 5m - 1474 lux / 137 fc;
2500K: 5m - 1993 lux / 185 fc;
3200K: 5m - 2181 lux / 203 fc;
4300K: 5m - 2347 lux / 218 fc;
5600K: 5m - 2345 lux / 218 fc;
6500K: 5m - 2318 lux / 215 fc;
10000K: 5m - 2152 lux / 200 fc;
20000K: 5m - 1941 lux / 180 fc;

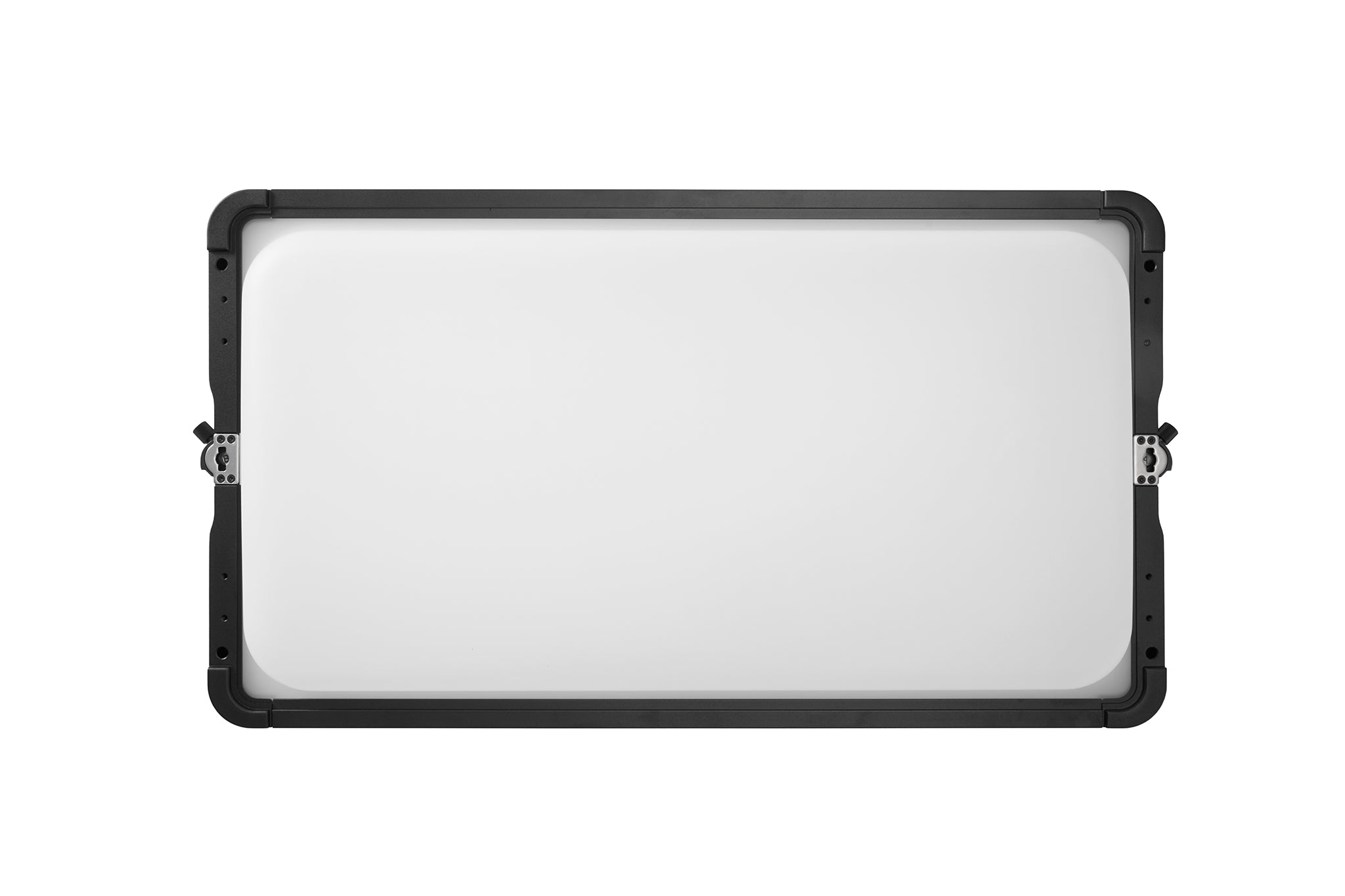

Dome Diffuser (Light Frost)
1800K: 5m - 1700 lux / 158 fc;
2500K: 5m - 2283 lux / 212 fc;
3200K: 5m - 2489 lux/ 231 fc;
4300K: 5m - 2675 lux / 249 fc;
5600K: 5m - 2660 lux / 247 fc;
6500K: 5m - 2620 lux / 243 fc;
10000K: 5m - 2432 lux / 226 fc;
20000K: 5m - 2193 lux / 204 fc;
