Blackmagic Design Ultimatte Smart Remote 4 G2
Blackmagic Design Ultimatte Smart Remote 4 G2
Made to order — Delivery in 15 business days
Our team is here to help.
About the product

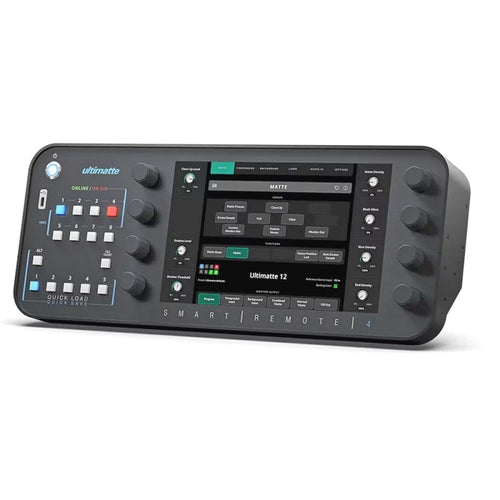

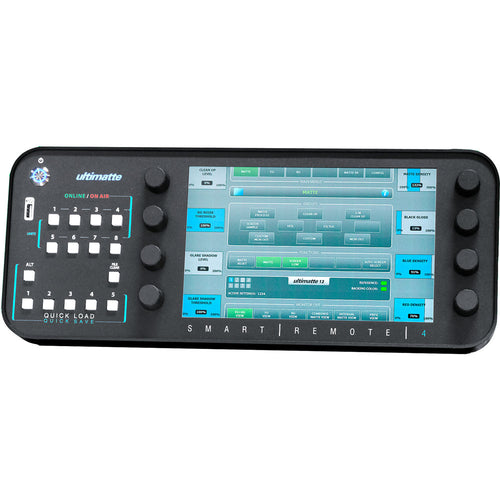

Ultimatte Smart Remote 4 G2
You now have the ability to control up to eight Ultimatte 12 processors simultaneously via Ethernet. The Smart Remote 4 features a 10.1-inch touchscreen that allows for quick navigation through menus and changing settings. Additionally, the physical control elements with online and on-air indicators allow for quick switching between processors. With the File Clear button, you can automatically set the most important parameters and achieve excellent compositions on the fly.
Ports:
HDMI video outputs: 1 (1080p60)
Computer interface:
2 USB-C 3.0 ports on the back for connecting an external mouse and keyboard to activate Smart Remote Control and for connecting USB-C storage devices, through which you can load static images and save or retrieve presets and archives
1 USB-C 3.0 port on the front panel with the same functions as the USB-C ports on the back panel. Additionally, it can connect a Mac or PC for software updates and configuration using the Ultimatte Setup Utility
All USB-C ports support power for connected devices
Ethernet: 2x 10/100/1000 Mbit/s Ethernet ports for connecting to LAN networks for controlling Ultimatte 12 and for software updates using the Ultimatte Setup Utility
Features:
Rotary knobs: 8 rotary knobs for parameter adjustment
Device ID buttons: 8 buttons that light up blue when active
Device ID LED indicators: Green light indicates "online" status, while red indicates "on air"
Alt + Quick-Load/Save buttons: Alt button plus 5 buttons for saving presets
Quick-Load/Save buttons: 5 buttons for loading presets
File-Clear button: 1 button for Auto Key
Alt + File-Clear button: Alt and File-Clear buttons for automatic Key function with user presets
User menus: 4 menus for creating user menus with frequently used commands
LED control: User-adjustable brightness controls for the LEDs
Physical installation:
Adaptable for table installation. The kit includes rack brackets for installing the Smart Remote in a 19-inch rack
Delivery kit:
Ultimatte Smart Remote 4 G2
Start folder with QR code for downloading the software
