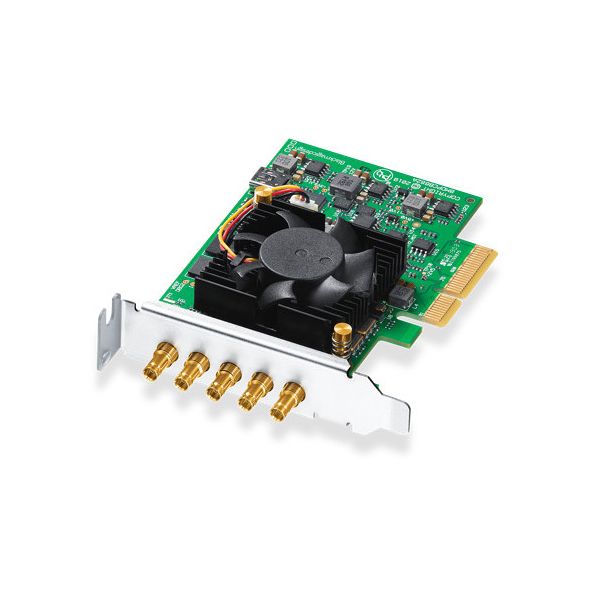

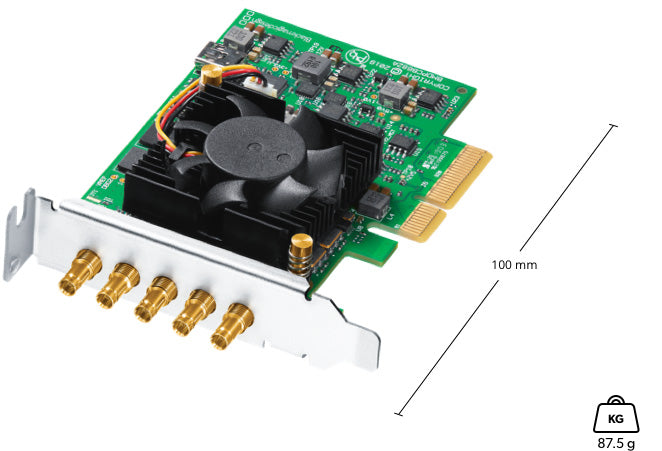

Blackmagic Design DeckLink Duo 2 Mini
Blackmagic Design DeckLink Duo 2 Mini
In stock
Installment purchase option via TBI Bank.
Installment purchase option via TBI Bank is available. Select payment method at checkout.
Our team is here to help.
Delivery
In stock (Orders placed before 5pm on a business day will be processed the same business day, orders placed after 5pm or on a non-business day will be processed the next business day.)Free shipping on orders over €50
Warranty
36 months
About the product

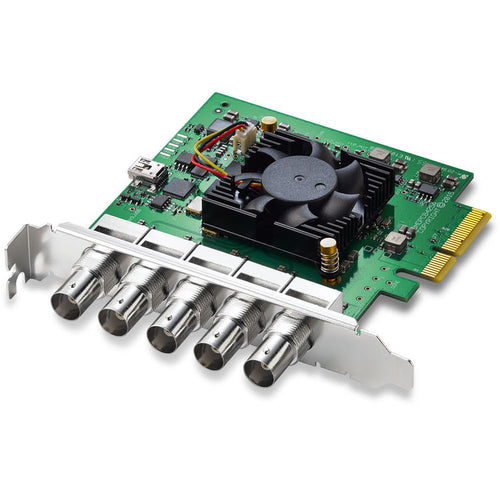

DeckLink Duo 2
Featuring 4 independent 3G-SDI connections, DeckLink Duo 2 is a PCIe capture and playback card that supports SDI formats in SD and HD up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!
Codecs
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Video Standards
SD Format Support: 525i29.97 NTSC, 625i25 PAL
HD Format Support: 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 ; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 ; 1080i50, 1080i59.94, 1080i60
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M A/B
SDI Metadata Support : VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188 and closed captioning.
Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
Video Sampling: 4:2:2, 4:4:4
Color Precision: 8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4
Color Space: REC 601, REC 709
Processing
Colorspace Conversion : Hardware based real time
HD Down Conversion: Built in, high quality software down converter from HD to SD on output. Down converted SD selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
HD Up Conversion: Built in, high quality software up converter from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom
Cross Conversion: Built-in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback
Real Time Effects: Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
