The demand for high-quality sound is growing as high-resolution content becomes prevalent in the video production industry. Modern content creators face the challenge of recording high-quality audio quickly, reliably, and with limited resources.

Offering superior sound quality with digital processing, reliable RF transmission, diverse dual-tuner reception, and useful features, the UWP-D series is an ideal partner for ENG (Electronic News Gathering) and EFP (Electronic Field Production), as well as documentaries and weddings.

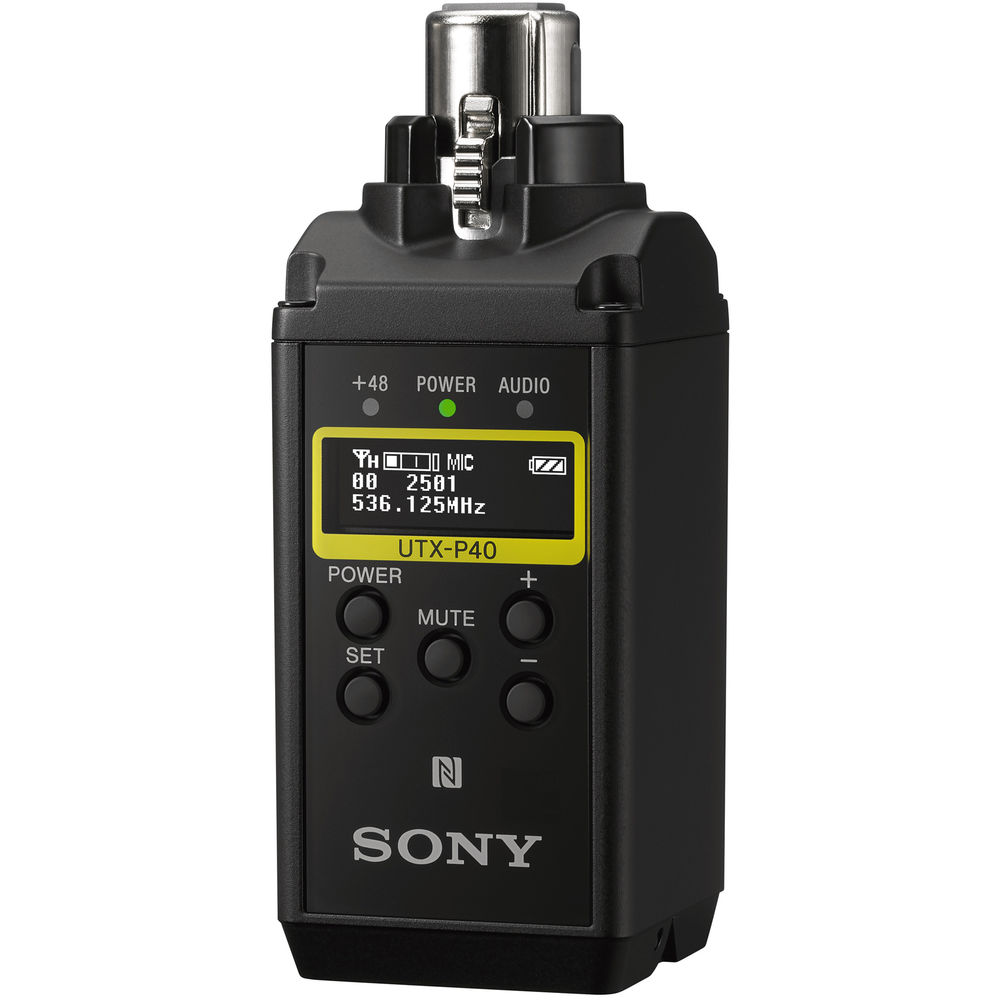

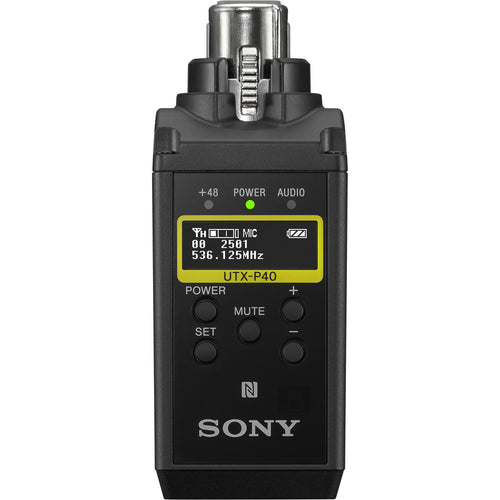

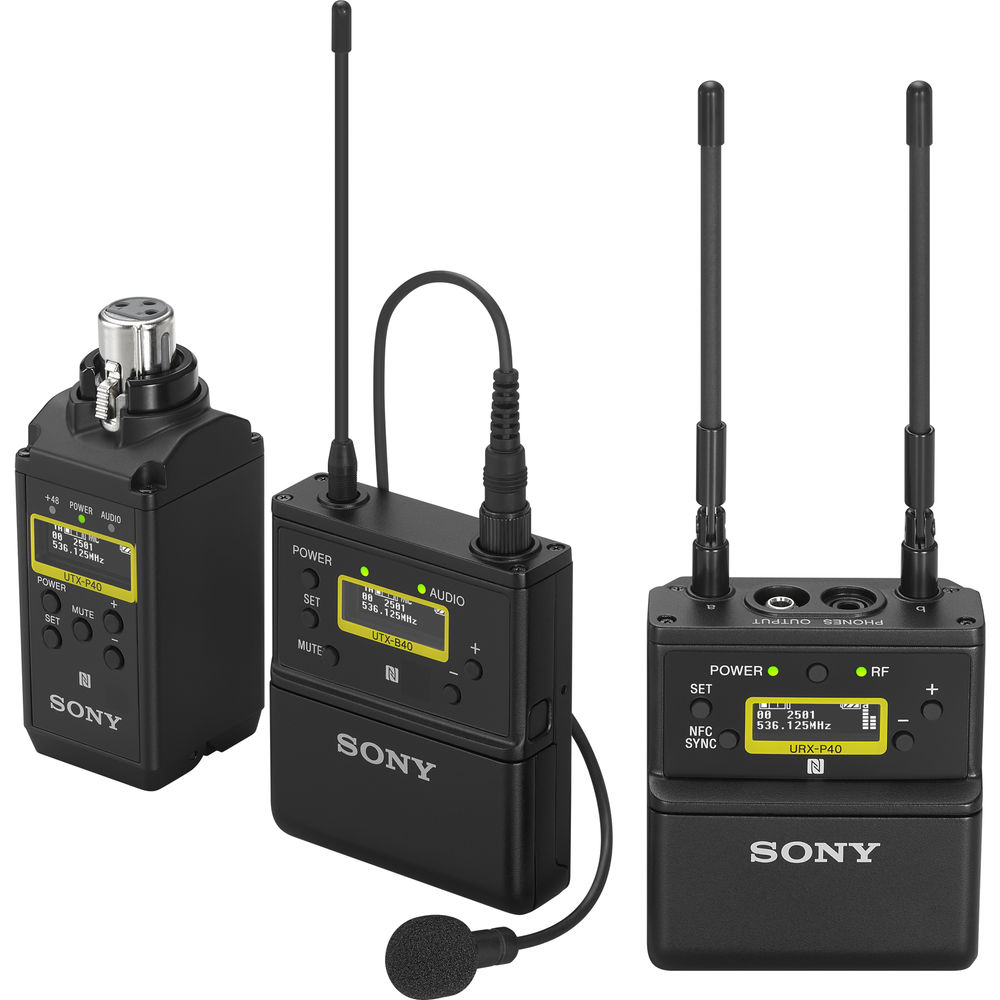

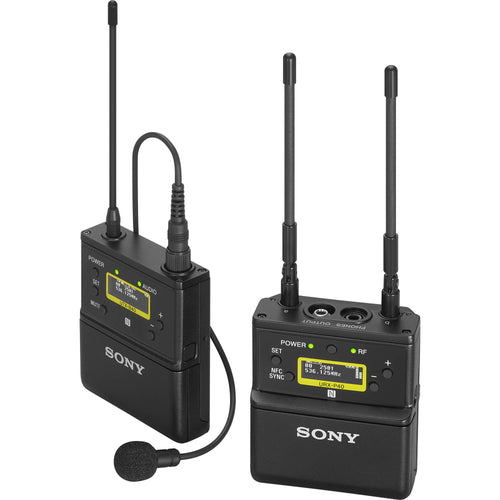

The UWP-D21 wireless microphone kit includes a UTX-P40 Plug-on wireless transmitter, a UTX-B40 bodypack wireless transmitter, a URX-P40 receiver, an ECM-V1BMP omnidirectional microphone, and accessories.

High-quality sound with Sony's digital audio processing

NFC SYNC function for quick and easy setup of a secure channel (IR sync capability with UTX-B40 transmitter from URX-P03, URX-P03D, and URX-S03D receivers).
True diversity dual tuners for stable signal reception
Automatic gain mode volume adjustment
+15 dB gain mode for microphone output
Line input
Channel memory for quick switching between receiving frequencies for two transmitter operations
Transmitter frequency, simultaneous sending to multiple receivers with a single transmitter
Headphone output for monitoring
Variable mute function
Compatibility with Sony WL-800/UWP/UWP-D series
Receiver output level control
High-visibility OLED display, ideal for indoor/outdoor use

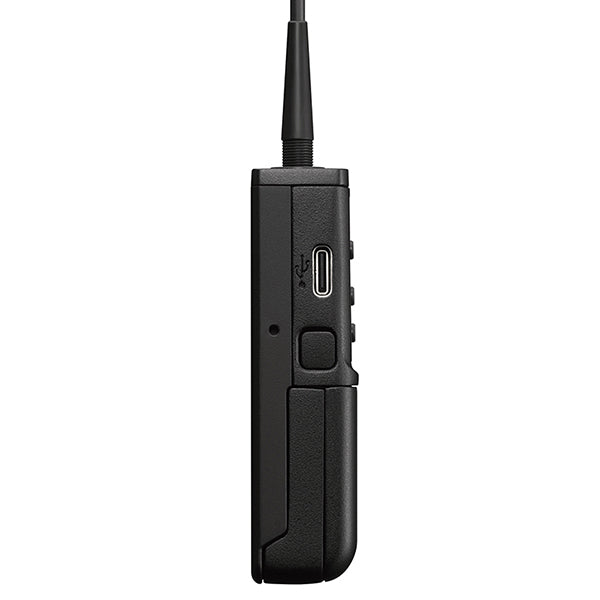

USB connector for power supply
Supports digital audio interface with SMAD-P5 shoe adapter.
Specifications:

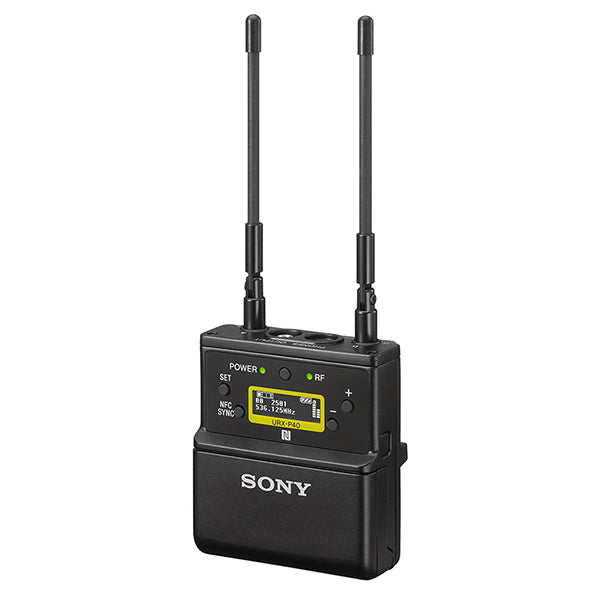

URX-P40 portable receiver:

Oscillator Type - Crystal-controlled PLL synthesizer

Reception Type - Diversity method

Antenna Type - 1/4 λ wavelength wire antenna (angle adjustable)

Carrier Frequencies
21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)


Frequency Response
23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (typical) (J model)

Signal-to-Noise Ratio
60 dB (1 kHz sine wave, 5 kHz modulation)

Distortion (T.H.D)
0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio Delay
Approx. 0.35 ms (analog output)
Approx. 0.24 ms (digital output)

Audio Output Connector
3.5 mm diameter 3-pole locking mini jack, external connection

Audio Output Level
–60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
–20 dBFS (external connection, digital output, 0 dB audio output level)
–50 dBFS (external connection, analog output, 0 dB audio output level)

Analog Audio Output Adjustment Range
-12dB - +12dB (3dB step)

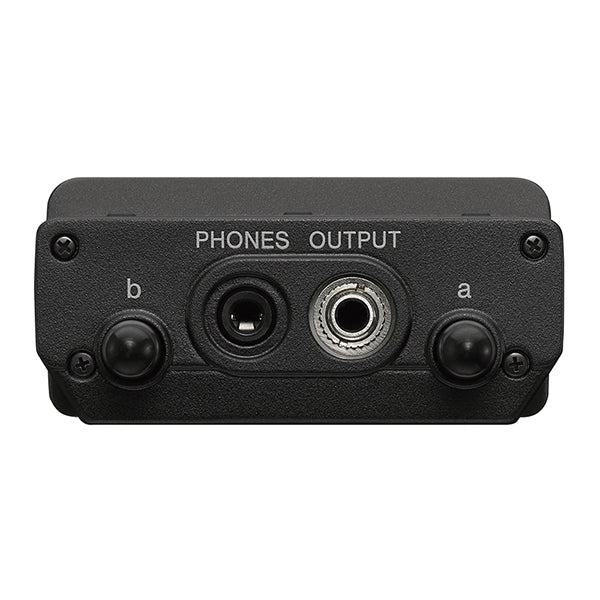

Headphone Output Connector
3.5 mm diameter mini jack

Headphone Output Level
Max. 10mW (16-ohm)

Tone Signal Frequencies
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display
OLED

Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery Life*
Approx. six hours
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.

Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature
–20 °C to +55 °C (–4 °F to +131 °F)

Dimensions
63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)

Weight
Approx. 131 g (4.6 oz) (excluding batteries)

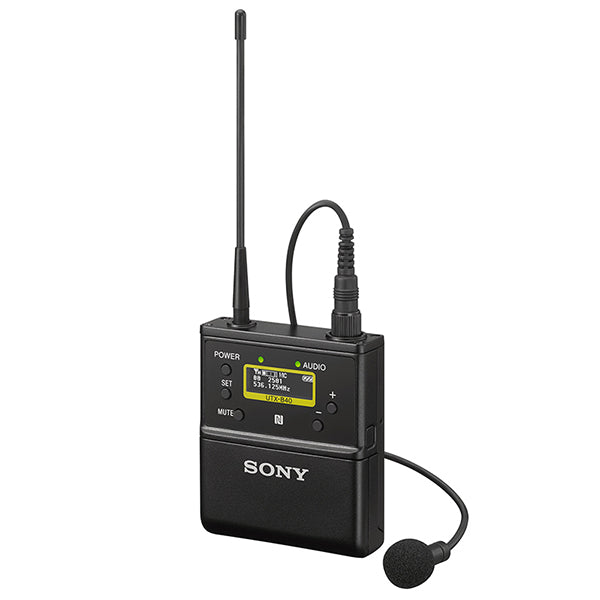

UTX-B40 bodypack transmitter:

Oscillator Type
Crystal-controlled PLL synthesizer

Antenna
1/4 λ wave length wire antenna

RF Output Power
30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)

Capsule Type
Electret condenser

Directivity
Omni-directional

Input Connector
3.5 mm diameter 3-pole locking mini jack

Audio Input Reference Level
–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
+4 dBu (LINE input)

Audio Attenuator Adjustment Range
0 dB to 27 dB (3 dB steps)

Frequency Response
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio
60 dB (–60 dBV, 1 kHz input)
102 dB (GAIN MODE set to AUTO GAIN, max.)
96 dB (GAIN MODE set to NORMAL, max.)

Distortion
0.9% or less (–60 dBV, 1 kHz input)

Audio Delay
Approx. 0.35 ms

Tone Signal Frequencies
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display
OLED

Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery Life
Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models) * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).

Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature
-20 °C to +55 °C (–4 °F to +131 °F)

Dimensions:
63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)

Weight:
Approx. 83 g (2.9 oz) (excluding batteries)
