Key features
86.4Wh all-in-one portable battery system

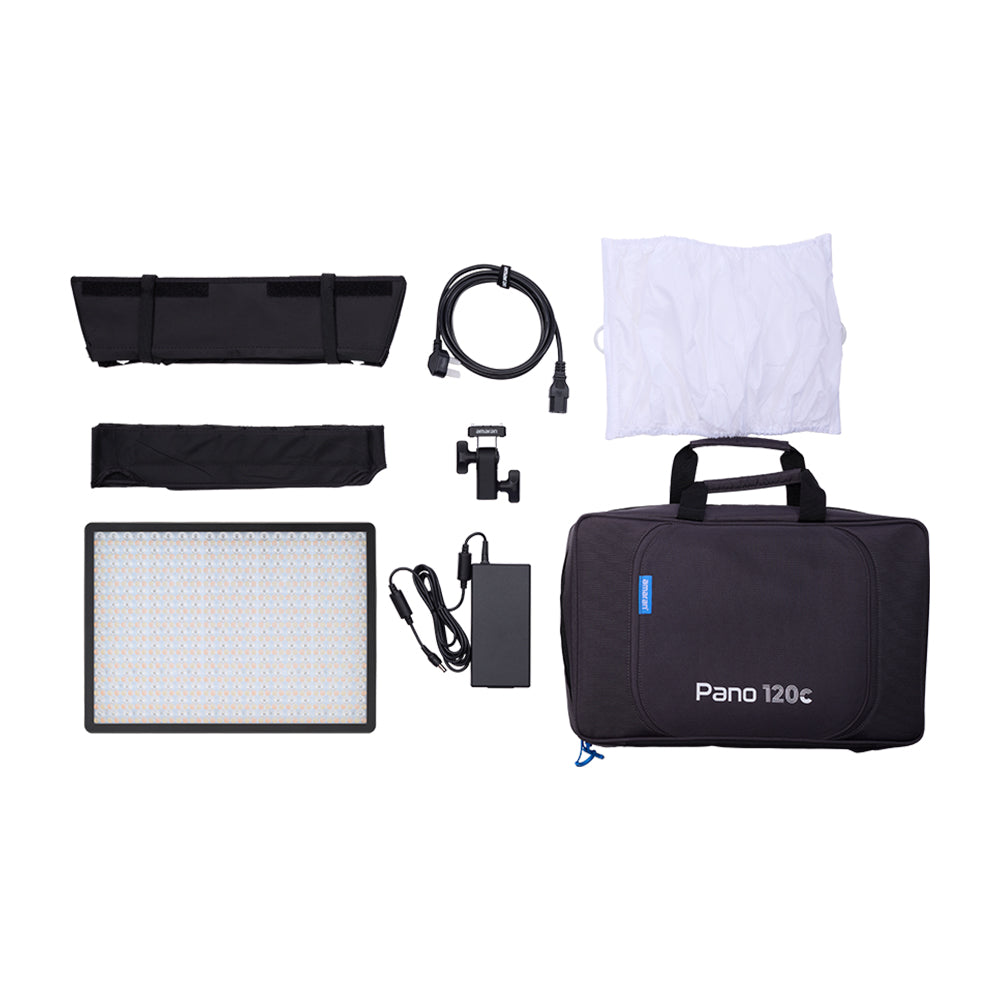

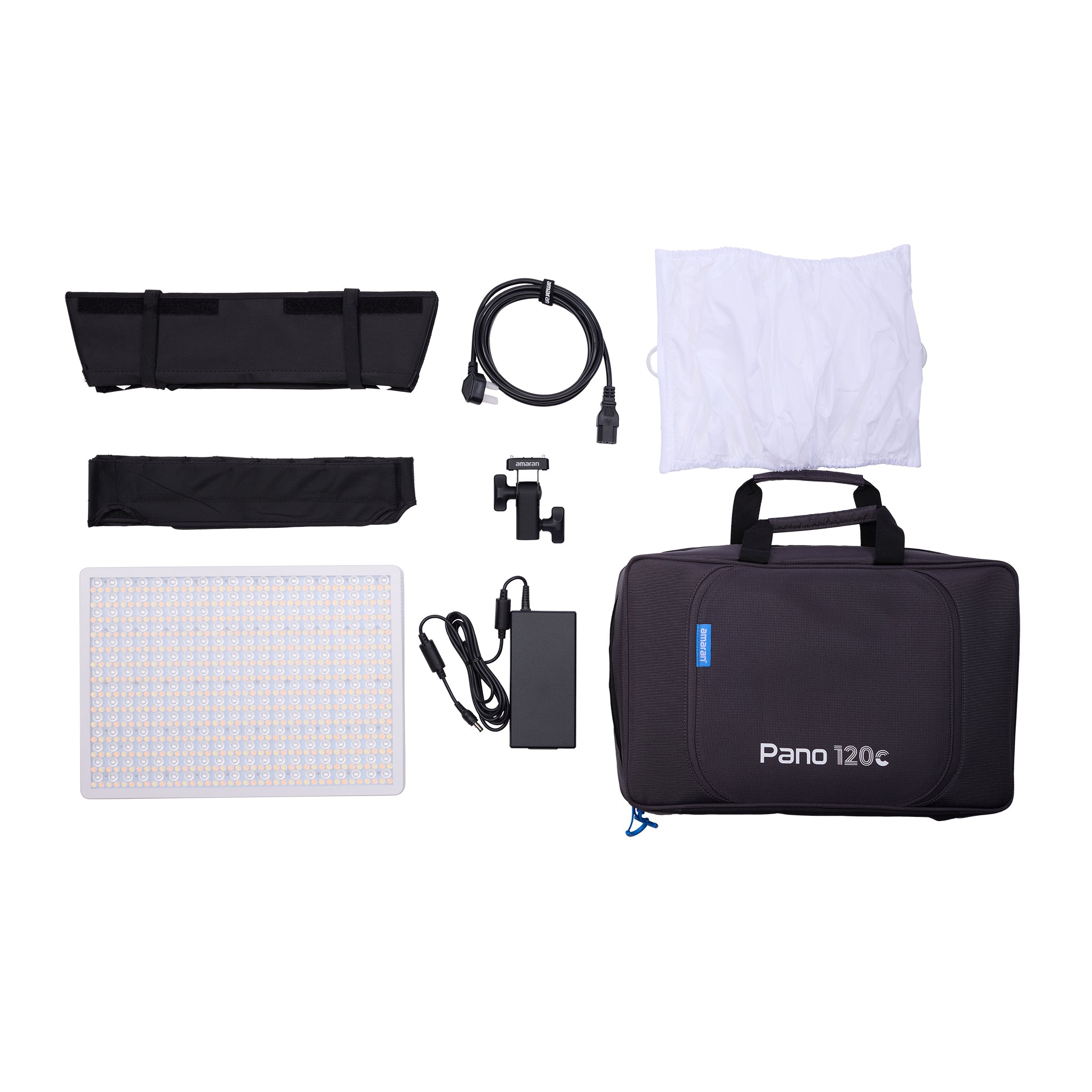

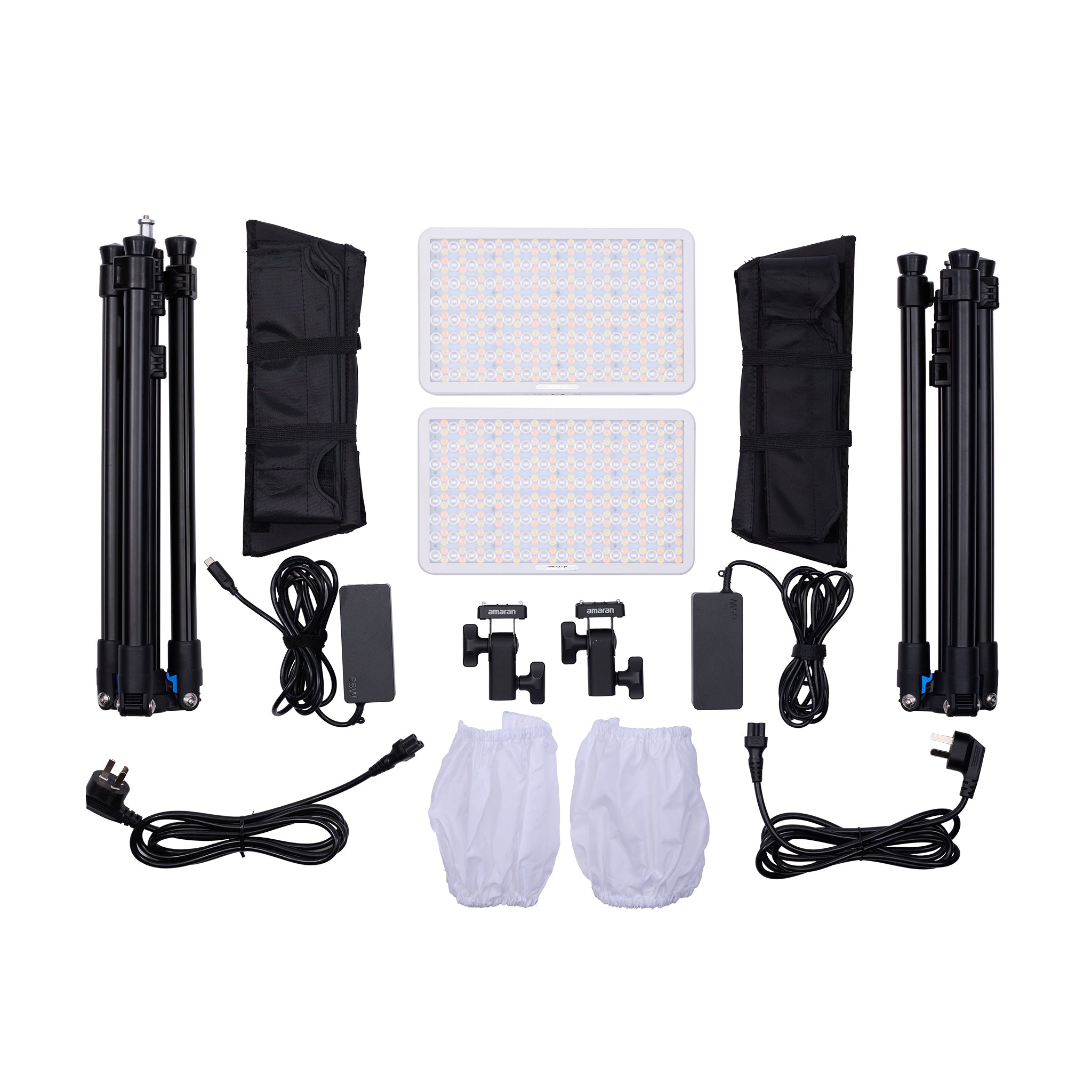

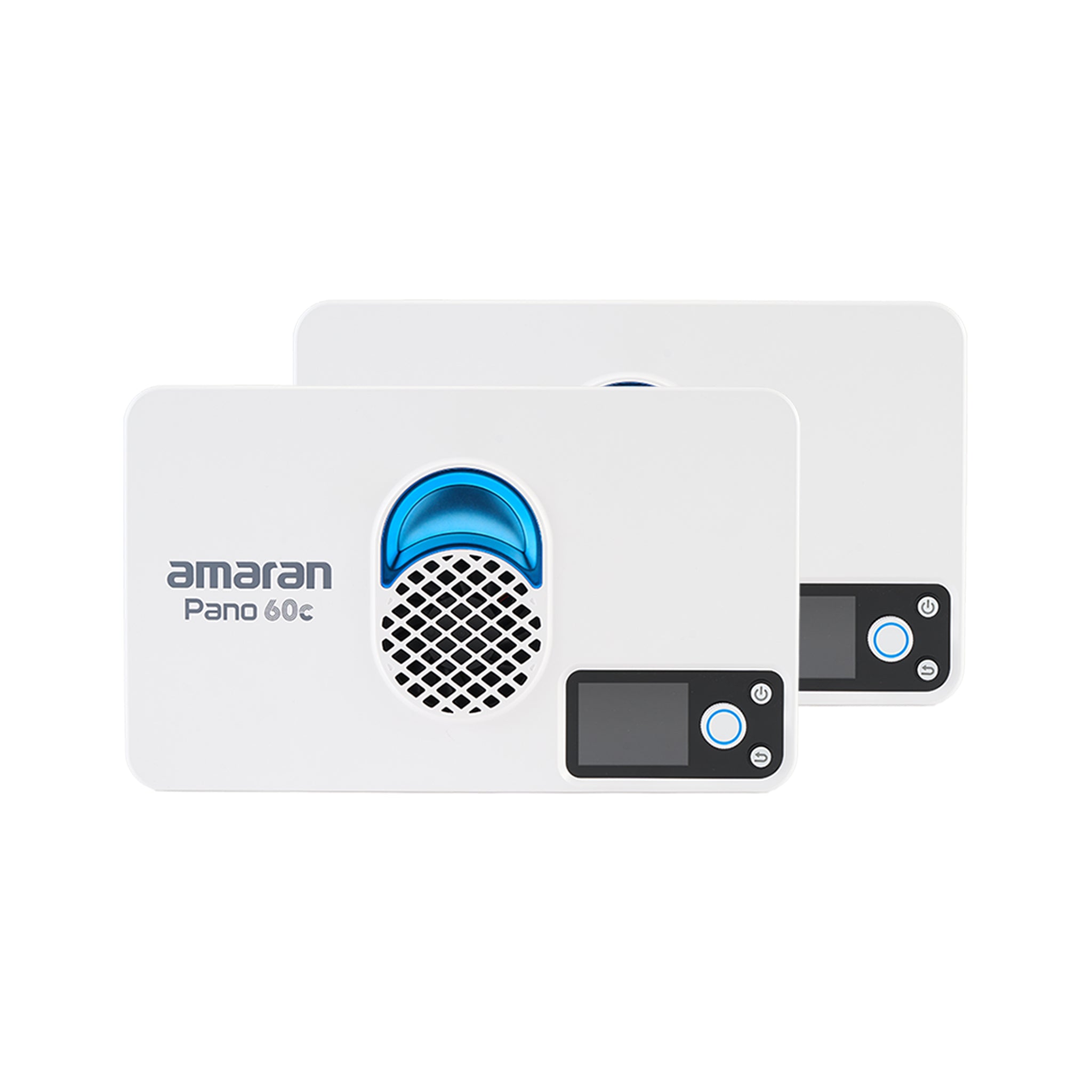

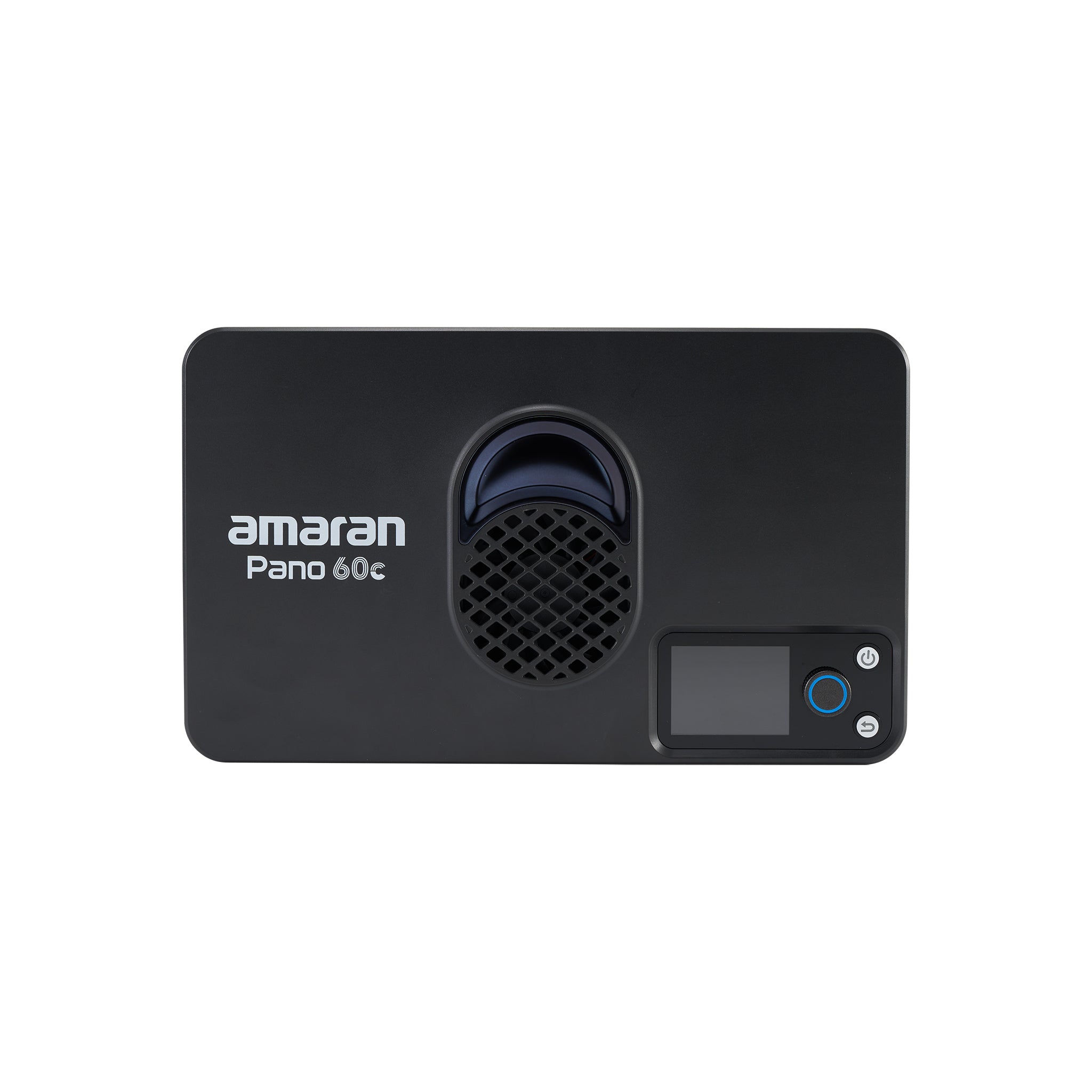

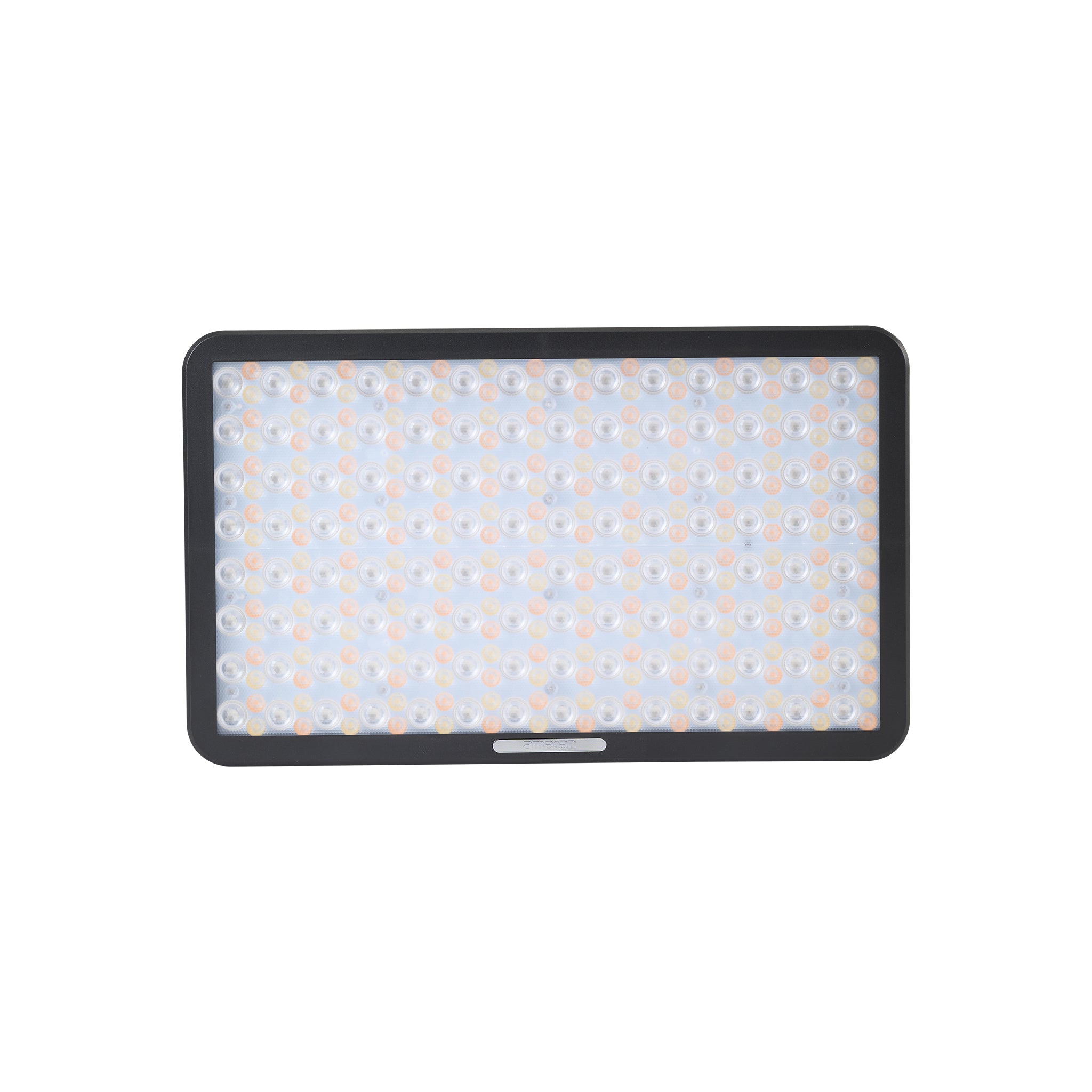

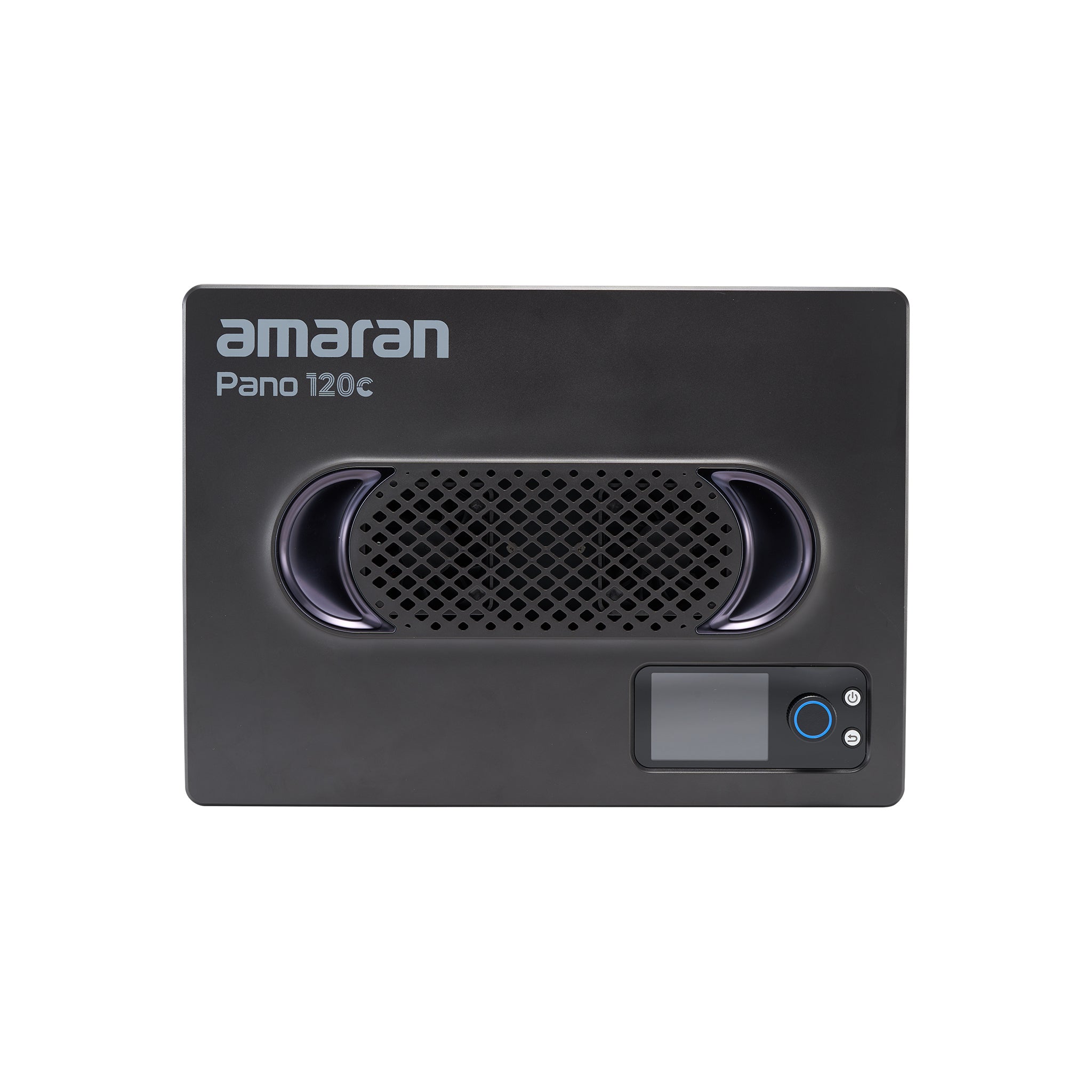

Cable-free power with amaran Ace E-Lock Expansion Module: Seamlessly powers compatible lights like amaran Pano 60c & 120c without cables
Up to 170W combined constant output: Powers lights, cameras, laptops via 2x USB-C, 1x USB-A ports
Flexible mounting options: Compatible with 3/8-16in & 1/4-20in light stands, tripods, accessories
140W USB-C PD fast charging: Recharge to 50% within 30 minutes or 100% in 1 hour with PD3.1 charger
Overview
Power Your Creativity, Anywhere

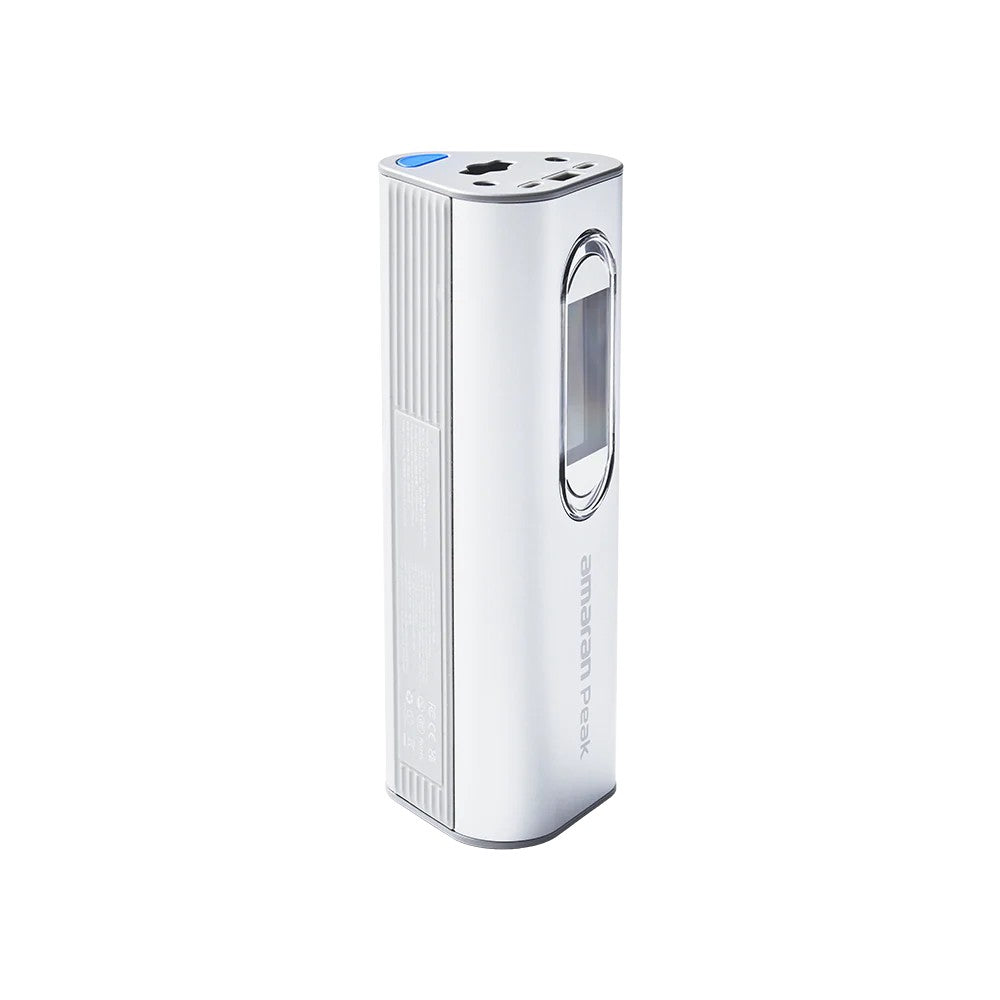

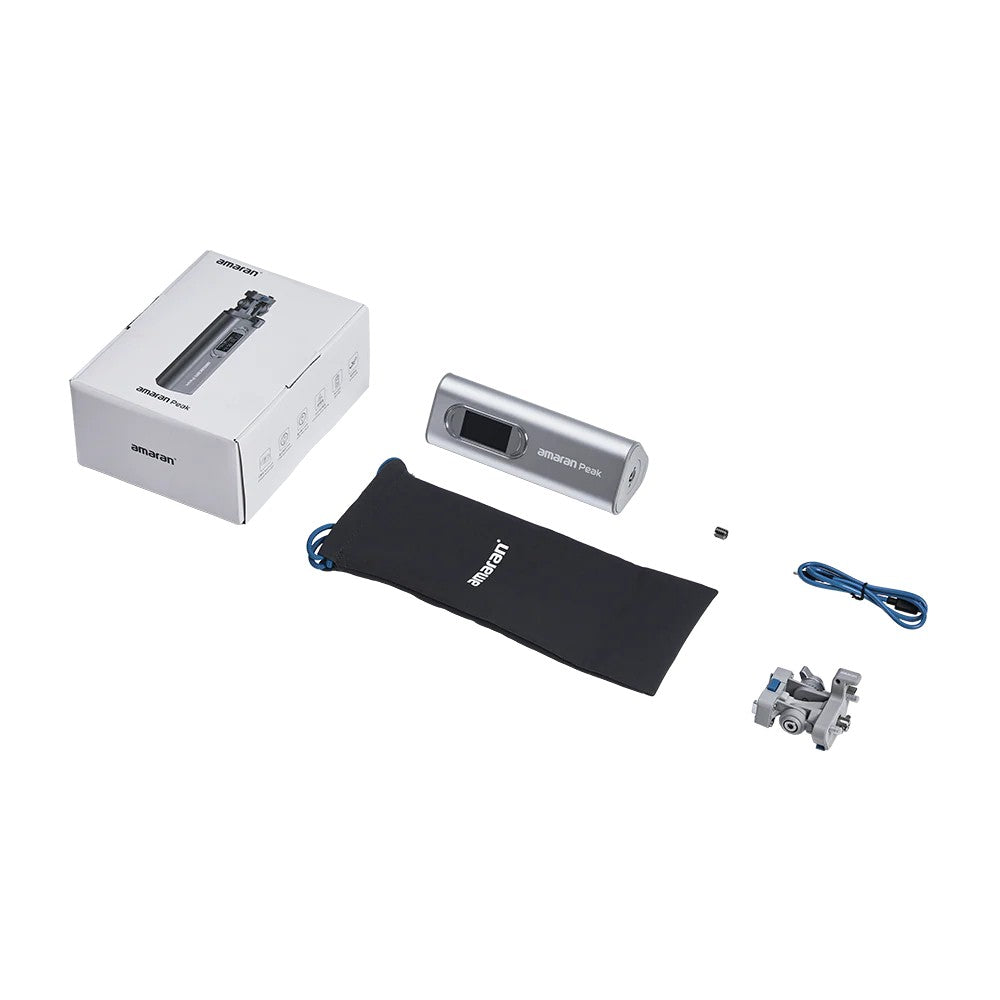

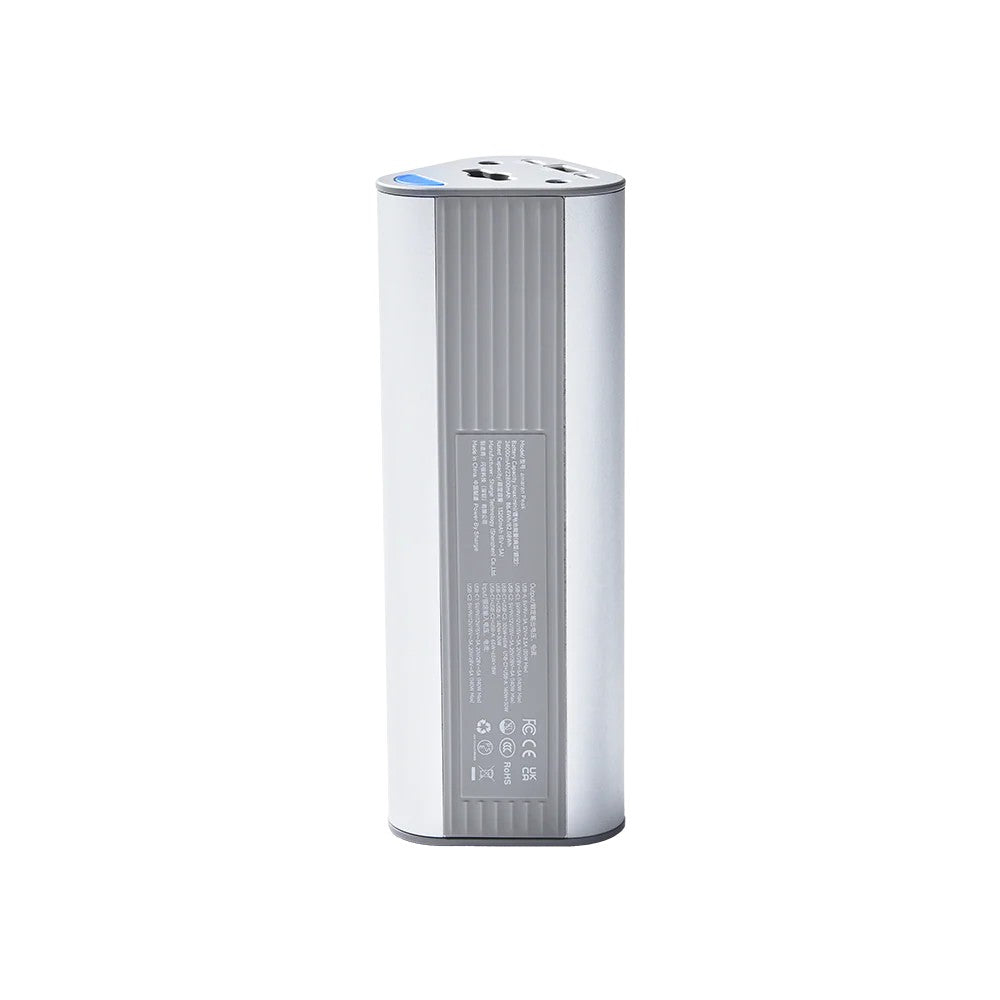

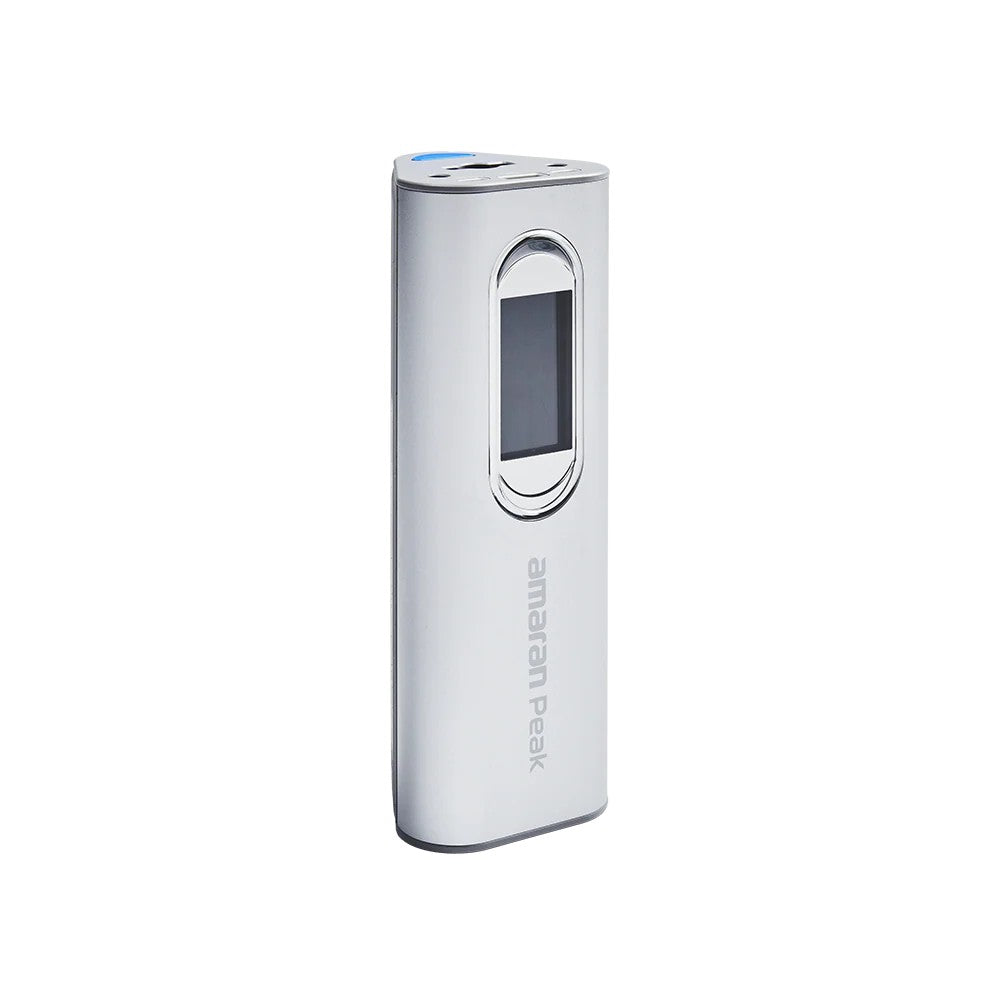

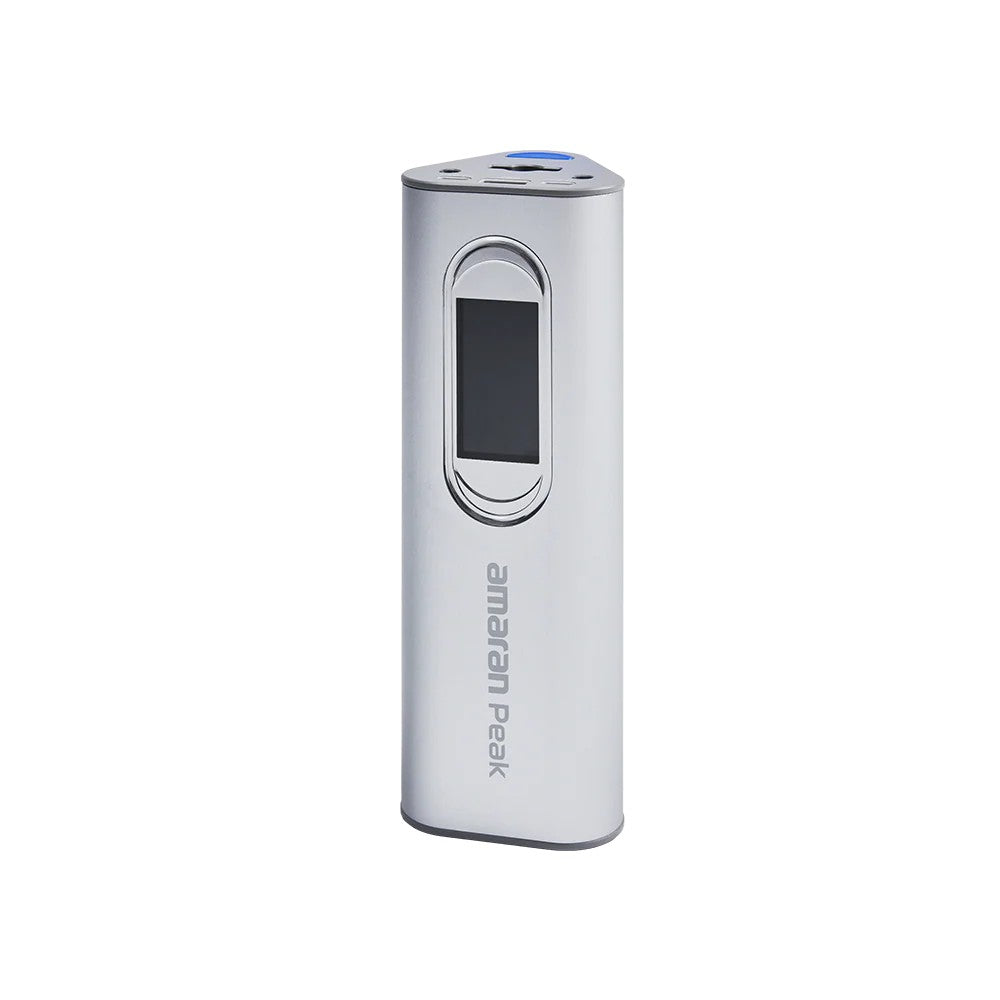

The amaran Peak is a 86.4Wh battery system for on-the-go creators — delivering up to 170W of output to power your entire setup. With cable-free operation via the Ace E-Lock, 140W USB-C PD fast charging, and versatile mounting options, it’s built to keep you powered – anywhere, anytime.
Cable-free power with ACE E-Lock

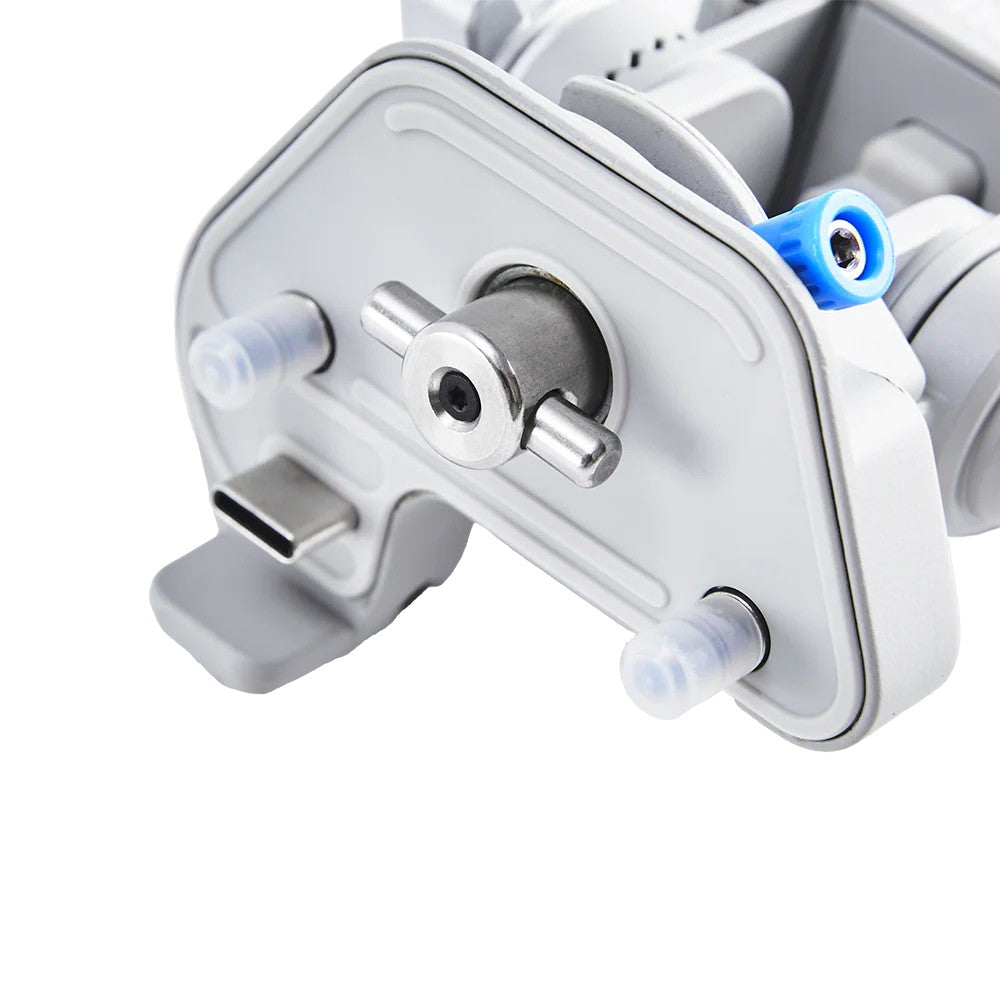

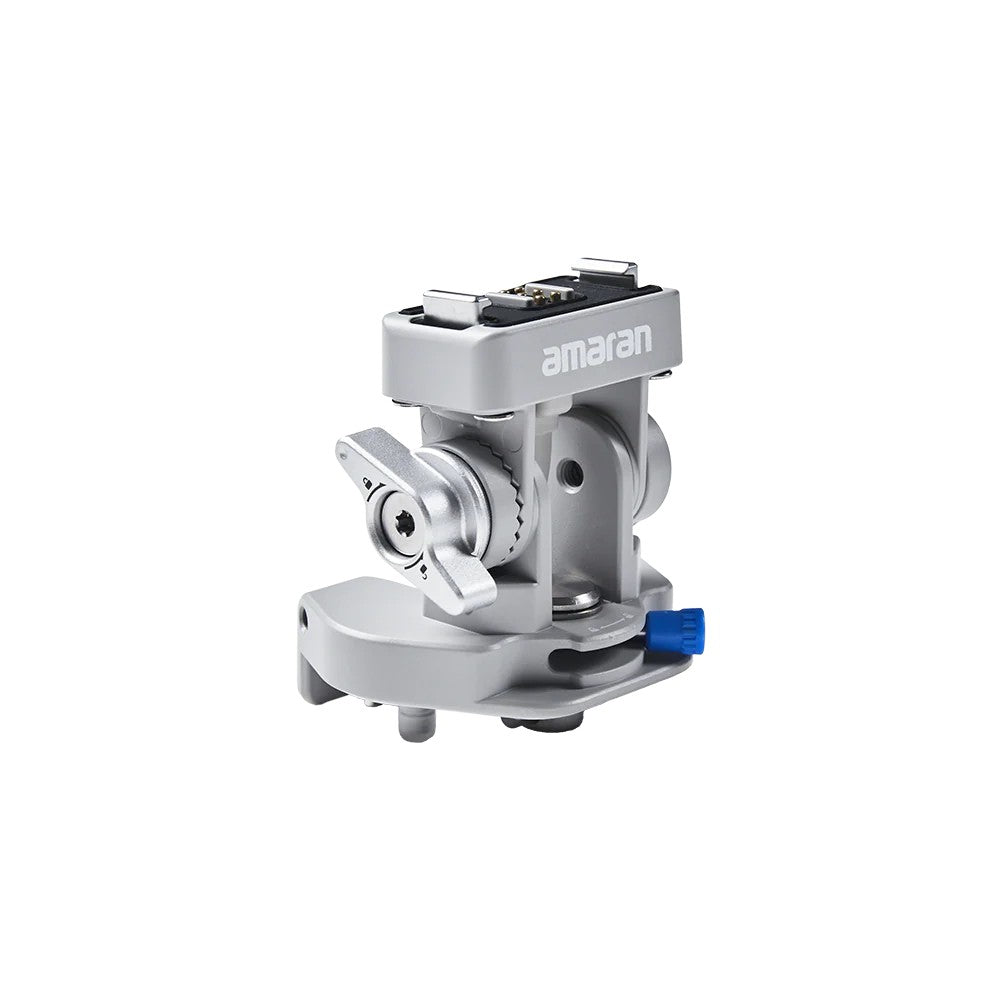

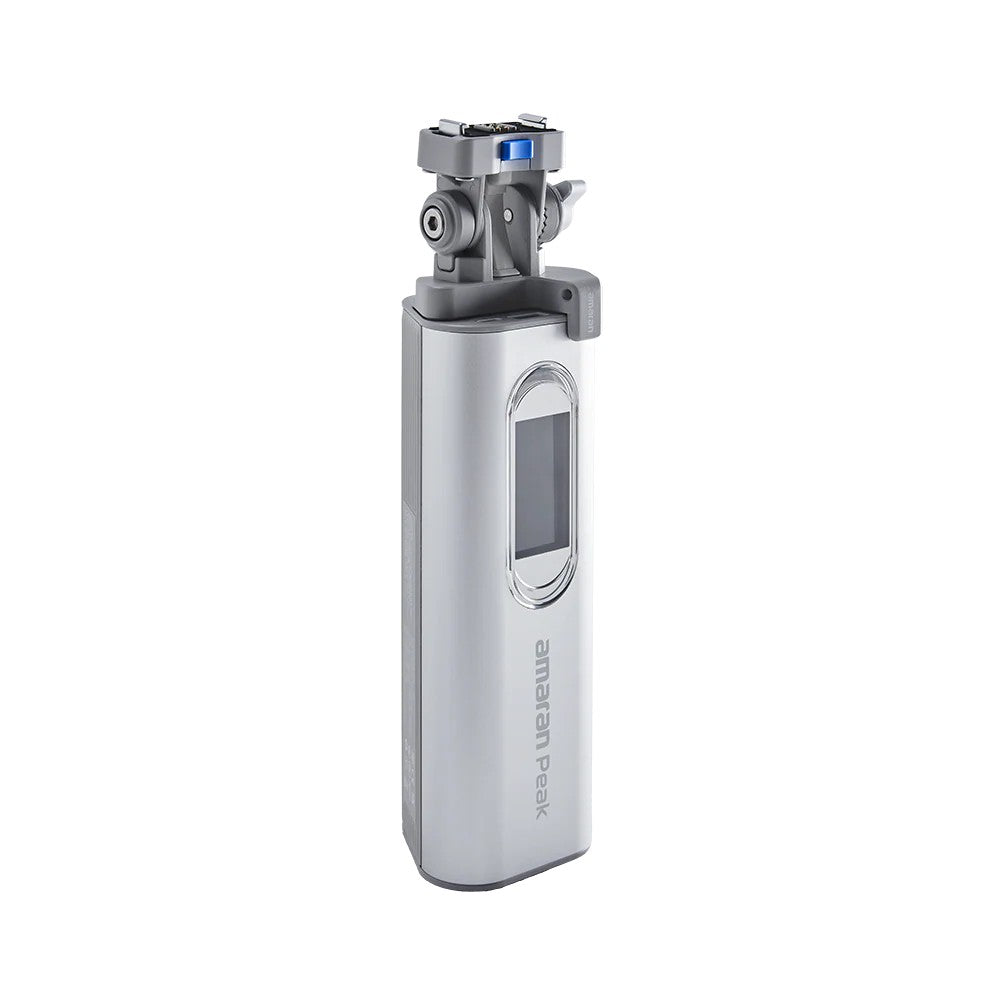

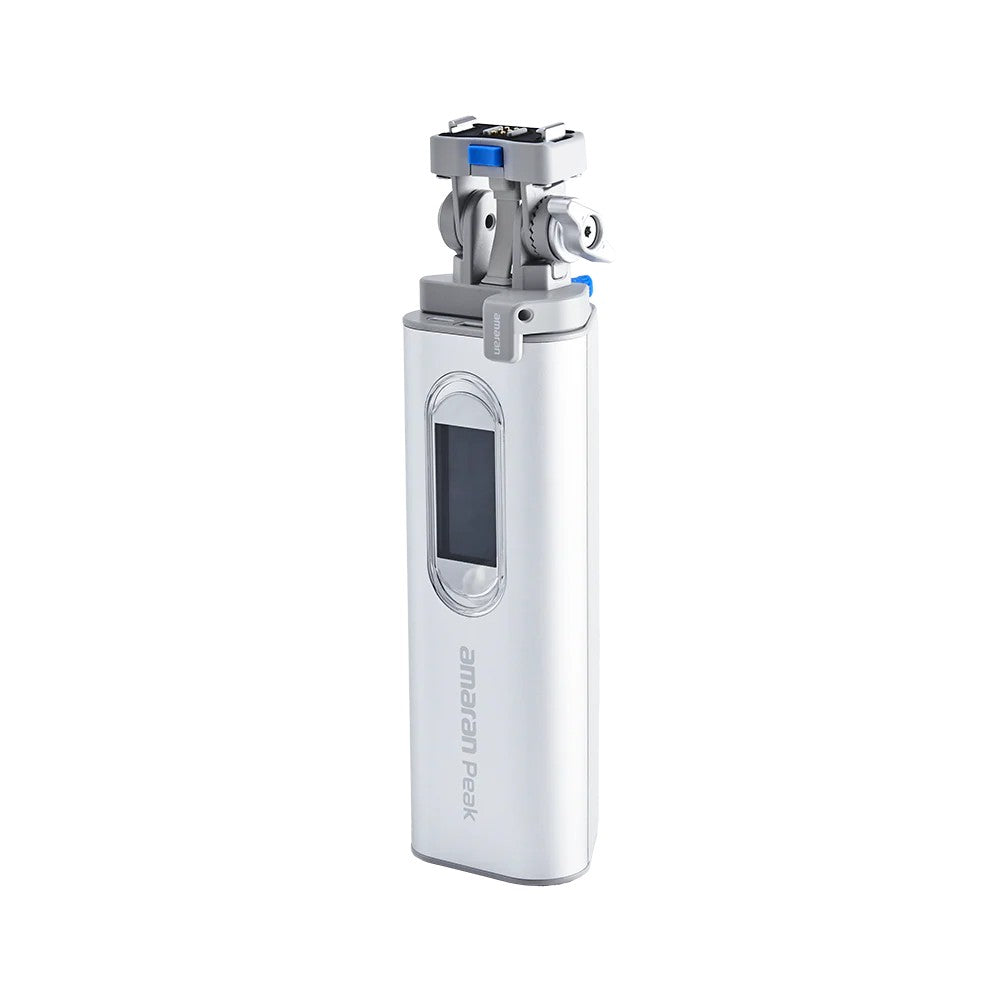

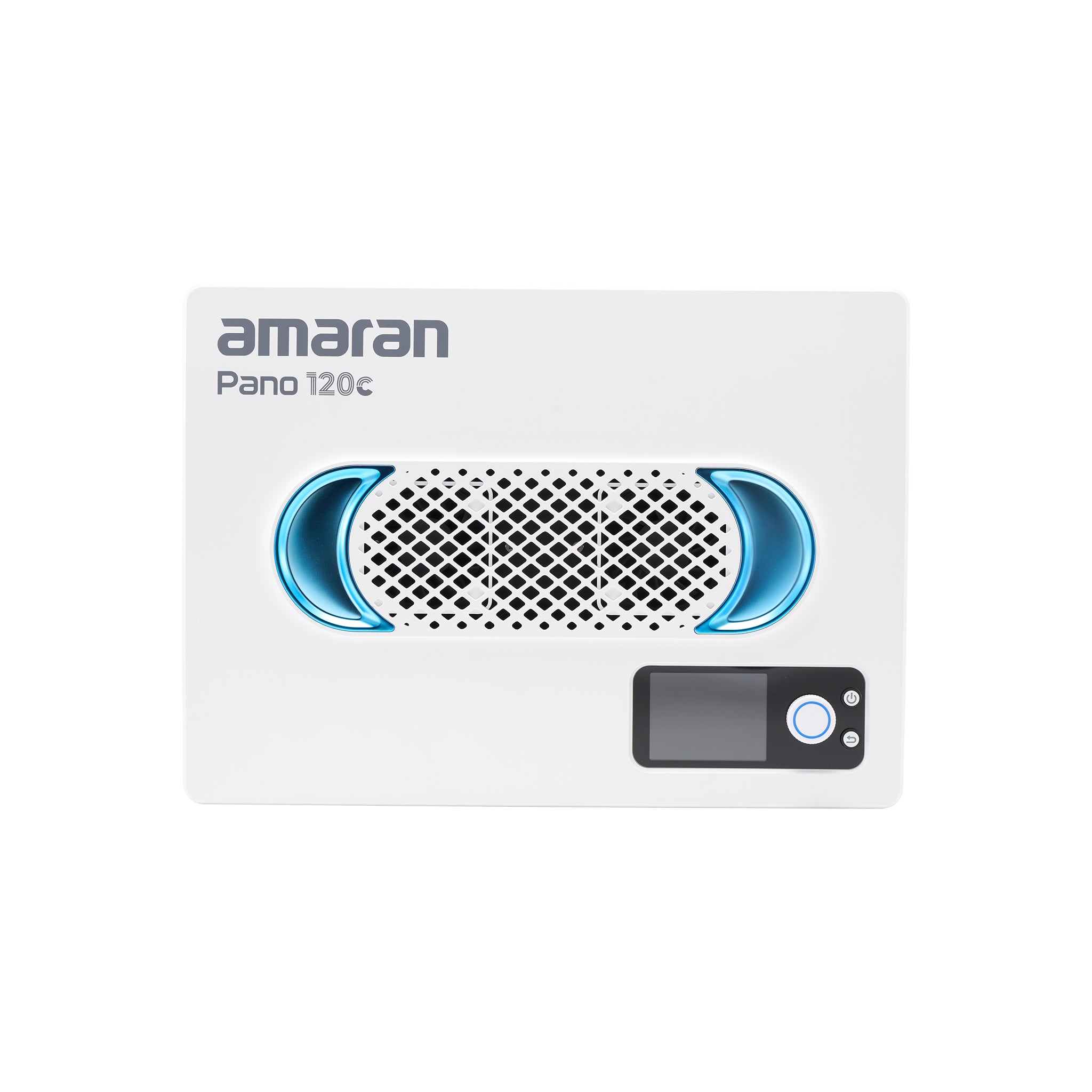

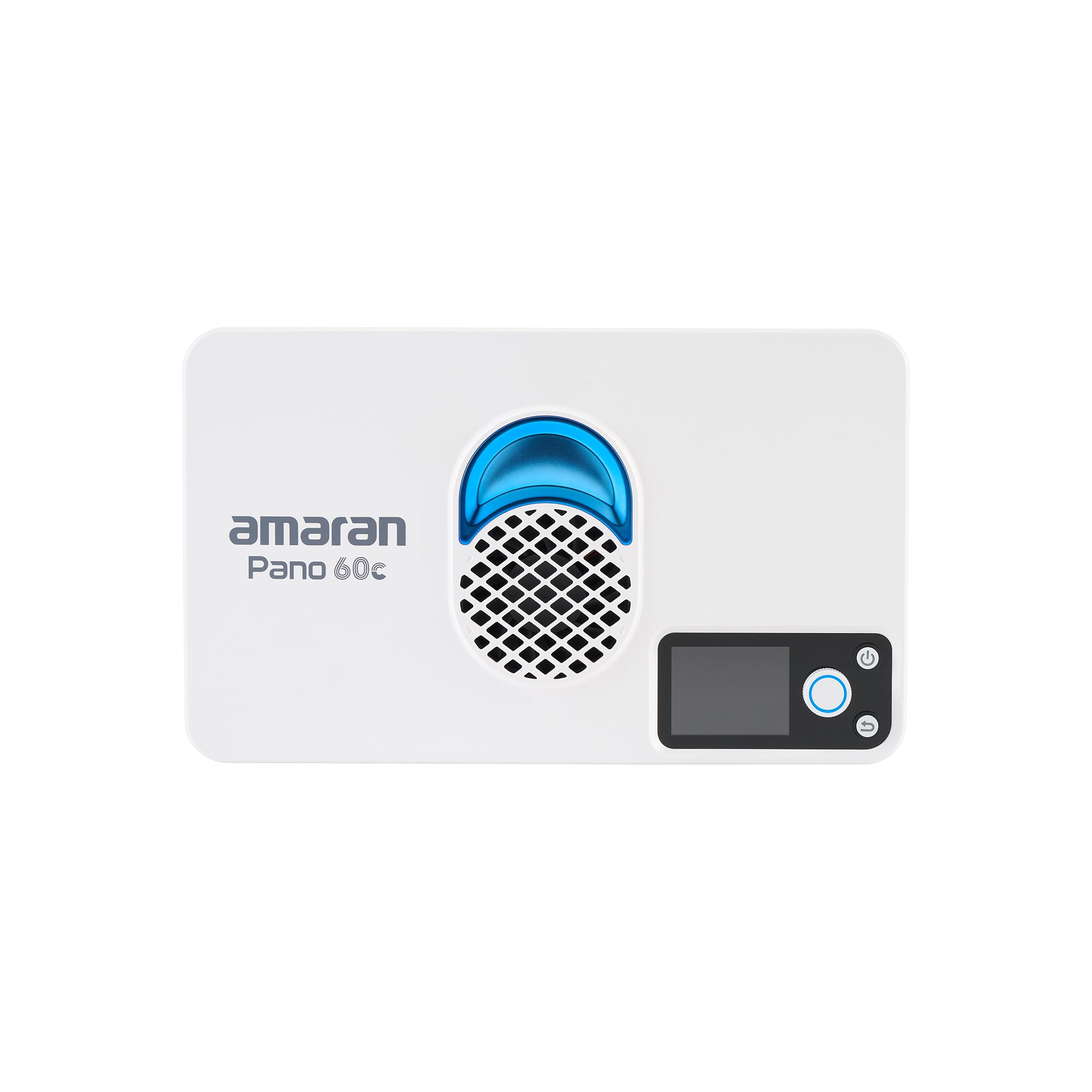

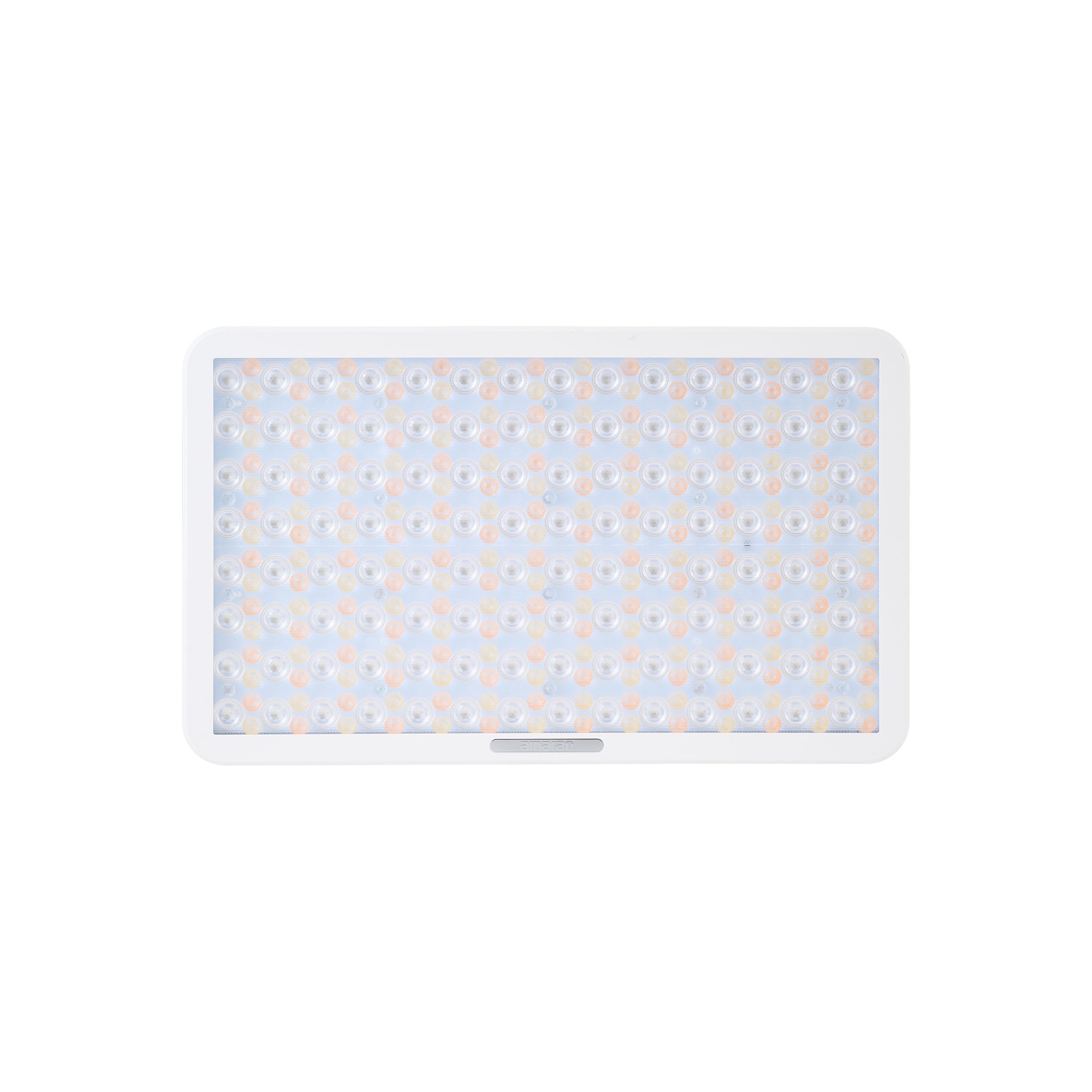

Power your lights without cables. The amaran Peak delivers direct power to amaran Ace E-Lock compatible lights – like the amaran Pano 60c & 120c – with the included E-Lock Expansion Module. Perfect for handheld or mounted setups, or clamped to your gear.
One system for all your gear
Ditch bulky NP-F and V-Mount setups. With an 86.4Wh battery capacity that delivers up to 170W of output and 3 USB ports, the amaran Peak powers lights, cameras, and more – all from one compact battery.
More ways to power and mount your lights

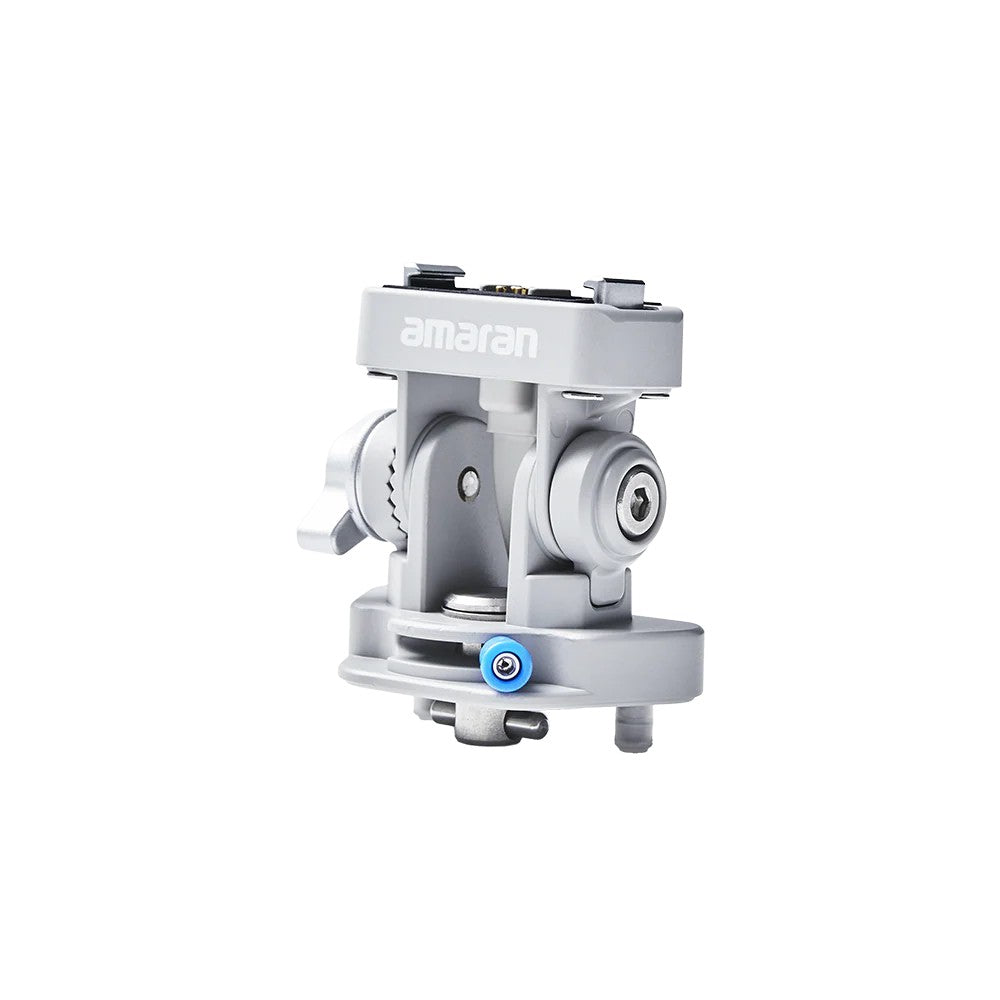

Go beyond the Ace E-Lock. With the optional E-Lock Adapter and USB-C to DC Cable, the amaran Peak powers lights like the amaran COB 60d/x S and lets you mount them directly – handheld or on a stand.
Mount anywhere. Create erehiwhere.

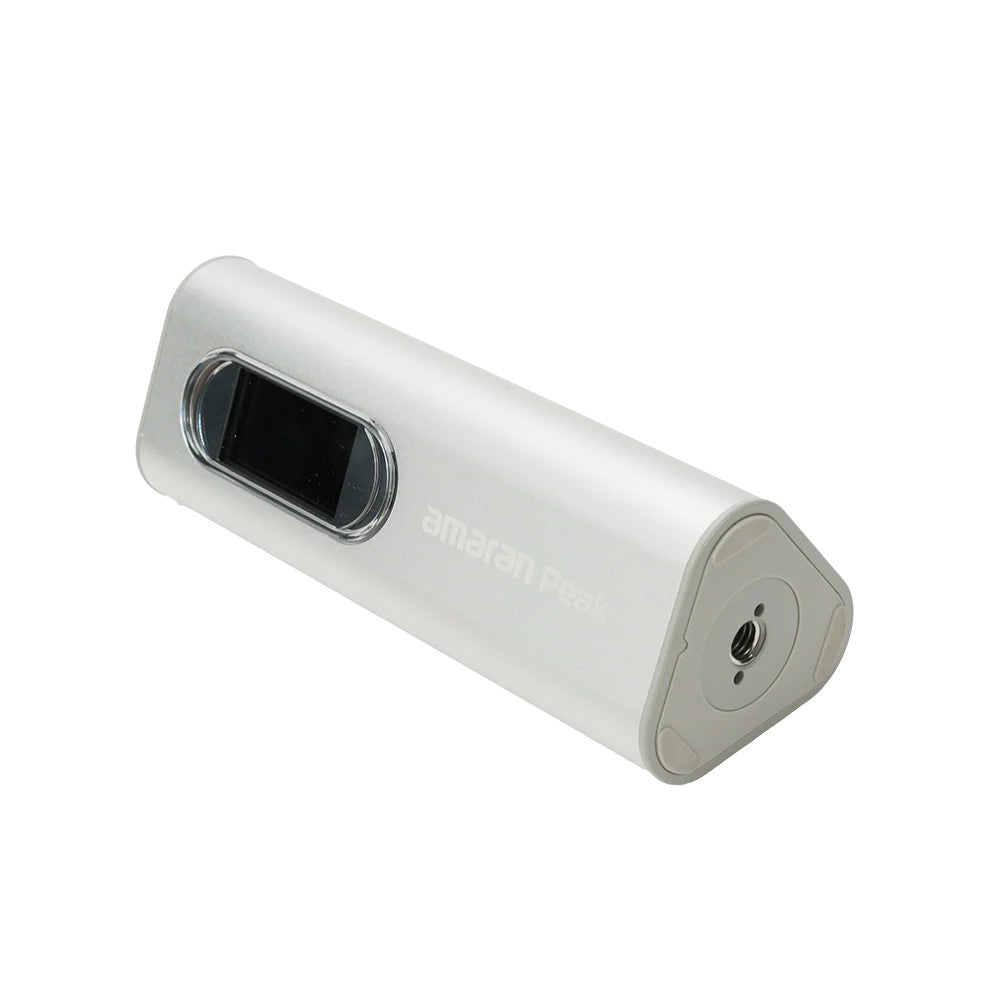

With built-in 3/8-16in and 1/4-20in mounting points and an optional Light Stand Clamp, the amaran Peak mounts directly onto light stands, tripods, or just about anywhere you shoot.
Real-time smart display
Stay informed with a full-color smart display showing battery status, power flow, and alerts – so you can charge or create with confidence, wherever you are.
Fast-charging
Get back to full power in 1 hour with USB-C PD fast charging up to 140W.
Airline safe. Travel ready.
Take powerful, pro-grade battery performance on any flight – no paperwork required.
IP54 Rated wether resistance
IP54-rated for dust and splash resistance – ready for any shoot, rain or shine.
Specifications
Battery Capacity (Max): 86.4Wh / 24000mAh
Battery Capacity (Min): 82.08Wh / 22800mAh

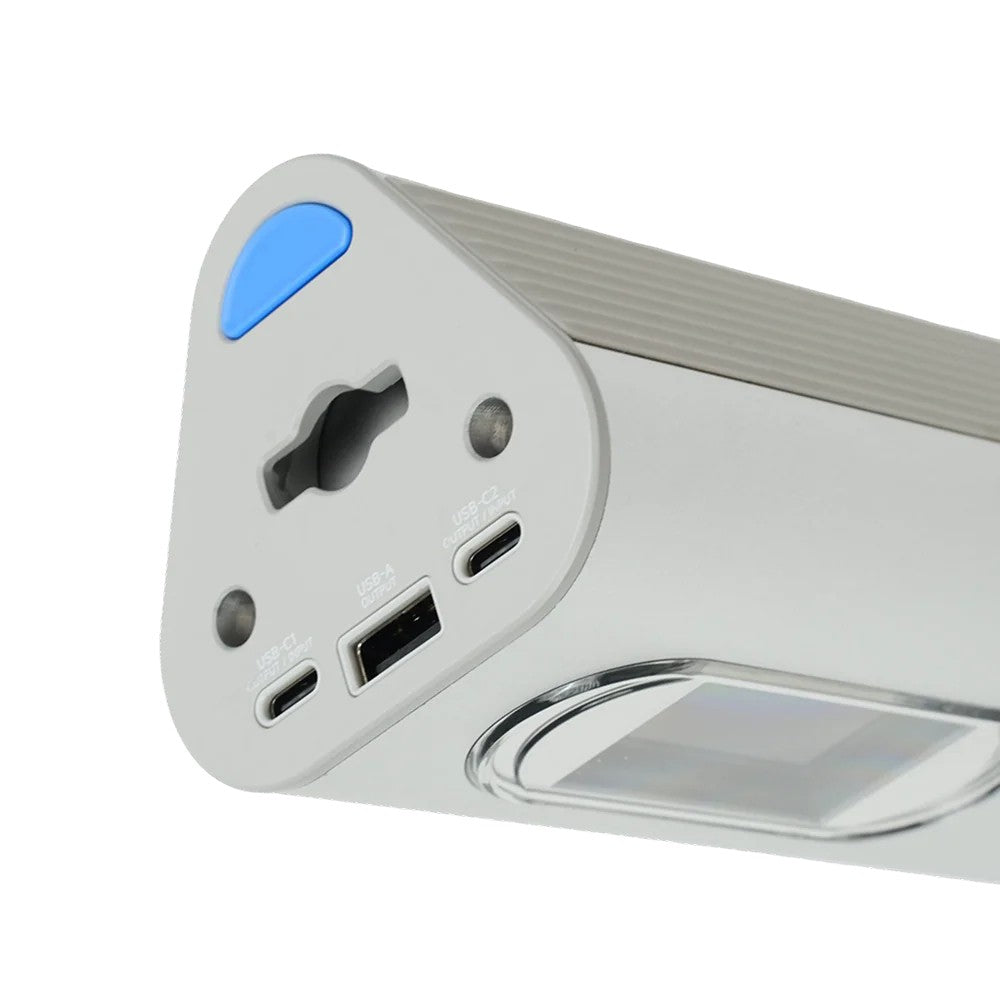

Ports: 2x USB-C, 1x USB-A, 1x amaran Ace E-Lock
USB-C Max Power Input: 140W
Max Total Output: 170W
Rated Capacity: 13200mAh (5V⎓3A)
Charge Time (65W): 75 Mins.
Charge Time (140W): 60 Mins.
Supported Protocols: PD, QC
Operating Temperature: -10°C - 40°C
Storage Temperature: -20°C - 80°C
Cooling Method: Passive Cooling
Cycle Life: 800+ Cycles (80% Capacity)
Control Method: Button
Noise Level: 0dBA
Conversion Efficiency: ≥78%
Inputs
USB-C1: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A
USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A
Outputs
USB-C1: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max)
USB-A: 5V⎓3A, 9V⎓3A, 12V⎓5A (30W Max)
USB-C1 + USB-A: 140W + 30W (170W)
USB-C1 + USB-C2 + USB-A: 65W + 65W + 18W
USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max)
USB-C1 + USB-C2: 100W + 65W (165W)
USB-C2 + USB-A: 140W + 30W (170W)
Dimensions
amaran Peak Only: 17.6 x 6.4 x6.1cm
Ace E-Lock Module: 6.92 x 6.10 x 5.02cm
USB-C Cable Length: 50cm
Weight
amaran Peak Only: 791g
Ace E-Lock Module: 243g
