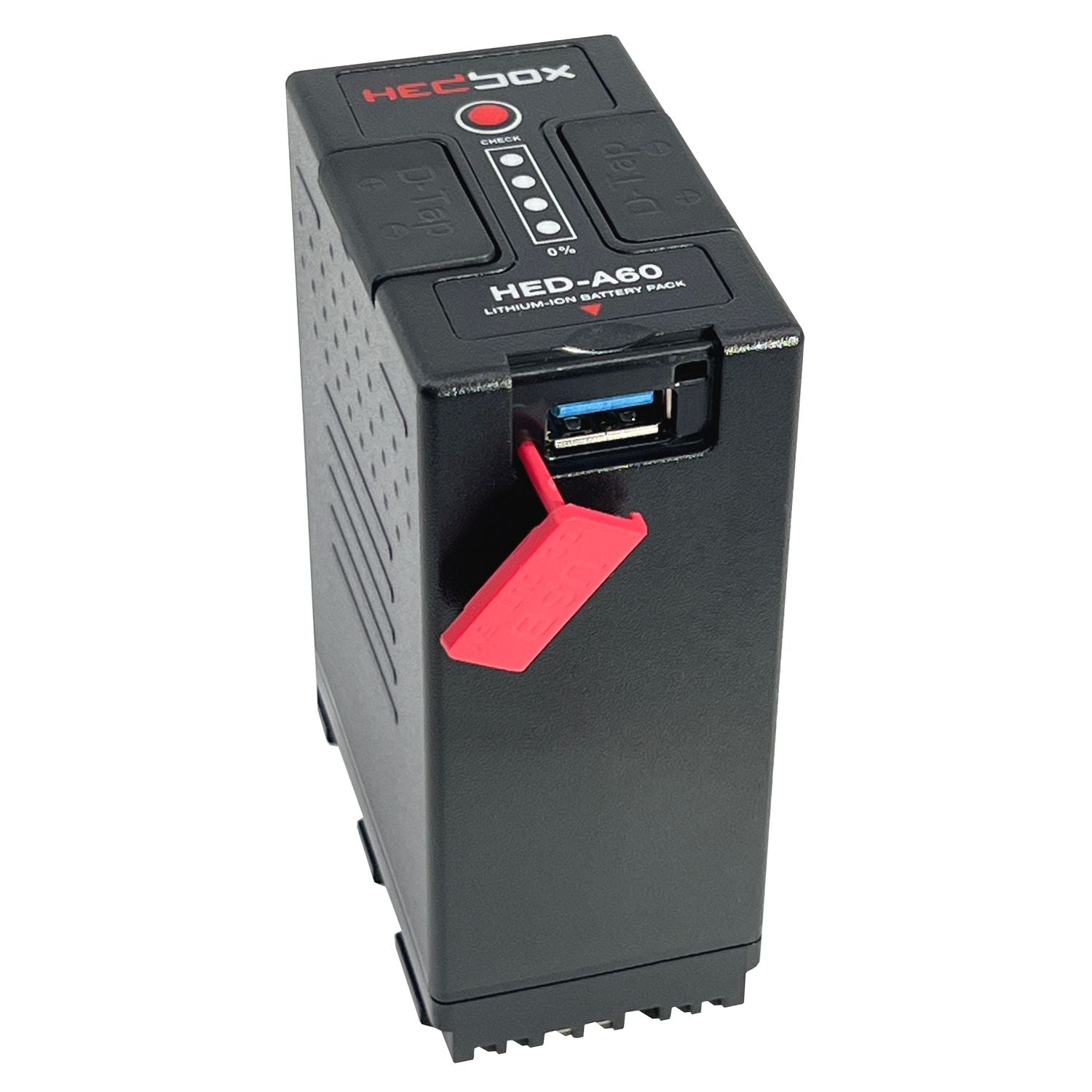

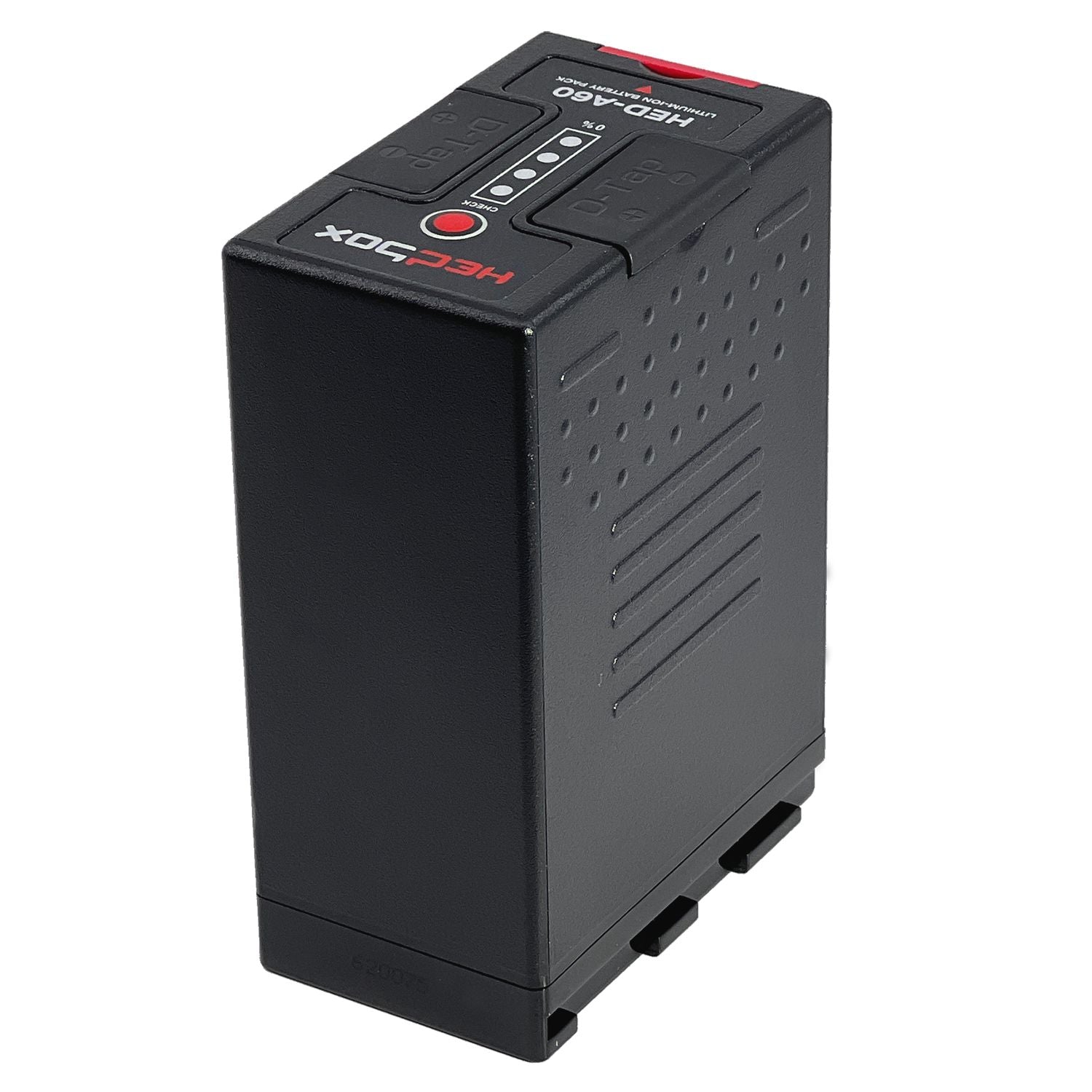

Digital High Capacity Li-Ion Battery with 2x D-Tap and USB Power Out

The HED-A60 is the Lithium-Ion Battery Pack (14.4V, 96.48Wh) designed to power Canon HD camcorders that use a BP-A style battery. It consists of LG high-quality internal battery cells and features an output of 14.4V and a capacity of 6700mAh / 96.48Wh. The battery pack includes one USB and two D-Tap outputs with dust covers that provide power to external devices such as on-cameras LED lights, monitors, wireless transmitters, and digital recorders. A 4-LED power meter displays the remaining battery percentage at 100, 75, 50, and 25%. Using the built-in data communication chip, the battery syncs with the camcorder to display the exact power percentage on the LCD screen.

High Power Capacity 97Wh

This high-capacity lithium-ion battery pack can power Canon HD Camcorders EOS C500, C500 MKII, C300, C300 MKII,  C200, C200 MKII, including the latest models EOS C70 and XF605, XF706. The HED-A60 includes an external USB 5V/5W/1A power output, and a Dual D-Tap DC 14.4V power output, that can deliver 115W/8A for all professional external devices.

Built-in Dual D-Tap 14.4V, 8A, 97W Output Socket

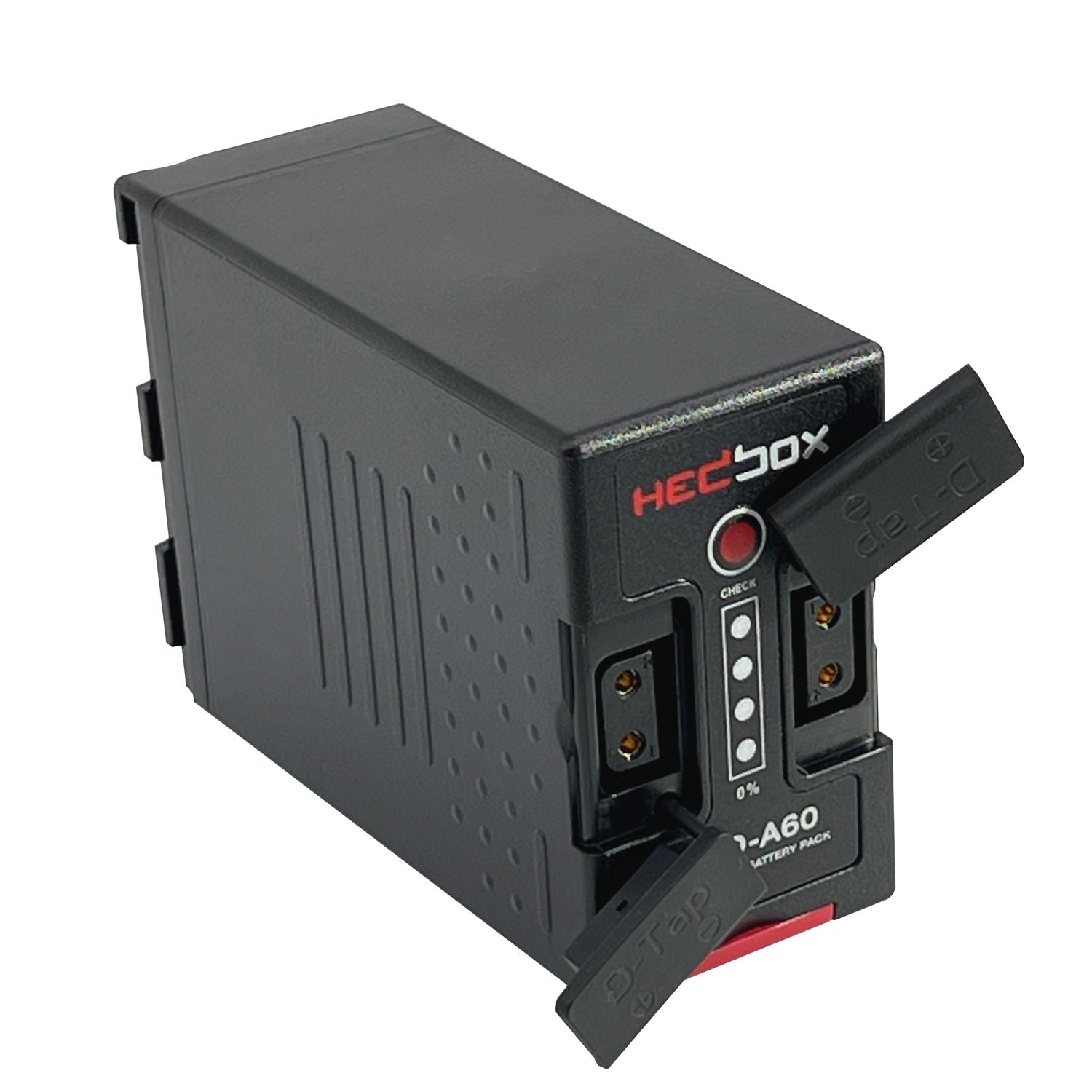

HED-A60 battery pack is equipped with a dual D-tap DC output socket on top. With this external power supply facility, you can connect two different products, like an on-camera LED light and video monitor or a wireless transmitter and digital recorder, and get simultaneous power with the battery attached to the camera, or separately as an independent power station. The opposite orientation of the D-Tap connectors provides more flexibility during everyday operation. The max power from the two D-taps is 95W.

LED Monitor Indicator

HED-A60 contains a built-in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

Built-in USB 5V, 1A Socket

The USB 5V/1A output can be used to power any external USB electronic devices. This function allows you to use the HED-A60 like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.

Data Communication with Camcorder

Using the built-in data communication chip, the battery syncs with the camcorder to display the exact power percentage on the LCD screen. HED-A60 is fully compatible with latest Canon models EOS C70 and XF605, XF705 Camcorders

Model :HED-A60 Info-Lithium Battery Pack with 4-LED Power Monitor
Mount Method :Canon BP-A Style
Product Color :Dark Grey / Black Color
Bat. Cell Model :LG AA High Quality 18650 x 8 / 3350mAh
Bat. Cell Chemistry :Lithium-Ion
Output Voltage :14.4V DC
Capacity :6700 mAh / 96.48Wh
Maximum Load :10A / 145W
USB Output :5V, 5W / 1A max ( Dust Protection Cover BLACK Color)
D-Tap Output 1 :14.4V, 115W / 8A max ( Dust Protection Cover RED Color)
D-Tap Output 2 :14.4V, 115W / 8A max ( Dust Protection Cover RED Color)
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Power Meter :4-level BLUE Color LED Power indicator
Data Comm. :Built-in Microprocessor for Data Communication with Canon EOS C300 Mark II, C200, C200 MKII, C500 MKII, C70, XF605, XF705 Camera
Dimensions (WxHxD) :90 × 70 x 40 mm
Weight :445 g
Charging Mode :For best charging performances and maximum charging capacity use HEDBOX RP-DC50 Digital Charger with RP-BPA60 Battery Plate
