USB Smart HD Video Camera
Designed to level up your work life
Do you want clear and smooth video conferencing? Can you control the image freely during the live streaming? Or record your course and spread it to more people?
Here is a suggestion for you--FEELWORLD USB10X, a ideal choice for conference rooms, classrooms, auditoriums and medical facilities.

USB2.0 Simply Plug and Play
USB plug-and-play connectivity makes USB10X a breeze to deploy and use. Simply connect USB10X to the computer or your laptop through USB, and you’re good to go! With no need for device drivers.
Note: Compatible with Windows 7 | Windows8 | Windows10 | Mac osx | Linux

1080P HD Image Quality + 10X Optical Zoom
Realize a Life-like Video Experience
The high resolution 1080P, outstanding color reproduction and 10X zoom delivers premium optics and life-like video to create the experience of sitting together in the same room, even if you are a thousand miles away. USB10X is obviously a smart choice.

Auto Focus, Smart Frame Capture Everyone
Take close-ups on characters, details, and there is no need to worry about blurring your image when you're speaking choice.

Accurate, Smooth and Silent PTZ Movement

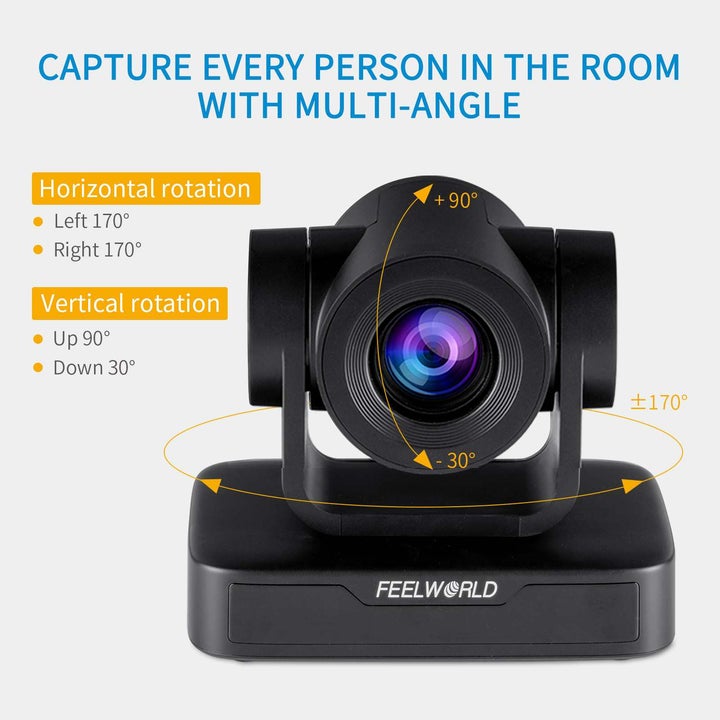

Capture every person in the room with multi-angle
Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 120° vertically (-30°～+90°).

Up to 255 Preset Positions
The secret to more productive meetings
10 preset positions by IR remote controller，that can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via VISCA

Designed for compatibility with video conferencing applications
The USB10X works with most video conference applicatons, such as Zoom, Micro Lync, Skype for Business, ect. Convenient for you to make a video conference with your team anywhere and it can also help you to achieve customers with a face to face full HD video conference.

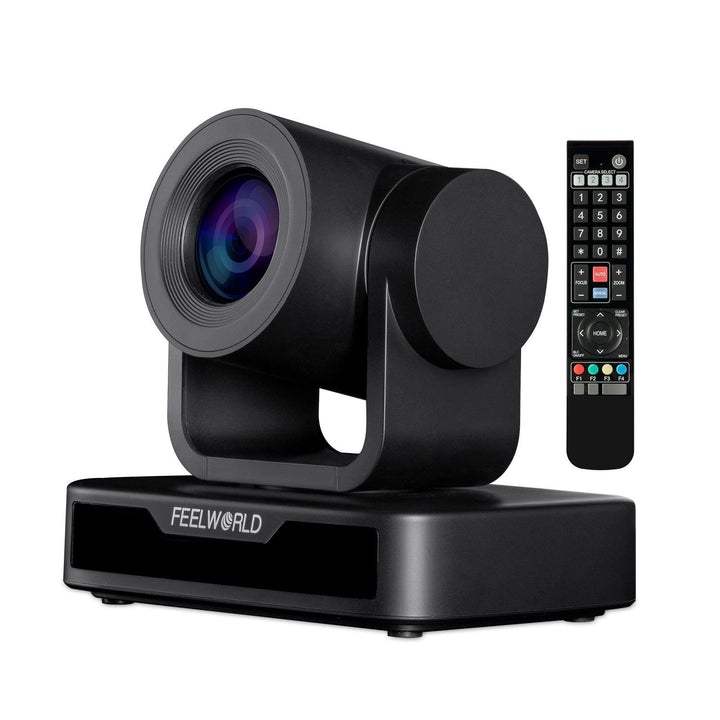

IR Remote Control
Operate Nearby or Far Away
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. Plus, you can also operate it by VISCA Pelco D/P controller keyboard.

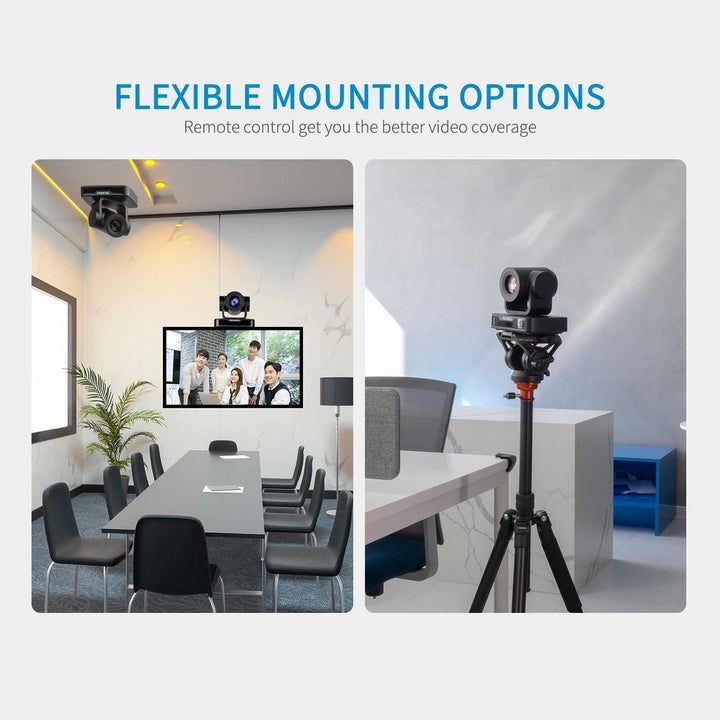

Multiple Mounting Options
Included mounting hardware screw hole and standard tripod thread at the bottom of USB10X , get you the best video coverage.

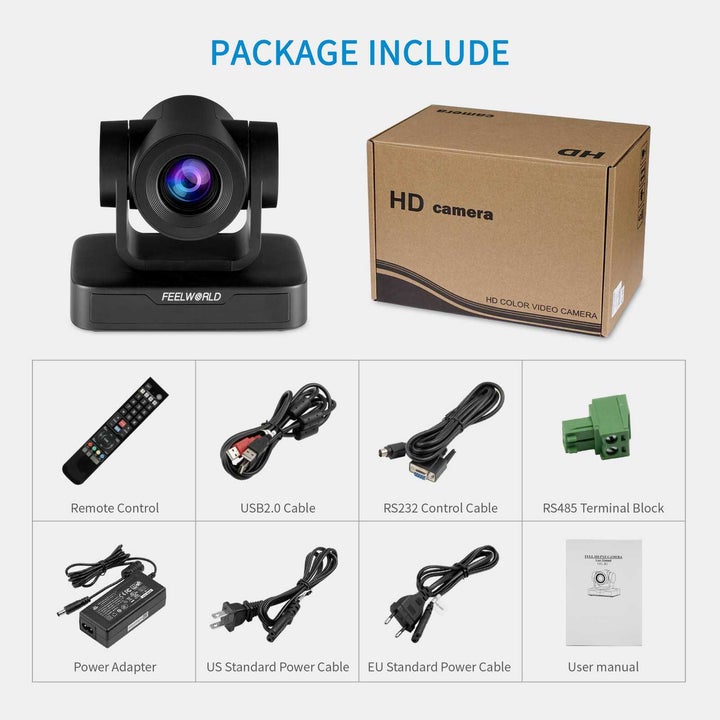

ACCESSORIES

1× Video Camera
1× Remote Control
1× USB2.0 Cable
1× RS232 Control Cable
1× RS485 Terminal Block
1× Power Adapter
1× EU Standard Power Cable
1× US Standard Power Cable
1× Manual

FEATURES

* 10X optical zoom professional conferencing camera for business meetings, you’ll feel like you’re face-to-face in the same room.
* USB2.0 video out, plug and play, anyone can easily setup and control
* Support 1080p@30fps, realize a life-like video experience
* Auto focus, smart frame capture everyone
* 70°wide viewing angle, ideal for various meetings
* Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
* High speed and silent pan/tilt, capture all the actions
* Supports up to 255 presets (10 presets for IR remote control)
* Multiple Control Protocol and interfaces
* Low-power sleep function
* Ideal for video conference, live streaming, medical seminar, online education, ect.

SPECIFICATIONS

Camera Parameters
 Model     USB10X
 Sensor     1/2.9 inch high quality CMOS sensor
 Effective Pixels     2.07 megapixel, 16：9
 Video Format     1920×1080P@30 fps/25fps；1280×720P@30fps/25fps；1024×576P@30fps/25fps；960×540P@30fps/25fps；800×448P@30fps/25fps；640×360P@30fps/25fps；320×176P@30fps/25fps,etc
 View Angle     8.8°～ 70°
 Focus Length     f=4.34mm～41.66mm
 AV     F1.85 – F2.43
 Optical Zoom     10X
 Minimum Illumination     0.5 lux （F1.8, AGC ON）
 DNR     2D & 3D
 White Balance     Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
 Focus     Auto / Manual/ One Push Focus
 Exposure     Auto / Manual
 BLC     On/Off
 Video Adjustment     Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
 SNR     >55dB

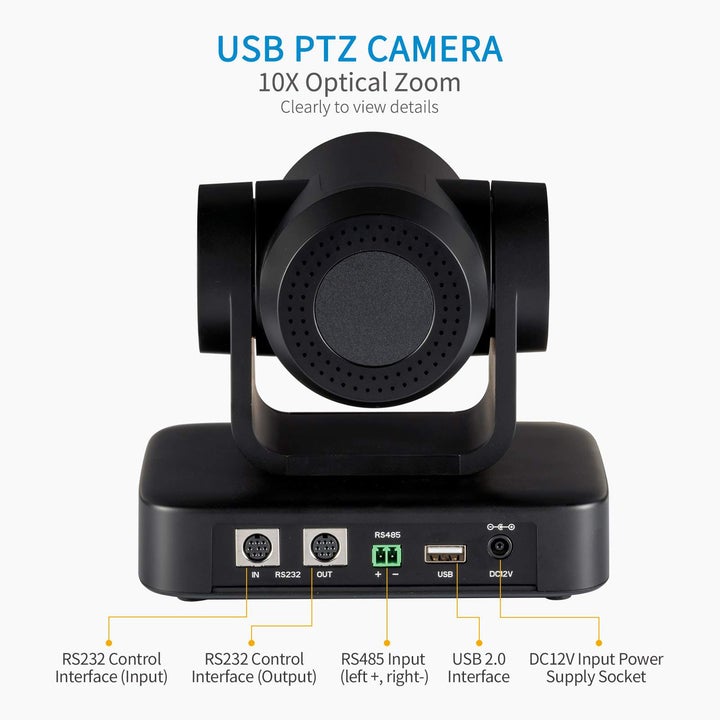

Input/output Interface
 Video Output     USB2.0, A Type Interface
 Video Compression Format     MJPG, H.264, H.265
 Control Interface     RS232 (IN/OUT), RS485
 Control Protocol     VISCA/Pelco-D/Pelco-P
 Power Interface     HEC3800 outlet (DC12V)


USB Feature
 Operation Systems     Windows 7, Windows8, Windows10, Mac osx, Linux, etc
 Video Compression Format     MJPG, H.264, H.265
 USB Communication Protocol     UVC


PTZ Parameters
 Pan Rotation     -170°～+170°
 Tilt Rotation     -30°～+90°
 Pan Control Speed     0.1 ～60°/sec
 Tilt Control Speed     0.1～30°/sec
 Preset Speed     Pan: 60°/sec, Tilt: 30°/sec
 Preset Number     255 presets (10 presets via remote control)


Other Parameters
 Input Voltage     12V/0.5A
 Power Consumption     Maximum: 2.5W
 Stored Temperature     -40℃～+70℃
 Storage Humidity     20%～90%
 Working Temperature     -10℃～+50℃
 Working Humidity     20%～80%
 Dimension (W*H*D)     156.8mm×112.6mm×139.5mm
 Unit Weight     1kg
