Диоден панел SWIT PL-S300H 300W Hard Bi-color - 2x1 безшумен

›  280pcs high power long-life SMD LEDs

›  45° lens on each LED, intense hard light

›  2x1' size, 300W, 47000Lux @1m ultra bright

›  No fans, no noise

›  Linear, Log, Exponential, S- dimming curves

›  2700K-6500K continuously adjustable

›  Color rendering CRI 96, TLCI 99, SSI(D55)75

›  DMX512 controlled color and dimmer

›  LCD display color and dimmer value

›  PowerCON True1 AC in and loop out

›  3-pin XLR DC 48V in

›  4-leaf metal barn doors and Yoke bracket

›  Optional Honeycomb/Softbox/Pole-operated Yoke

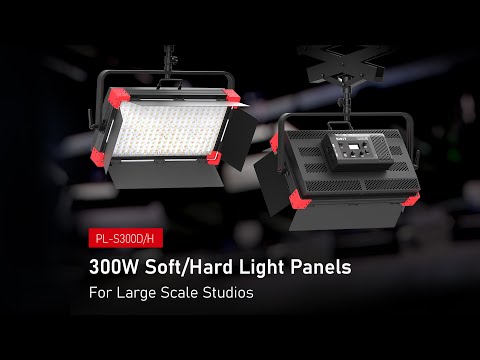

300W Hard Ultra Bright Studio Panel

PL-S300H is a 300W 2:1 Bi-color LED light, with dedicated 45° lens on each high power SMD LED, extremely high output to 4,7000Lux @ 1m, specifically for large scale broadcast studios, film sets, and event stage lighting.

Dedicated Fly-Eye and Scale Surface 45° Lens

SWIT unique compound optical structure on each LED, with fly-eye and 45° reflector, to enhance the diffusion effect of the lens, reducing color aberrations such as macular degeneration. 45° half-peak beam angle is specifically designed for studio installation, balancing high illuminance and uniformity of the light spot.

47,000Lux @ 1m Extremely High Bright

The 300W hard light produces extremely high illuminace of 47,000Lux @1m, 45° half-peak, applied for head light, key light, and background light in large-scale studios, conference hall, etc.

No Fan, No Noise

With SWIT's unique heat dissipation design, this high-power studio light utilizes passive cooling structure, can be full-power operated without the need for fans, ensuring zero noise in the studio environment.

2700K-6500K Continuously Adjustment

PL-S300H consists of 300W 2700K LEDs and 300W 6500K LEDs, and can be continuously adjusted between 2700K and 6500K, and output 300W power at any color temperature.

Accurate Color Render

CRI 96; TLCI 99; SSI(D55) 75

These high color rendering indexes ensure that objects illuminated by the light retain their true colors, both to the human eye and in camera lenses.

Dimming Curves Selection

PL-S300H offers 4 dimming curves: linear, exponential, logarithmic, and S-curve for selection, enabling precise and smooth dimming control.

DMX, AC / DC Interfaces

PL-S300H provides 5-pin XLR DMX512 in & out, and supports USB-A 5V out to power wireless DMX receiver. The light provides PowerCON True1 AC in and loop out for serial connection in the studio project, and also support 3-pin XLR DC48V power input for field application.

LCD Display and Menu Operation

Accessing the menu allows users to separately set the DMX addresses for dimmer and color temperature, select and configure lighting effects, choose dimming curves, and support system reset, USB firmware upgrades, and more.
